Sanitary Welded Butterfly Valve

Sanitary Butterfly Valves mostly apply to piping systems for control or shutoff flow. They can operate both automatically and manually. They act as the best choice for the on/off valves for various sanitary industries
Unit Price:
Availability:
Quantity:
  • BUV01

  • SUNTHAI

  • SS304/SS316L

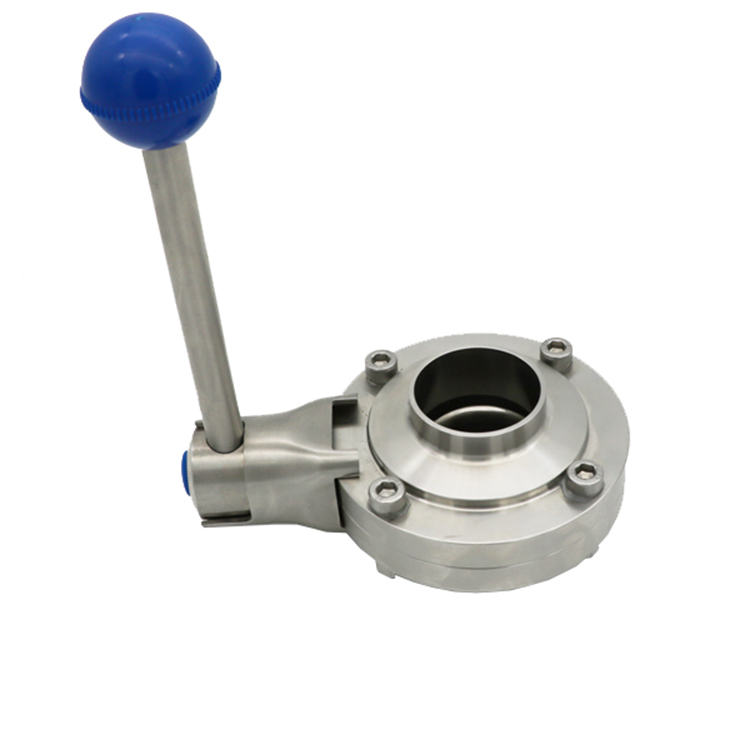

Sanitary Manual Welded Butterfly Valve with stainless steel pulling rod handle

The manual butterfly valves are featured in low cost, easy maintenance, and simple structure. They are good choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical,Chemical industries

Size : 1/2″ – 10″
Body Materials: Stainless Steel 304 or 316L/1.4301,1.4404
Seat Materials: Silicone ,EPDM,VITON,NBR
Max.pressure:10 bar (DN-25/100),8 bar (DN-125/150)
Min.pressure:0.2 bar
Operating temperature:-10℃ to–120℃ (EPDM)
Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other

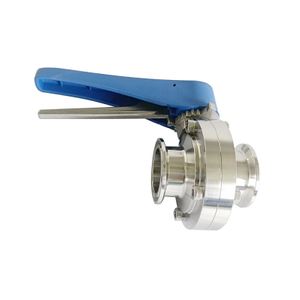

Handles types
Pulling Handle – 2/3/4 position
Square Pull Handle – 2/3/4 position
Multi-position Plastic Handle – Adjustment 15°  12 position
Stainless Steel triggle Handle – Adjustment 15°  12 position
butterfly valves handle type

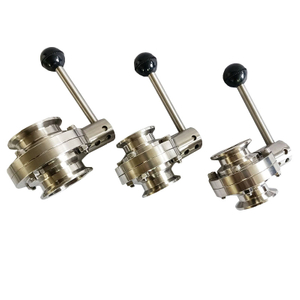

Configurations of connection ends
Valve body can be interchangeable with any type of connection
sanitary butterfly valve connection ends
*For more information of food grade stainless steel butterfly valve, please feel free to contact us.
