Sanitary Rotary Cleaner 360Degree Spray Nozzle

Female Thread Tank Cleaning Heads 360° Inject CIP Spray Balls can meet hygienic standards.They are widely demanded in the brewing and beverage,dairy, food, pharmaceutical,fine chemical and personal & health care industries.It provides exceptional cleanability, better end-product quality,
Unit Price:
Availability:
Quantity:
  • SPB05

  • SUNTHAI

  • SS304/SS316

Sanitary Rotary Cleaner 360Degree Spray Nozzle

Features:
Size: 1″-2″
Connections:Welded,bolted with pin,clamped,threaded(NPT,BSP)
SS grade:SS304, SS316L
Mirror Polished inside and Satin finished outside to meet food requirements
Norms:DIN,SMS,3A,ISO
Working pressure:1.5-3Bar
Max.working temperature:95℃
Max.ambient temperature:140℃
Moist radius:max.5meter
Inject cleaning radius:max.effective radius 4M


We have three series of Sanitary Stainless Steel Cleaning Balls:
1.Static tank CIP cleaning ball: 360 degree spray completely, 180 degree,90 Deg upside or downside,the head can be round or flat
2.Rotary Spray head: the ball head shape can be sphere and elliptical.
3.Rotary cleaner: multi-position spray type. When working, it’s rotating jet spray.


Working method of the spray balls:
◎The liquid applied to the upper part of the tank is running down the tank walls like a falling film.
◎The dirt particles dissolved by the detergent are rinsed off by the falling film.
◎Cleaning pre-pressure is between 1,0 – 1,5 bar at the spray ball for tanks without internal installations.
◎Cleaning pre-pressure is between 1,8 – 2,5 bar at the spray ball for tanks with internal installations.

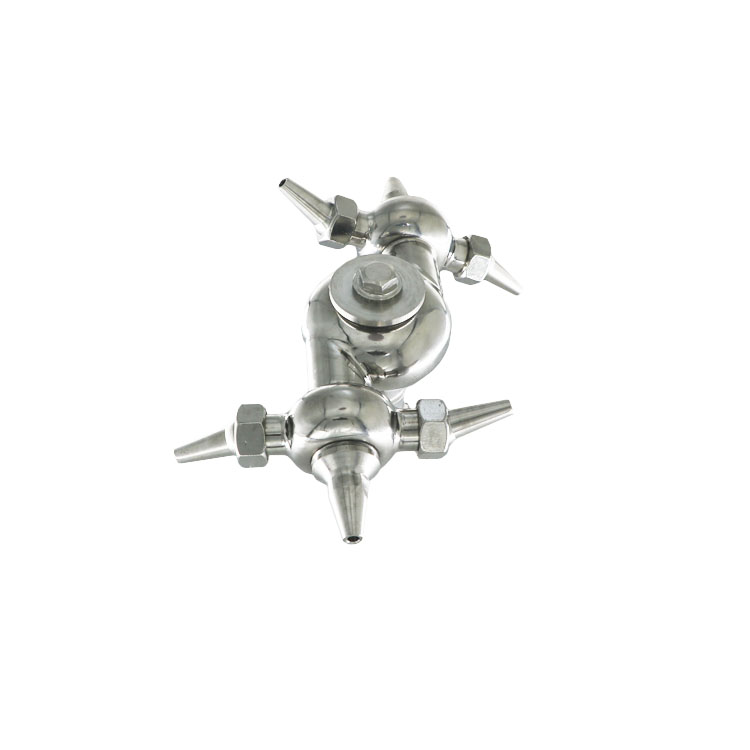

rotating cleaner with nut connection

rotating cleaner with nut connection

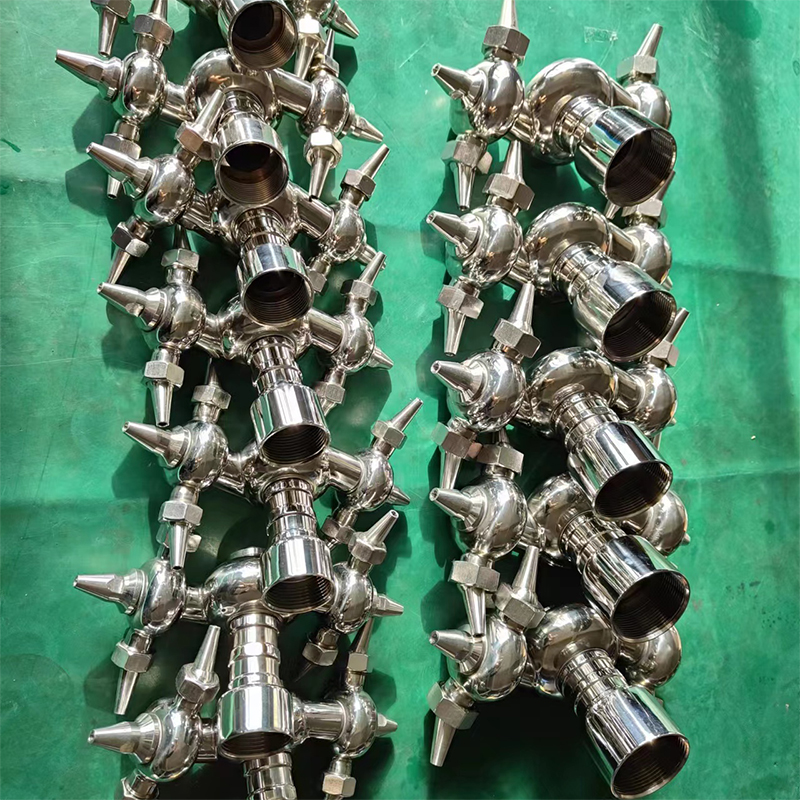

rotary tank cleaning ballrotating CIP cleaning
