Hygienic Manual Butterfly Valves With Union Nut DIN RJT SMS

Quantity:
  • BUV011
  • SUNTHAI
  • SS304/SS316L

Hygienic Manual Butterfly Valves With Union Nut DIN RJT SMS-The manual butterfly valves feature in low cost, easy maintenance, and simple structure. They are good choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical,Chemical industries

Size : 1/2″ – 10″
Body Materials: Stainless Steel 304 or 316L/1.4301,1.4404
Seat Materials: Silicone ,EPDM,VITON,NBR
Max.pressure:10 bar (DN-25/100),8 bar (DN-125/150)
Min.pressure:0.2 bar
Operating temperature:-10℃ to–120℃ (EPDM)
Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other
Handles types-Fast action on flow control when valve is opened by 15 to 70 degrees
Pulling Handle – 2/3/4 position
Square Pull Handle – 2/3/4 position
Multi-position Plastic Handle – Adjustment 15°  12 position
Stainless Steel triggle Handle – Adjustment 15°  12 position
butterfly valves handle type

Configurations of connection ends
Valve body can be interchangeable with any type of connection
sanitary butterfly valve connection ends

The series of butterfly valve:Welded butterfly valve,clamped butterfly valve,threaded butterfly valve,weld/threaded butterfly valves,flanged butterfly valves,wafer butterfly valves,powder butterfly valve.Pneumatic butterfly valves.

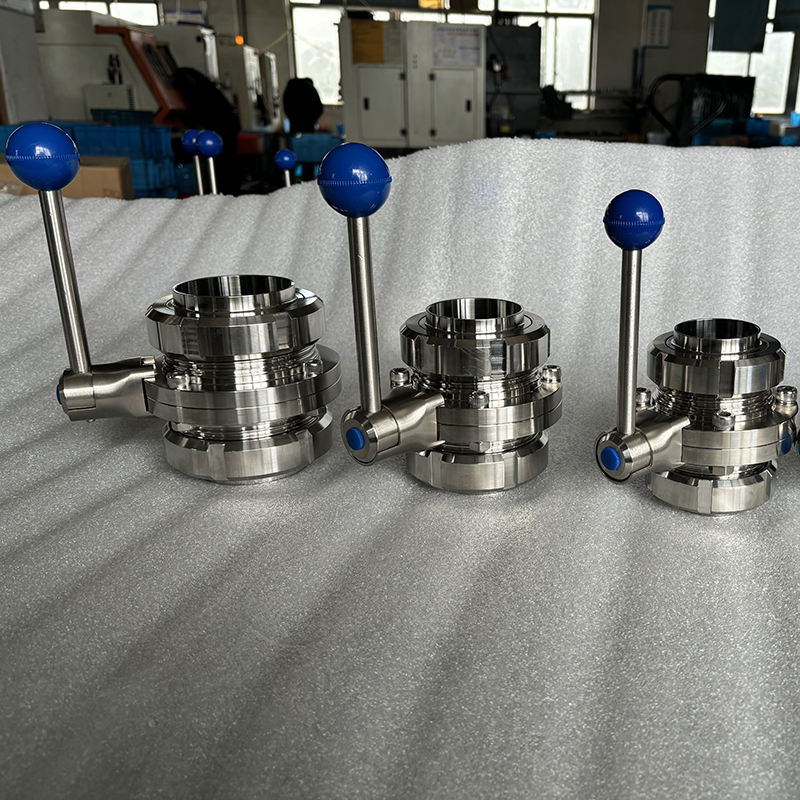

union type butterfly valves

union type butterfly valve

Our quality preople perform strict mechanical property test and sealing test on each valve
