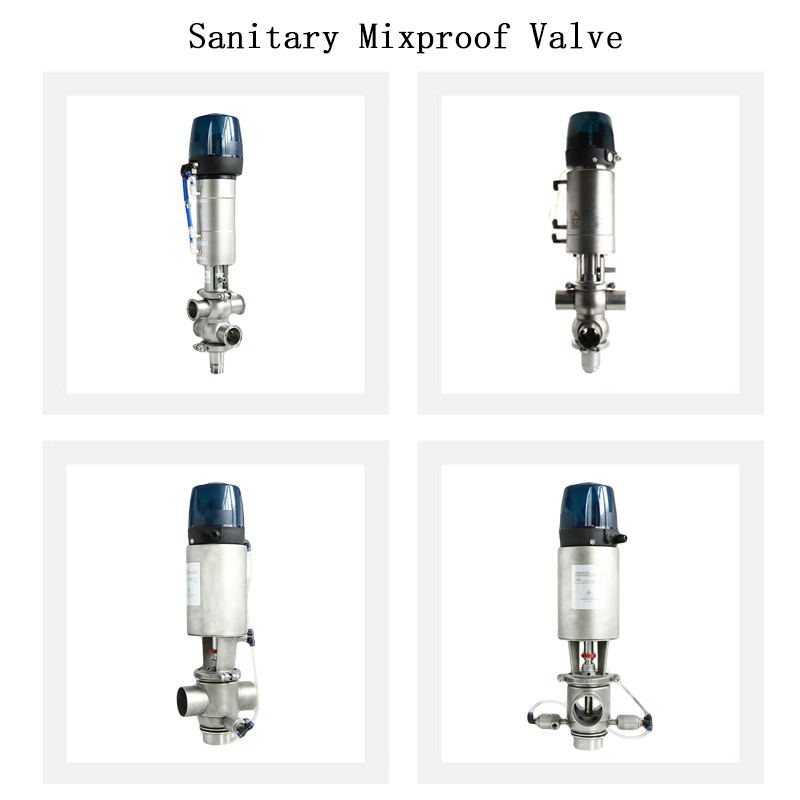

Sanitary Double Seat Mixproof Valve with Control Top

Quantity:

Sanitary Double Seat Mixproof Valve with Control Top with a top-loaded design,which makes fast and easy maitenance. It also features no adjustable components, a maitenance-friendly actuator and built-in leakage detection on all seals. Mixproof valves meet most hygienic standards and can be supplied with optional cleaning system.

Operating principle:
Sanitary double seat mix-proof valves are controlled by means of compressed air. It can be equipped with intelligent control head, which can carry out remote control and real-time monitoring. And positioner sensor are optional.
The mixingproof valve has two independent plug seals, forming a leakage chamber between them under atmospheric pressure during ordinary working condition. In case of accident or leakage, the valve will flow into the leakage chamber and discharge through the leakage outlet. This will not cause contamination or mixing.
When the valve is open, the leakage chamber is closed. The valve can flow from one pipe to another. The valve can be cleaned by CIP system.
Features:
Size:1″-4″/DN25-DN100
Sanitary Double Seat Mixproof Valve with Control Top body &plug are made from precision casting
Stainless steel parts: AISI304/SS316L
FDA approved gaskets in silicone, EPDM, viton
Norms:DIN,SMS,3A,ISO
End ports: butt welded,Tri clamped,threaded
Inner surface finish is Ra≤0.6μm to meet the requirement of food industries
Max. Pressure:8bar
Switches position sensors are optional
C top control unit is also optional
Standard series:24V/DC,110-220V/AC
Actuator span life:more than 500 thousands times
Seal span life:more than 100 thousands times
Seat valve bodies
Seat valve bodies

SUNTHAI MIXING PROOF DOUBLE SEAT VALVE WITH CIP CLEANING

SUNTHAI MIXING PROOF DOUBLE SEAT VALVE WITH CIP CLEANING

Advantages:
Simple to change the structure and low maintenance cost
Cost-efficient leakage protection
Flexible valve body combinations
Ultimate in easy cleaning, low maintenance design
Low spare part cost
The valve is compact, durable and easy to operate

Sanitary Double Seat Mixproof Valve with Control Top is widely used for food, beverage, water, dairy, pharmacy, chemical, pharmaceutical industry, etc
Sunthai also manufacture flow divertion valves</span>,sanitary butterfly valve, sanitary ball valve, sanitary diaphragm valve, sanitary regulating control valve,Tank bottom valves, pressure reducing valve.Please contact us to get the latest products specifications
