Sanitary Manual 3 way Clamped Divert Seat Valve

Sanitary Manual Single Seat Valve is a manually operated valves for shut off, tank outlet or straightforward regulating or dosing purposes that require small, relatively simple valves with many different options and features
Unit Price:
Availability:
Quantity:
  • SUNTHAI

  • SS304/SS316L

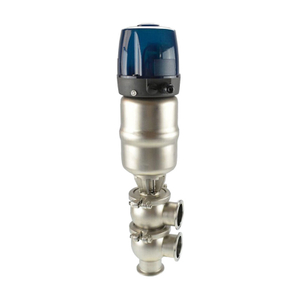

Sanitary Manual 3 way Clamped Divert Seat Valve


Sanitary Manual 3 way Clamped Divert Seat Valve, widely used for food, beverage, water, dairy, pharmacy, chemical, pharmaceutical industry, etc.


Features:
Size:1″-4″/DN25-DN100
Flow diversion valve body &plug are made from precision casting
Stainless steel parts: AISI304/SS316L
FDA approved gaskets in silicone, EPDM, viton, PTFE
Norms:DIN,SMS,3A,ISO
End ports: butt welded,Tri clamped,threaded
Inner surface finish is Ra≤0.6μm to meet the requirement of food industries
Max. Pressure:8bar
Switches position sensors are optional
C top control unit is also optional
Standard series:24V/DC,110-220V/AC
Actuator span life:more than 500 thousands times
Seal span life:more than 100 thousands times
Normally closed valve is the default version.Normally closed and normally open are interchangeable by rotating the pneumatic cylinder 180°.


single seat valve body configuration

single seat valve body configuration

divert seat valve flow divertion


Advantages:
Simple to change the structure and low maintenance cost
Cost-efficient leakage protection
Flexible valve body combinations
Ultimate in easy cleaning, low maintenance design
Low spare part cost
The valve is compact, durable and easy to operate

Sunthai also manufacture manual flow divertion valves,sanitary butterfly valve, sanitary ball valve, sanitary diaphragm valve, sanitary regulating control valve,Tank bottom valves, pressure reducing valve.Please contact us to get the latest products specifications
