Sanitary Stainless Steel Automatic Air Release Valve

sanitary air relief valve is used to relieve pressure as the fluid level in your tank changes. It is installed vertically on the top of a pipeline or container, or before the inlet of a pump, where air releasing is required.
Unit Price:
Availability:
Quantity:
  • ARV01

  • SUNTHAI

  • SS304/SS316L

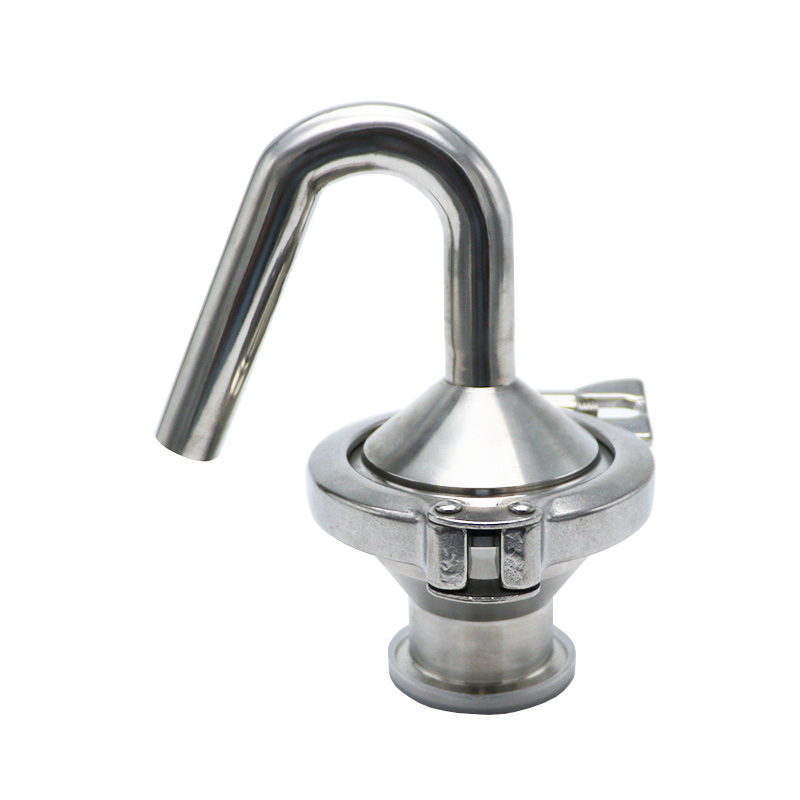

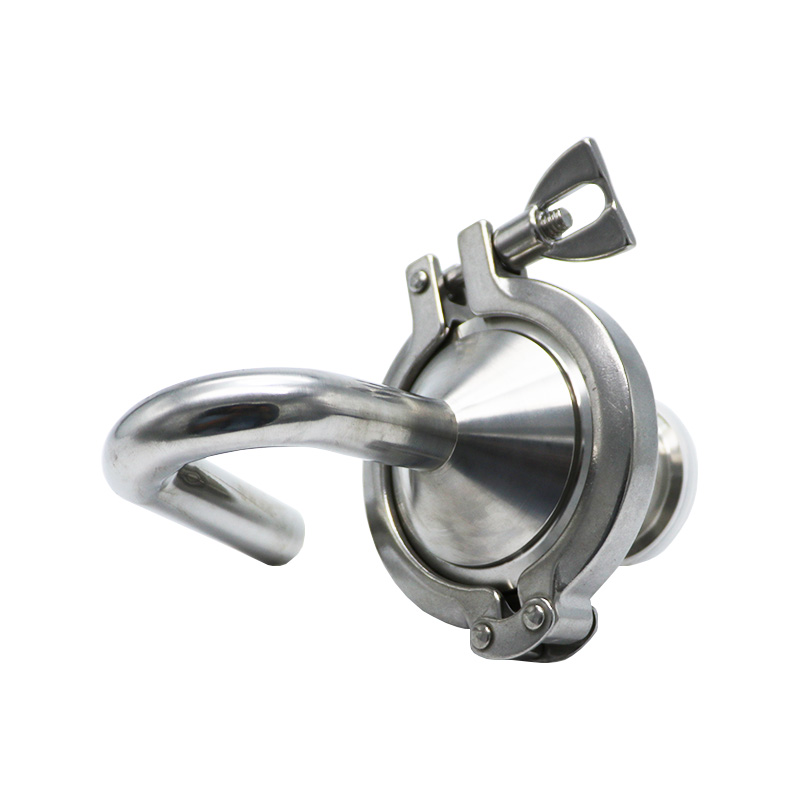

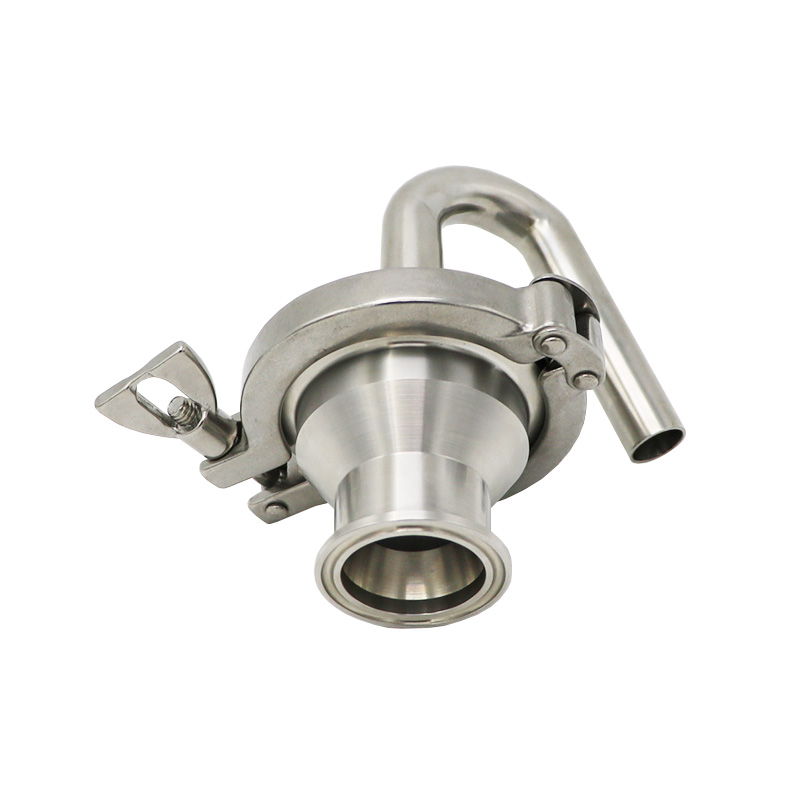

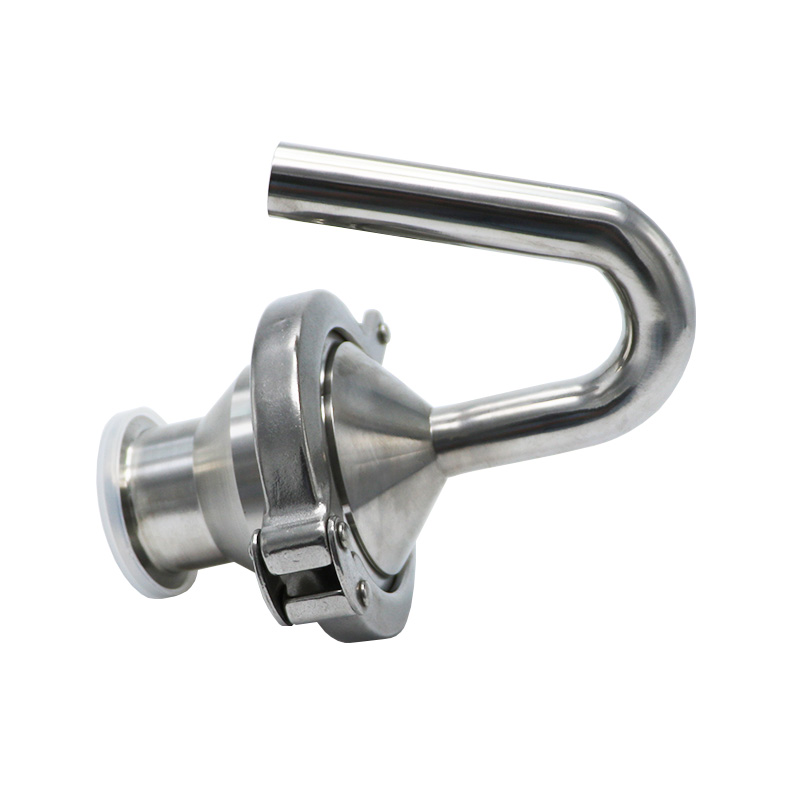

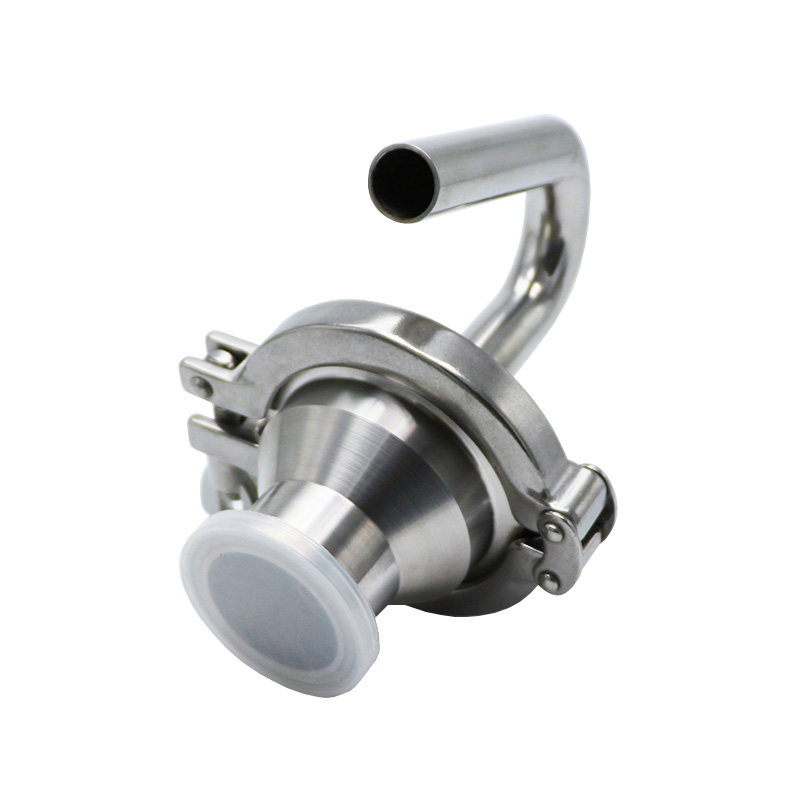

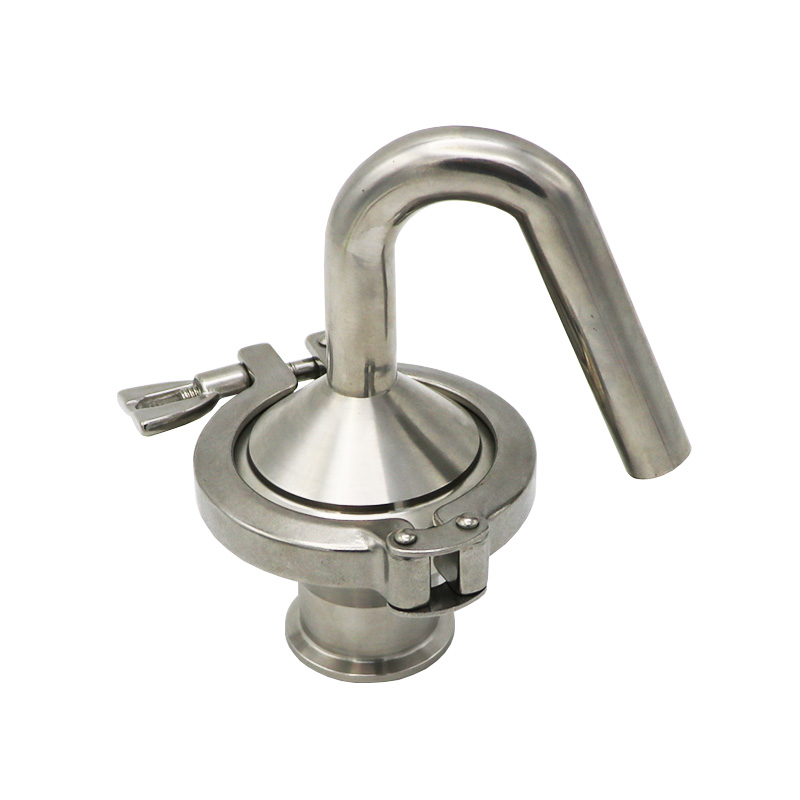

Sanitary Stainless Steel Automatic Air Release Valve

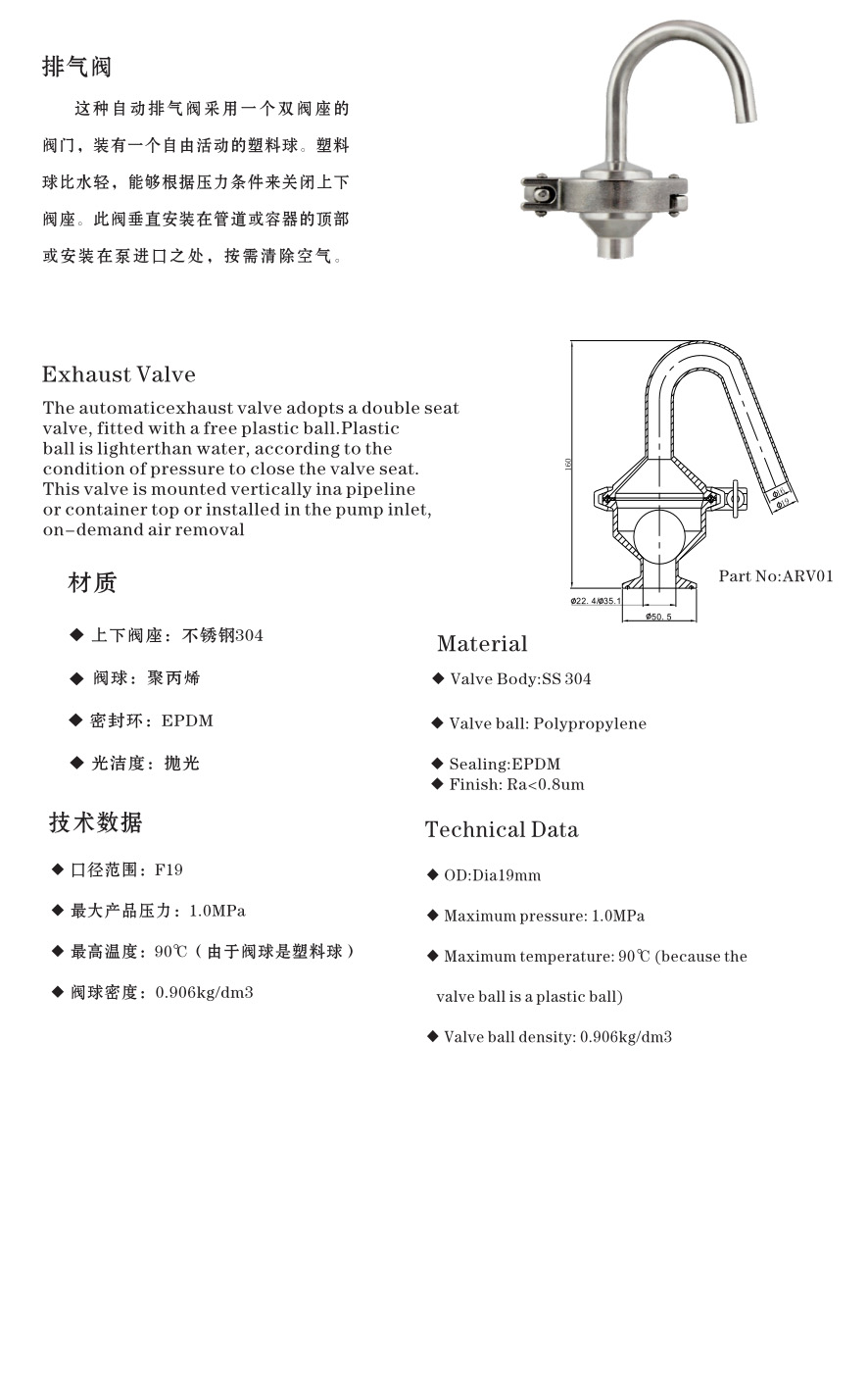

Sanitary Stainless Steel Automatic Air Release Valve is a double seat valve,with a plastic(Polypropylene) ball moving freely up and down.The ball is lighter than water,it can shut off the upper and bottom valve seat according to pressure.

Wenzhou SUNTHAI Valve Co., Ltd. specializes in producing various of valves for beer fermentation tanks,such as sanitary safety valves,Air release Valve,Pressure overflow valves,rebreathing valve,Exhaust valve,Sampling valves,Vent valve,Vacuume valve and other high precision valves.
Features:
Size: 1"-1.5", DN25-DN40
Wetted Stainless Steel part are in SS304/SS316
Connection: clamped
Norms: DIN,SMS.3A.ISO,RJT
Material of gasket: EPDM,NBR FPM.
Installation:supposed to be installed vertically
Max medium pressure: 10Bar(145psi)
Max temperature: 90℃

sanitary air relief valve
