Sanitary Stainless Steel Manual Threaded Sample Valve

Unit Price:
Availability:
Quantity:
  • SUNTHAI

  • Stainless Steel

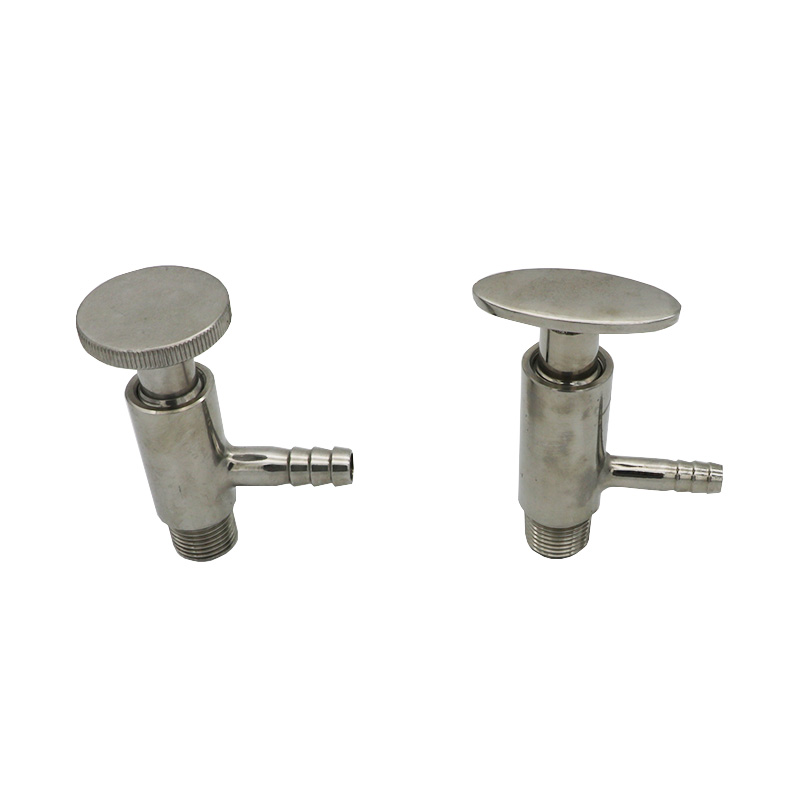

Sanitary Stainless Steel Manual Threaded Sample Valve

Sanitary Stainless Steel Sampling Cock Valves are used to take samples from sanitary process system for the food,dairy and beverages industries.They can be assembled at the bottom of tank or pipeline to discharge remains.


Working Principle:
When turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for

sampling. When turn the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the
valve is closed.


Features:
Connections: thread(BSP/NPT), clamped, weld
Size: 3/8″,3/4″, 1/2″,1″,1 1/2″
Max. Pressure: 10Bar( 145psi)
Min. Pressure: vacuum
Temperature: -10℃ to 120℃ /14°F to 248°F
Body material: AISI304/316L
O ring:Silicone,EPDM with FDA 177.2600
Gasket:VITON.PTFE
Operating: manual or pneumatic
Internal surface finish: Ra 0.4μm

Advantages:
Sanitary Stainless Steel Manual Threaded Sample Valve is self-draining in many positions where normal valves are not. It can even be installed upside down!
Clamp connection between body and head: No problem with threads and neutral valve position where preferred.
Sanitary Stainless Steel Manual Threaded Sample Valve is designed for extracting medium viscosity medium.These valves are mostly used for products at 0-1,000cP in viscosity.

Packaging: Individually packed with bubble plastic bag or wrapped,then in carton,finally with plywood case or pallet
Delivery Port: Shanghai Port or Ningbo Port.
Shipment Terms: FOB, CFR, CIF, EX-WORKS
Minimum Order: 1Set
Delivery Lead Time: 7 days after order is comfirmed.
Export Market: European,North America.Latin America, Southeast Asia, MID East,etc

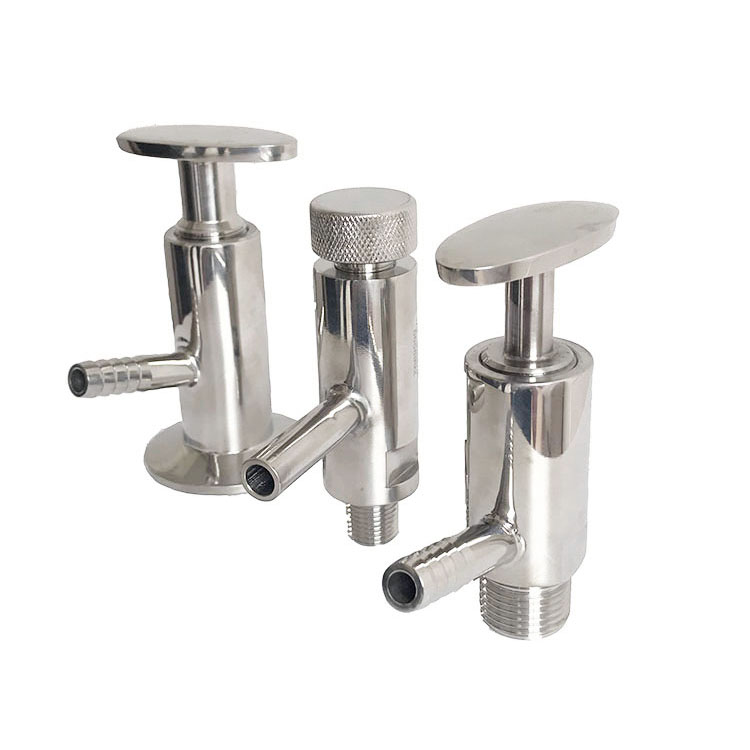

Sunthai’s sampling valves series: Manual clamp sample cock,Threaded sample valve.yogurt sampling valve,hygienic pneumatic aseptic sampling cock valve

sanitary asceptic sampling valves

sanitary asceptic sampling valves
