Sunthai
Stainless Steel

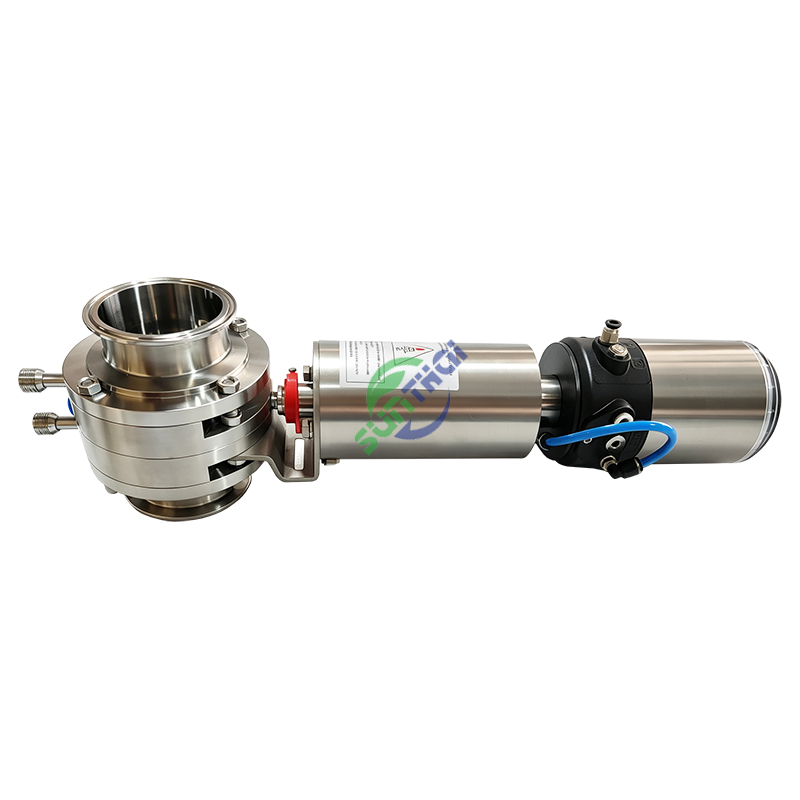

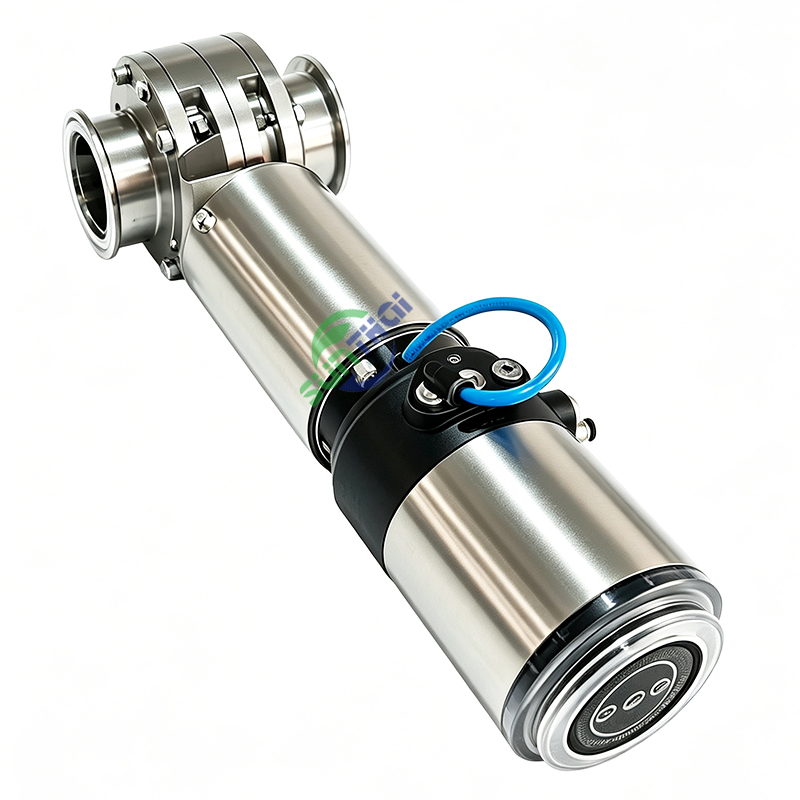

ASI-bus Intelligent Control Top Mixproof Butterfly Valve
Body Material | SS304 or SS316L |
Size | 1 1/2"-4", DN40-DN100 |
Max Pressure | 145psi, 10bar |
Temperature | -20 to 130℃ |
Gasket | EPDM, Silicon, FKM, PTFE, NBR |
Operation | Pneumatic actuator, C Top |
Surface Treatment | Ra<0.8μm |
Connection | Tri-Clamp, Butt-Weld, Thread |
Our intelligent single seat mixproof butterfly valve solves the following problems.
Product & CIP cleaning fluid mixing, Risk of product batch scrapping and recalls
Inability to remotely verify valve status; manual inspection is time-consuming and labor-intensive
Valve contains dead zones, resulting in incomplete cleaning
Application
Dairy & Milk Processing
Beverage & Juice Production
Pharmaceutical & Biotech
Cosmetic

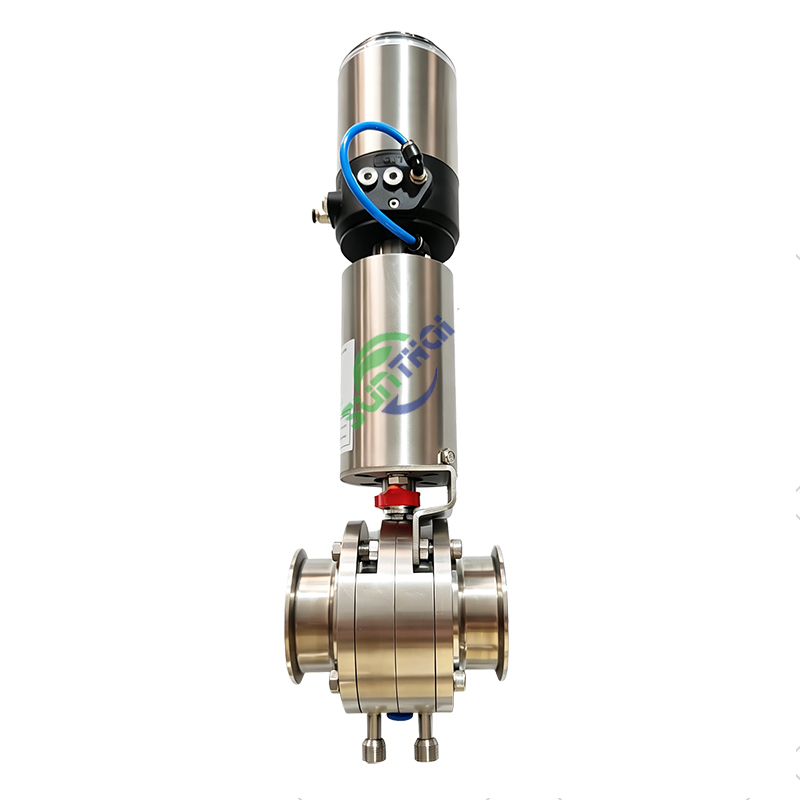

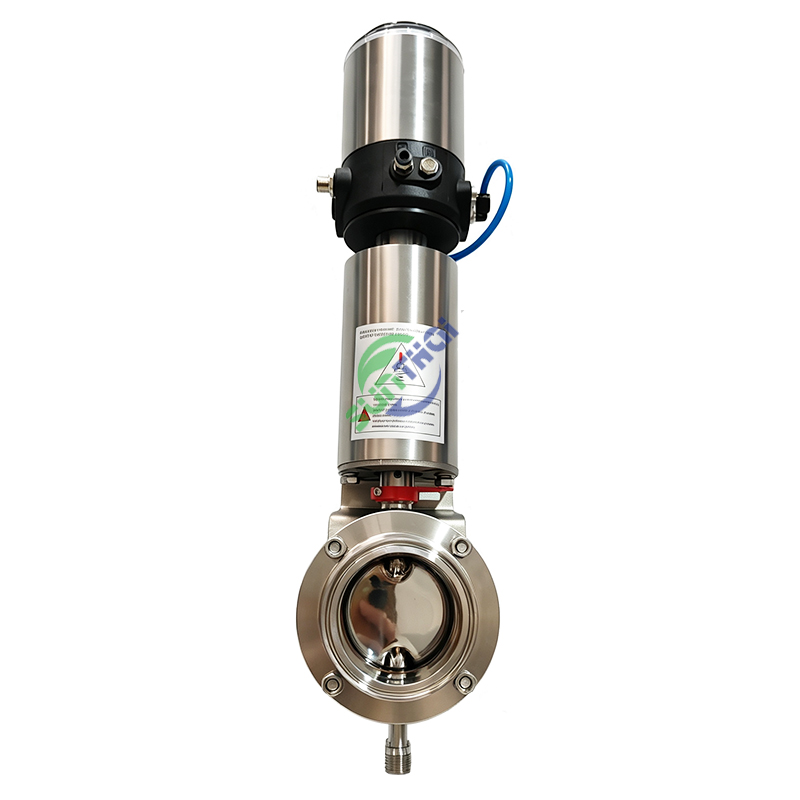

Hygienic Leakage butterfly valves Feature:
Sanitary stainless steel: Available in 304 or 316L; polished surface finish (Ra); designed with no dead zones.
CNC one-time machining ensures machining precision
Interchangeable of the manual handle and pneumatic actuator
Sanitary surface finish, available with BPE standard Ra < 0.4µm
