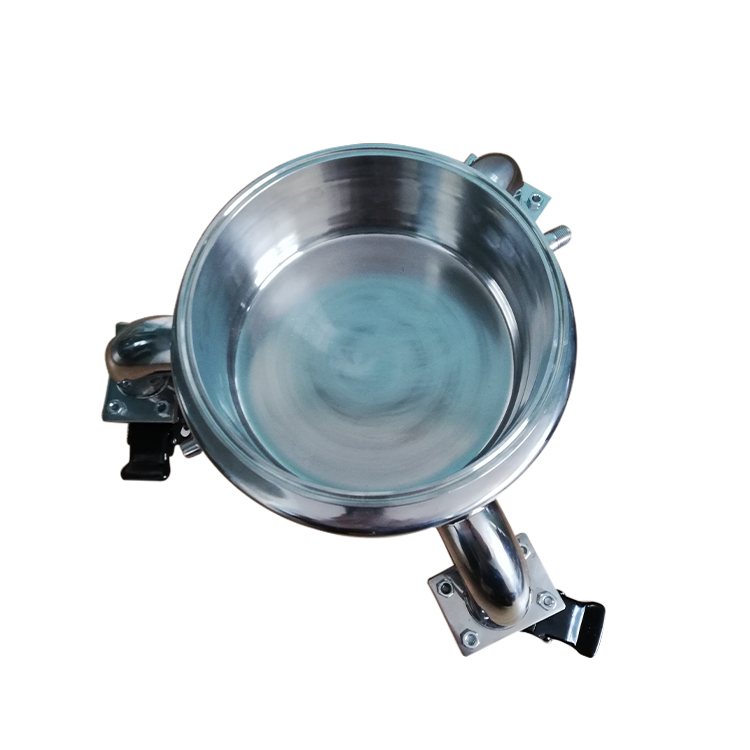

Movable Jacketed Collection Base

12" Jacketed Collection Base With Wheel Caster,easily move

Quantity:


Fully Jacketed splatter platters with movable caster are a huge step up from normal splatter platters by providing the user a more efficient recovery of their solvent without having to move or lift the extractor into a hot water bath. These jacketed splatter platters allow the circulation of water through the outer jacket through two offset ports on each side of the splatter platter.

Stainless steel SS304
Polish High Mirror Polish
Common Base Diameter 8",10",12"
Depth 2"-6"
Connection type Tri clamp(High pressure clamps and Viton Gasket are recommended)
Port FNPT/MNPT.1/4",3/8",1/2"

Options:

Jacket,non jacketed

Handles for easy carrying

With wheel-caster for big platter

Round base or flat bottom base

3/8" MNPT or 1/2” or 1/4" port on outer jacketed Section

With  Spout on bottom

Wall thickness:3mm,5mm

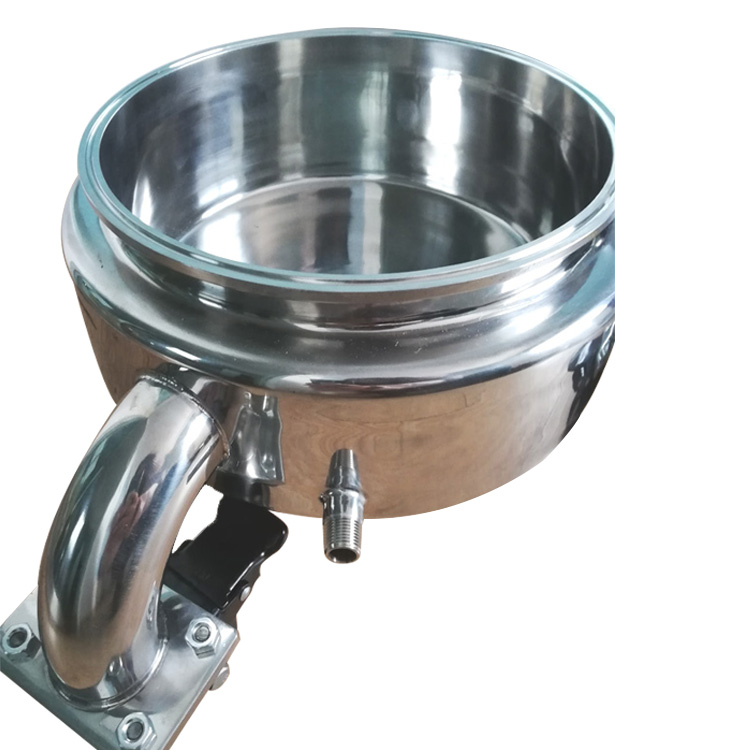

Wheel Caster System
