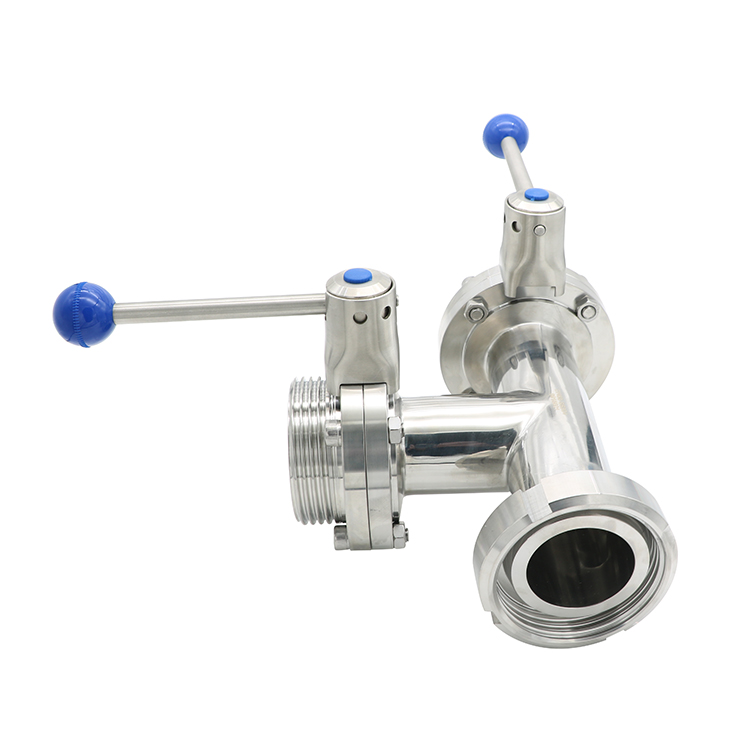

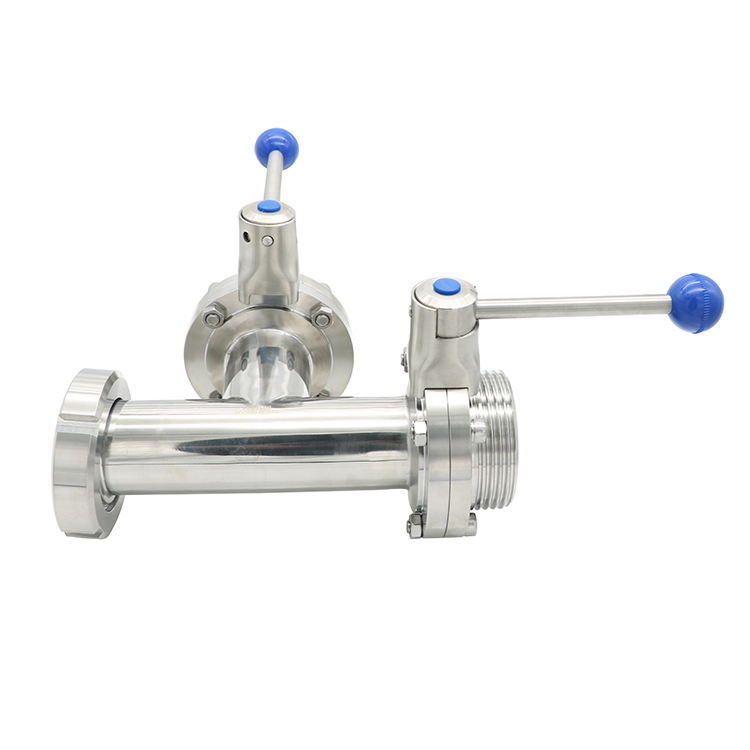

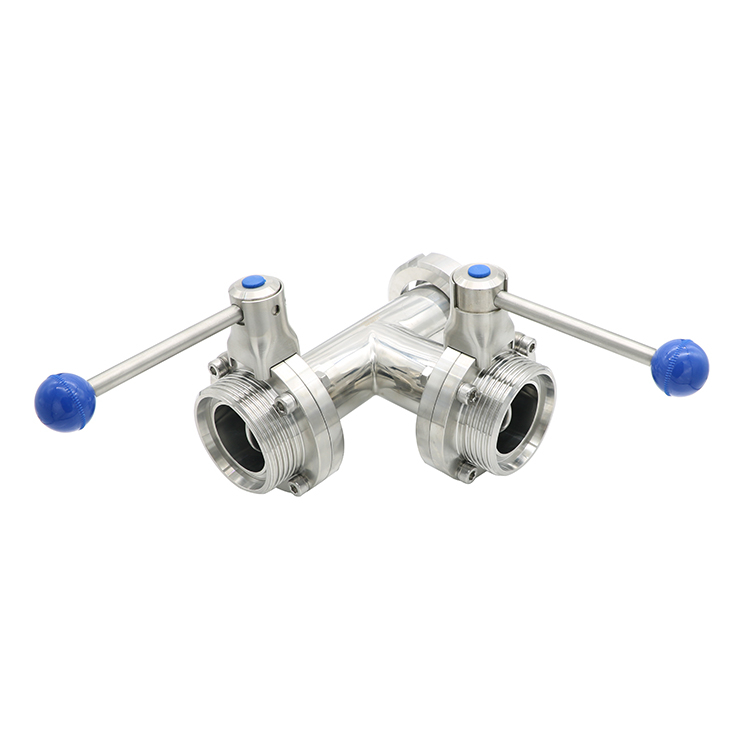

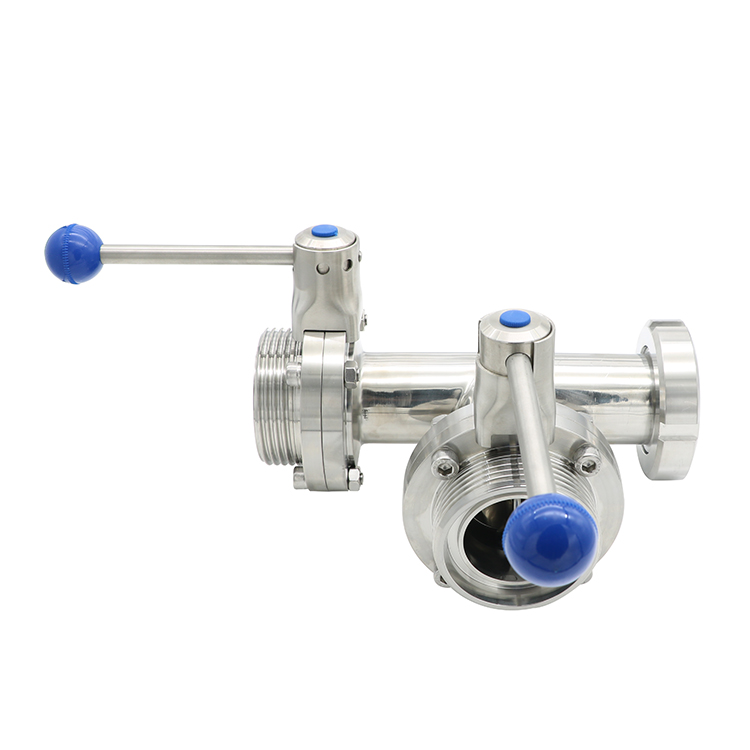

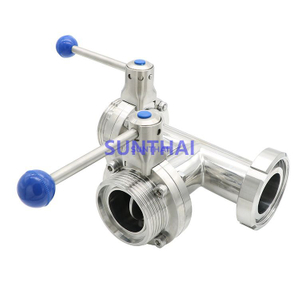

Sanitary Threaded 3 Way Butterfly Valves with Linkage Level

This is a sanitary stainless steel threaded 3 way butterfly valves with linkage level.
Quantity:
  • Sunthai
  • Stainless Steel304/316L

Sanitary Stainless Steel Threaded 3 Way Butterfly Valves with Linkage Level


Application Food & Beverage & Chemicals & Pharma
Body material SS304/SS316L
Standard 3A/SMS.DIN/ISO/IDF
Size 1"-4"/DN25-DN100
Seat Materials Silicone, EPDM, FKM, NBR
Max.pressure 10 bar (DN-25/100), 8 bar (DN-125/150)
Operating temperature -10℃ to –120℃ (EPDM)

Our catalog and samples can be supplied.

As for operation, there are manual and pneumatic two types.

And there are four types of handles, which is pulling handle, plastic multi-position trigger handle, plastic multi-position handle, and stainless steel multi-position handle.  Handles can be exchangeable with each other, so as the connections.

handle-types-manual-butterfly-valve

The connections in the picture below are available:

20140925160836_0781

This linkage 3-way butterfly valve is used to shut off or open the flow. 3-way butterfly valve can open in 12 positions up to the working condition changed. And we mainly use it in  food, brewery, beverage, dairy, pharmaceutical, and chemical industries. If you are interested in this type of valve , please be free to contact us.
