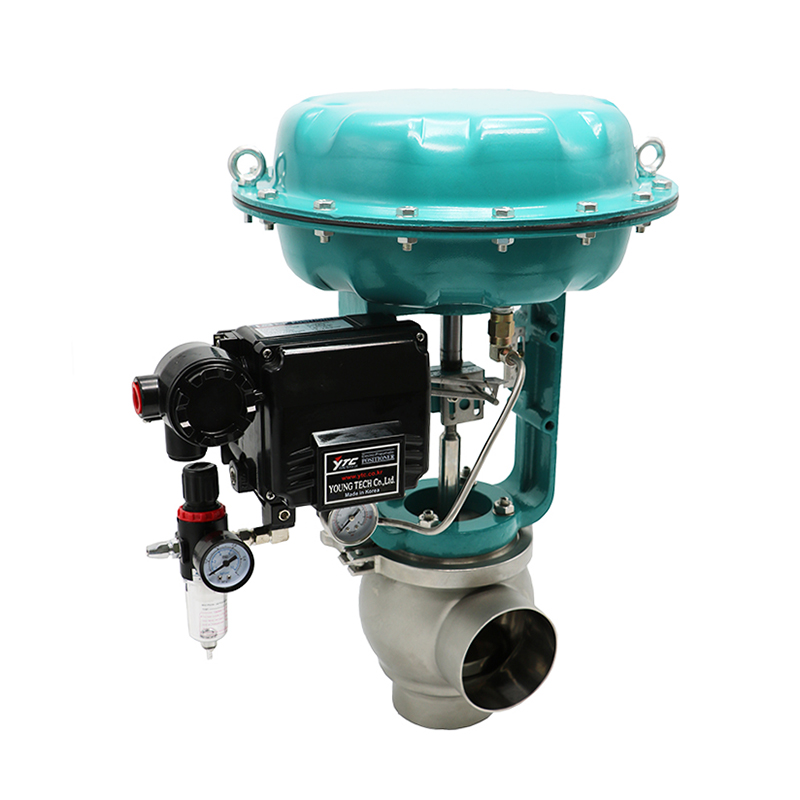

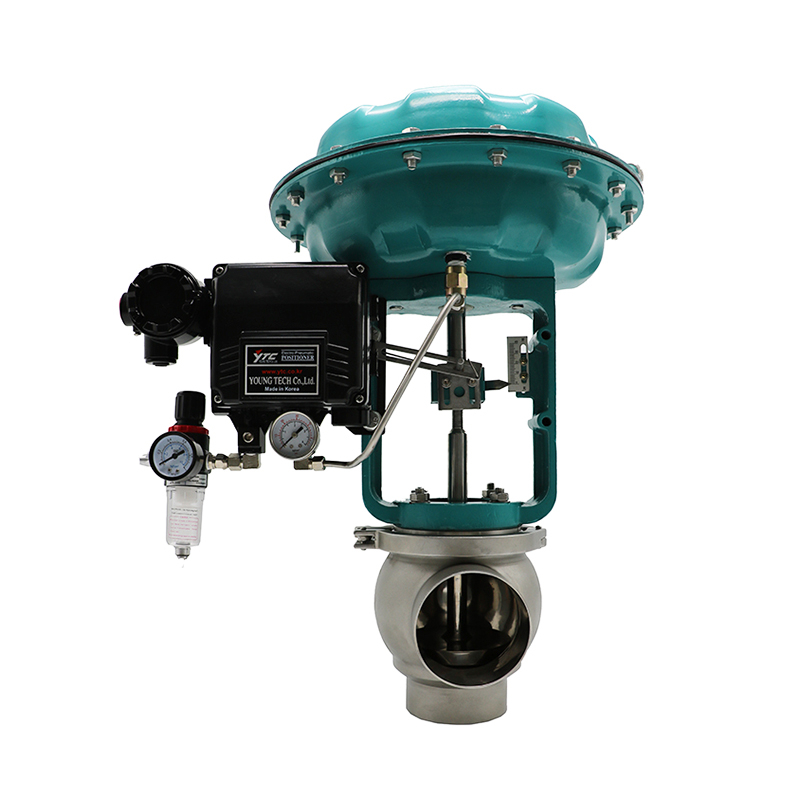

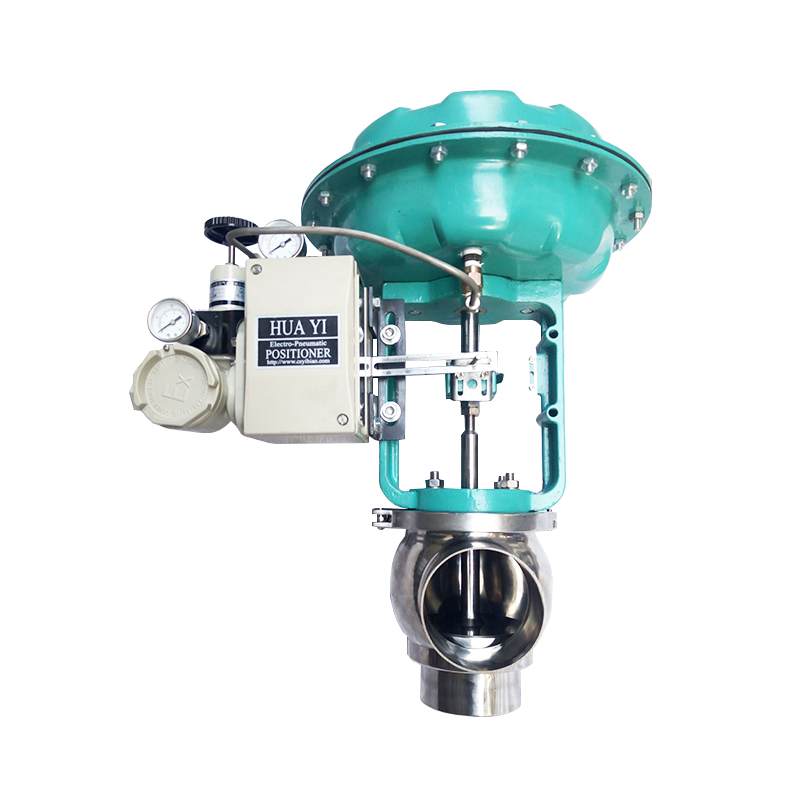

Stainless Steel Sanitary Automatic Membrane Control Valve
Pneumatic sanitary membrane control valve is suitable for various pressure, temperature, flow and other physical quantity adjustment, such as food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrial process control occasions. It has the advantages of compact structure, convenient assembly and disassembly, and high adjustment accuracy, especially in the small pressure drop loss, large flow, wide adjustable range, and high flow accuracy, which fully meets the IEC534-1-1978 standard. The valve leakage volume complies with the ANSIB16.104 standard. The regulating valve is equipped with different multi-spring actuators and has a large output force.
Features and benefits:
The angular design ensures self-draining of the valve, standard electronic polishing, and smooth surfaces ensure cleanliness, no medium accumulation area, and no potential pollution. Quick disassembly of valve body and bonnet makes valve opening and maintenance quick and easy, and shortens process downtime.
Technical parameters of pneumatic diaphragm sanitary control valve
Body type: angle cast ball type (standard type) tee, straight through, multi-way, etc. (variant products)
Nominal diameter: Dn25, 40, 50, 65, 80, 100mm
Nominal pressure: PN1.0MPa
Connection type: clamp type, thread type, flange type (if there is no contract agreement, it will be supplied as a clamp type connection)
Material: stainless steel SS304, SS316L
Filling material: EPDM, PTFE
In-valve components
Spool type: single seat plunger type spool
Flow characteristics: equal percentage (E%); straight line (L)
Material: stainless steel 304SS, 316SS, 316LSS
Type of actuator: multi-spring diaphragm actuator
Diaphragm material: ethylene-propylene rubber with nylon
Spring range: 1.5 ～ 3kg / cm2 (0.15 ～ 0.3MPa)
Air source interface: M16 × 1.5
Ambient temperature: -30 ～ + 70 ℃
Body type: air-open or air-close
Accessories: valve positioner, hand wheel mechanism, air filter pressure reducing valve, stroke switch, valve position transmitter, etc.
Performance of pneumatic diaphragm sanitary control valve:
Leakage: less than 0.01% of rated Kv
Backlash: with positioner: less than 1% of full stroke; without positioner: less than 3% of full stroke
Basic error: with positioner: less than ± 1% of full stroke; without positioner: less than ± 5% of full stroke
Adjustable range: 50: 1
Kv value and allowable pressure difference of pneumatic diaphragm sanitary control valve
Nominal diameter 25 40 50 65 80 100
KV value 11 16 28 45 63 100
Allowable pressure difference MPa 1.0 0.6 0.4
