The Ultimate Guide to Sanitary Butterfly Valves: Features, Applications & Selection Tips

Introduction

In hygienic processing industries—such as food and beverage, pharmaceutical, biotechnology, and cosmetics—contamination control is paramount. Every component that comes into contact with the product must meet strict hygienic standards. One such critical component is the sanitary butterfly valve. Designed for reliable flow regulation and shut-off in sterile environments, these valves combine simplicity, durability, and ease of cleaning.

This comprehensive guide explores everything you need to know about sanitary butterfly valves: how they work, their key features, materials, industry standards, applications, and how to select the right one for your process.

What Is a Sanitary Butterfly Valve?

A sanitary butterfly valve is a quarter-turn rotary valve used to start, stop, or regulate the flow of fluids in hygienic applications. Its name comes from the disc (shaped like a butterfly wing) that rotates inside the valve body to control flow. When the disc is parallel to the flow direction, the valve is fully open; when rotated 90 degrees to block the flow path, the valve is closed.

Unlike standard industrial butterfly valves, sanitary versions are specifically designed with smooth surfaces, crevice-free construction, and corrosion-resistant materials to prevent bacterial growth and enable thorough cleaning—often without disassembly.

Basic Components:

• Valve Body: Typically made of stainless steel (304 or 316L) with a polished interior surface (Ra ≤ 0.8 μm).

• Disc: Also polished stainless steel, responsible for flow control.

• Seat/Seal: Flexible elastomer or PTFE (e.g., EPDM, silicone, Viton, PTFE) that seals against the disc and body.

• Stem: Connects the disc to the actuator or handle.

• Actuator/Handle: Manual lever, gear operator, pneumatic actuator, or electric actuator.

Key Features of Sanitary Butterfly Valves

1. Crevice-Free, Hygienic Design

Sanitary butterfly valves feature a smooth, continuous surface with no threads, gaps, or sharp corners where product residues or microbes could accumulate. The valve body is often one-piece or two-piece with flush-fitting ends, minimizing dead zones.

2. High-Quality Stainless Steel Construction

Most sanitary butterfly valves are manufactured from ASTM CF8M (316L) stainless steel, which offers excellent resistance to corrosion, acids, and cleaning agents. 304 stainless steel is also available for less aggressive applications. The material complies with FDA standards.

3. Variety of Hygienic End Connections

To integrate into sterile piping systems, these valves come with several connection options:

• Tri-Clamp (Clamp): Most common for sanitary lines – quick to assemble/disassemble without tools.

• Butt Weld (Weld ends): Permanent, leak-free connection for high-purity systems.

• Threaded (female/male): union connections for easy install

• Flanged: Rare in sanitary lines but available for larger diameters.

4. Multiple Seat Materials

The sealing material determines chemical compatibility and temperature range:

5. CIP/SIP Compatibility

Sanitary butterfly valves can withstand Clean-in-Place (CIP) and Sterilize-in-Place (SIP) procedures. They tolerate hot caustic solutions, acid rinses, and high-temperature steam (typically up to 140°C for short periods) without degradation.

6. Low Torque & Quick Operation

With a 90° rotation from fully open to closed, these valves provide fast actuation. The disc design minimizes pressure drop and operating torque, allowing manual levers or compact pneumatic actuators.

Advantages Over Other Hygienic Valves

Butterfly valves are ideal for on/off and modulating control in large-diameter lines (1/2" to 12" or larger) where absolute zero leakage is not required (bubble-tight shut-off is possible with soft seats).

Industry Standards & Certifications

To ensure compliance with global hygiene regulations, sanitary butterfly valves should meet the following standards:

• 3-A Sanitary Standard (USA) – for dairy and food processing equipment.

• EHEDG (European Hygienic Engineering & Design Group) – for hygienic design certification.

• FDA CFR 21 – for materials in contact with food/drugs.

• USP Class VI – for biocompatibility in pharmaceutical applications.

• ISO 2037 / DIN 11850 – for dimensions of sanitary tubing.

• ATEX – for use in explosive atmospheres (optional).

Always verify that the valve manufacturer provides material certificates (EN 10204 3.1) and surface roughness test reports when required.

Common Applications of Sanitary Butterfly Valves

Thanks to their cleanability and cost-effectiveness, sanitary butterfly valves are used in:

1. Food & Beverage Production

• Dairy (milk, yogurt, cream)

• Beer and wine brewing

• Soft drinks and juices

• Edible oils and syrups

• Chocolate and confectionery

2. Pharmaceutical & Biotechnology

• WFI (Water for Injection) systems

• Purified water loops

• Cell culture media

• Active pharmaceutical ingredients (API) transfer

• Vaccine manufacturing

3. Cosmetics & Personal Care

• Lotions, creams, shampoos

• Toothpaste and gels

• Perfume and alcohol-based products

4. Chemical & Fine Chemical

• Low-corrosive liquids in clean environments

• High-purity solvents

5. Industrial Hygiene (e.g., semiconductor cleaning)

• Ultrapure water systems

How to Choose the Right Sanitary Butterfly Valve

Selecting the correct valve for your process involves evaluating several parameters:

Step 1: Determine Valve Size

Match the valve size to the pipe outer diameter (OD) and tubing standard (e.g., ISO 2037, ASME BPE). Common sizes: 1", 1.5", 2", 2.5", 3", 4", 6", 8", 10", 12". For throttling applications, consider one size smaller than the line size to improve control.

Step 2: Select Connection Type

• Tri-Clamp – Best for frequent cleaning and disassembly (most flexible).

• Butt weld – For permanent, sterile, and high-pressure systems.

• Threaded – For small lines where welding is impractical.

Step 3: Choose Body & Disc Material

• 316L stainless steel – Standard for most sanitary applications (superior corrosion resistance).

• 304 stainless steel – For non-aggressive fluids (e.g., drinking water, light syrups).

Step 4: Select Seat Material

Consider fluid chemistry, operating temperature, and frequency of CIP/SIP:

• EPDM – General purpose, economical, good steam resistance.

• Silicone – High-purity, wide temperature, flexible.

• Viton – Chemical resistance to oils, fuels, acids.

• PTFE – Almost universal chemical compatibility, high temperature, but higher torque.

Step 5: Decide on Actuation Type

• Manual lever – For occasional operation

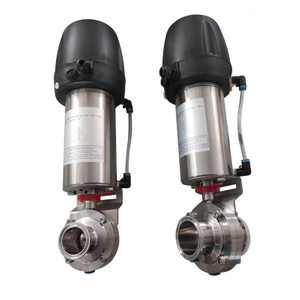

• Pneumatic actuator – For automated on/off or modulating control (requires compressed air).

• Electric actuator – For remote, battery-backed, or fieldbus-controlled systems (e.g., Profibus, DeviceNet).

Step 6: Check Additional Features

• Position indicator (visual or proximity sensor)

• Lockable handle (for safety during maintenance)

• Fail-safe (spring-return pneumatic actuator)

• Control unit (e.g., 4-20 mA positioner for modulating duty)

Installation & Maintenance Best Practices

Installation Tips

• Always install the valve with the disc slightly open to avoid damaging the seat.

• For clamp connections, ensure gaskets are properly seated and clamps tightened evenly (torque specification recommended).

• Provide pipe supports near the valve to avoid stress on the body.

• Orient the valve stem horizontally or vertically based on draining requirements (avoid stem-down orientation which can trap fluid).

Maintenance Schedule

Common Issues & Troubleshooting

• Leakage through closed disc – Worn seat or debris on sealing surface → clean or replace seat.

• Stiff operation – Stem corrosion or seat swelling → replace stem seals or seat material.

• External leakage at stem – Worn O-rings → replace stem seal kit.

Future Trends in Sanitary Butterfly Valves

As hygienic processing becomes more digital and data-driven, sanitary butterfly valves are evolving:

• Smart valves with integrated sensors – Real-time seat wear monitoring, cycle counting, and predictive maintenance alerts via IO-Link.

• Sterile barrier designs – Double-seal stems with steam barrier for aseptic applications (bioreactors).

• Low-emission packing – For volatile organic compounds (VOCs) or hazardous fluids.

• Additive manufacturing – 3D-printed valve bodies with optimized flow paths and reduced dead legs.

Frequently Asked Questions (FAQ)

Q1: Are sanitary butterfly valves suitable for steam service?

Yes, with appropriate seat material. EPDM and PTFE seats handle intermittent steam (SIP up to 140°C). For continuous steam service, consider a metal-seated butterfly valve.

Q2: Can I use a standard butterfly valve in a sanitary line?

No. Standard valves have unpolished surfaces, crevices, and non-compliant elastomers that harbor bacteria and fail FDA/3-A inspections.

Q3: What is the pressure rating of sanitary butterfly valves?

Typically 150 psi (10 bar) maximum for 316L bodies at ambient temperature. Derating applies at elevated temperatures (e.g., ~50 psi at 120°C).

Q4: How do I clean a sanitary butterfly valve?

Most are cleaned in place (CIP) by circulating cleaning solutions through the piping system while cycling the valve open/closed. For stubborn residues, disassemble and manually clean.

Q5: What is the difference between wafer and lug sanitary butterfly valves?

Wafer type fits between two pipe flanges with long bolts; lug type has threaded inserts allowing dead-end service. In sanitary lines, tri-clamp versions are standard, not wafer/lug.

Conclusion

Sanitary butterfly valves offer an optimal balance of hygienic design, cost efficiency, and operational simplicity for a wide range of food, pharmaceutical, and biotech applications. By choosing the right materials, seat compounds, and actuation method—and adhering to recognized standards like 3-A and EHEDG—you can ensure reliable, contamination-free flow control for years to come.

When specifying your next hygienic butterfly valve, always prioritize certified surface finishes, FDA-compliant elastomers, and compatibility with your CIP/SIP protocols. With proper selection and maintenance, this versatile valve will become a dependable workhorse in your sanitary processing line.
