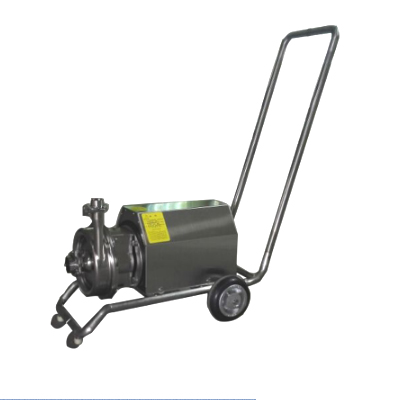

Sanitary centrifugal pump for basic transport duties in dairy, beverage, food processing, wine,biopharm and fine chemical industries. We manufacture centrifugal pump with open impeller and closed impeller series, they are with different flow rate, suction head and height.Sunthai supports our client to select the proper santiary pumps for your applications
DESIGN FEATURES
Cover of motor is made by cold-formed stainless steel plate.
Open impeller and close impeller are stainless steel investment casting.
Mechanical sealing SIC/SIC/EPDM
Adjustable feet. Pump designed according to 3A sanitary standards. IEC B34 motors, IP55, F-class insulation, 50HZ
Materials
Wetted parts: AISI 316/304
Other parts: AISI 304
Gaskets (standard): EPDM(FDA)
Internal surface finish: Mirror Polished
External surface finish: Sand-blasting
Inlet&Outlet Connection: Tri-Clamp, Threaded, Flanged to DIN, SMS, 3A, RJT etc
Technical specifications
Open impeller max. flow : 40m³/h
Open impeller max. head : 50H(M)
Open impeller max. pressure : 5Bar/71Psi
Max. operating temp. : 120°C/248°F
Max. revolving speed. : 3600min-1
