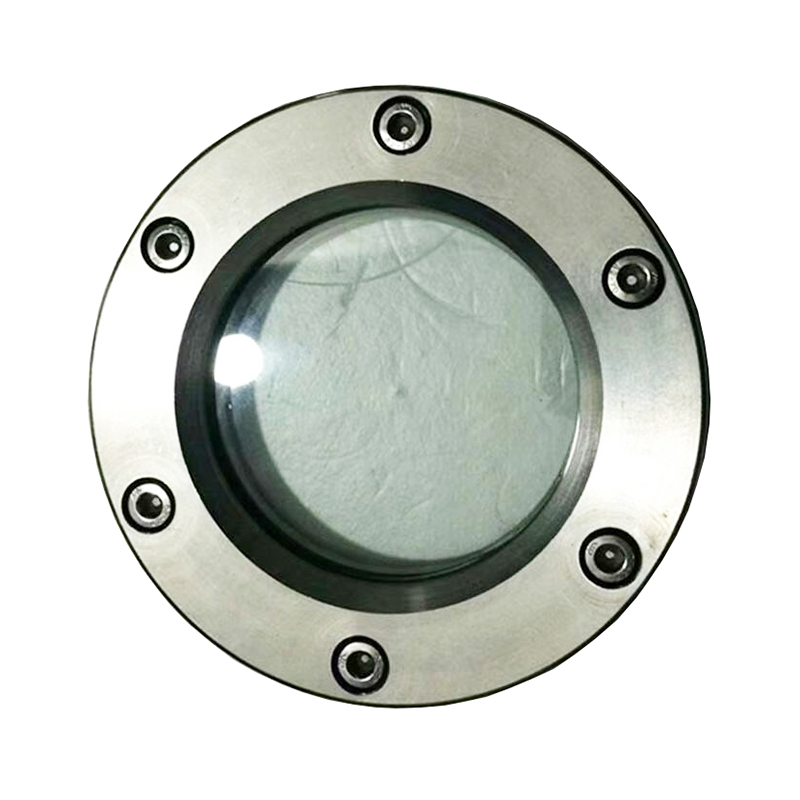

Sanitary FLanged Sight Glass

Sanitary Flanged Sight Glass is 360degree full angle observation.it is comprised of stainless steel flanges and tempered glass, and assembled by stainless steel hexagon bolts. It is used to observe the flow condition in the tank or piping system. It is idea sight glass for high pressure applications

Quantity:
  • SIG04
  • SUNTHAI
  • SS304/SS316

Sanitary FLanged Sight Glass

Features

Full viewing

Explosion-Proof light

Can be used in vertical or horizontal position

Type option:basic flange sight glass type; flange sight glass with light DC24V;with light AC220V,110V;with wipper;with both wipper and light

Power:cable power supply AC110V-220V,DC24V OR wireless power supply,one charging can use 2-3 months(depending on the frequency)

Stainless steelSS304/SS316L
SealViton,PTFE,Silicone FDA177.2600
Max Pressure10Bar/145PSI
Glasstempered glass
Connectionwelded
Norms3A/SMS/DIN
Applications food processeing,beer,dairy, distillation and pharmaceutical industries

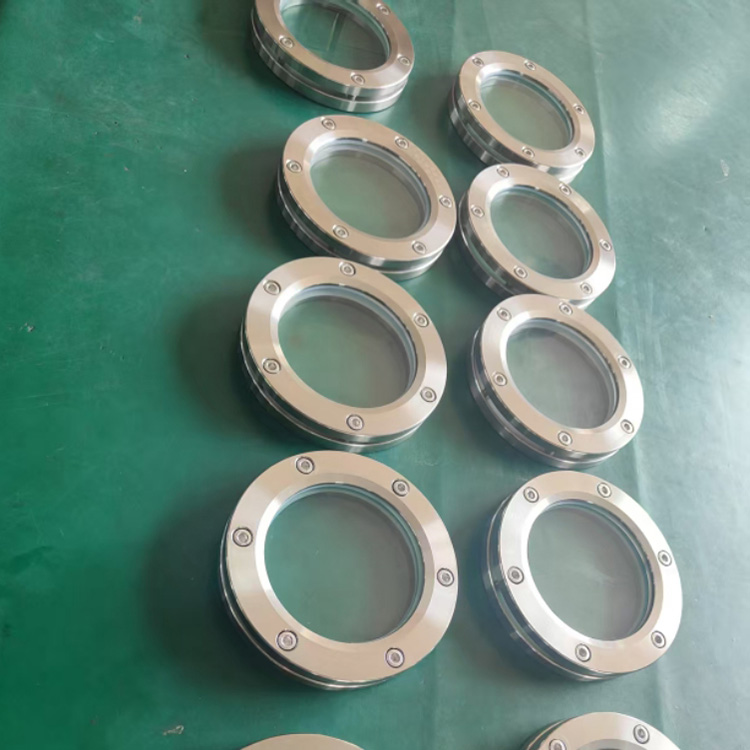

flanged sight glass
