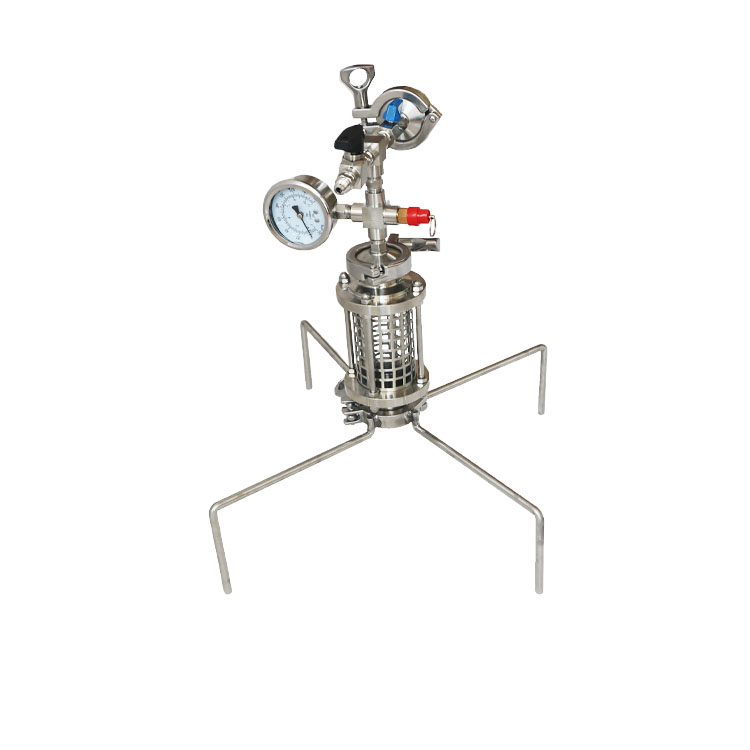

2″ Diamond Miner Crystallization Chamber for BHO extractor

The 4" Diamond miner eliminates the need for glass jars and make your degassing procedure safe.With a 360degree full view of sight glass.You can clearly and easy to observe your diamond growth.Remove the splatter platter to easily remove diamonds from your sauce mix. You can know the inside pressure by the assembling compound gauge
  • 2" Diamond Miner

  • Sunthai extractor

  • SS304

How the Crystallization Chamber Works:

The Diamond Miner works by modulating pressure and water content of live resin. It can be pressurized to 15 PSI.  Additionally there is a desiccant chamber that can be opened – making way to remove water from the resin while the system is under pressure. Live resin often contains large amounts of water because extraction occurs on frozen biomass. Excess water can often extend the process to grow crystals.

Safer than ball jars.  Ball jars cannot be pressurized from the outside and are quite unsafe and it is estimated that they will eventually be banned by most regulatory agencies.

Advantages include:

Safety valve set to break at 15 PSI to prevent overpressurization

Gauge to assure correct pressurization and keep run data

Viton gaskets are chemically resistant to terpenes and hydrocarbons

Everything is connected with tri-clamp fittings

Laser etched nucleation sites allow crystal growth to start faster than other systems

Leg posts for stability

Stainless steel and pyrex viewing glass allows excellent visibility to see crystal growth (a great benefit for operations so they don’t depressurize the system too early)

The desiccant chamber is housed on the head of the diamond miner (it has a ball valve so the operator can expose the atmosphere in the diamond miner for only as long as necessary to remove the water)

The side of the head is a stainless steel tee connected to the gauge and the quick-disconnect coupler

Diamond Miner Crystallization Chamber

Diamond Miner
