KF Long Weld Stub Flange

KF-ISO Stainless Steel Vacuum Flange For Semiconductor Industry.Sunthai valve now offers a comprehensive range of vacuum fittings for vacuum applications required. Vacuum fittings include clamps, centering rings, piping, O-rings, adapters, tees, crosses, valves & etc. Also, we carry different specifications (KF/NW, ISO, CF)
Unit Price:
Availability:
Quantity:
  • SUNTHAI Valve
  • Stainless Steel

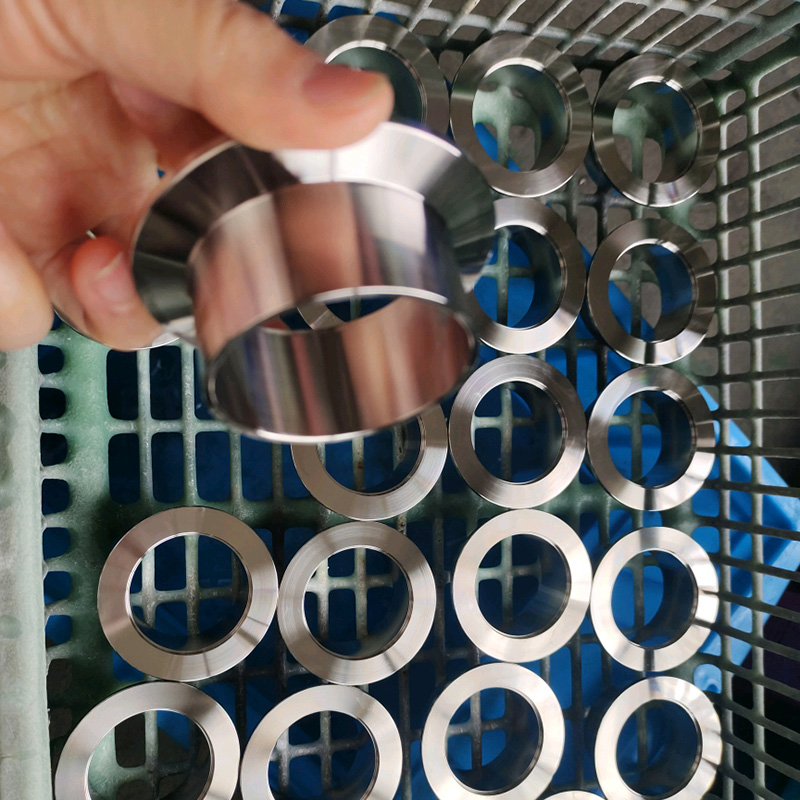

KF Long Weld Stub Flange

Material SS304/SS316
Size KF10, KF16, KF25, KF40, KF50
Surface finishing Ra ≤ 0.8μm
Application Semiconductor Industry
Vacuum Rating 760 Torr to 1 x 10-8 Torr
Working temperature ≤200°C (150°C sustained)

VACUUM FITTINGS

Our KF Weld Stub Flanges follow ISO-KF standards.

These flanges are ideal for welding onto stainless steel pipework and port tubes.

They are commonly used to build vacuum systems with a vacuum level < 10E-8 mbar/Torr.

They are often called quick flange fittings because they are quick to assemble.

A circumferential clamp and centering ring form the vacuum seal between the connecting flanges.

long stub drawing
