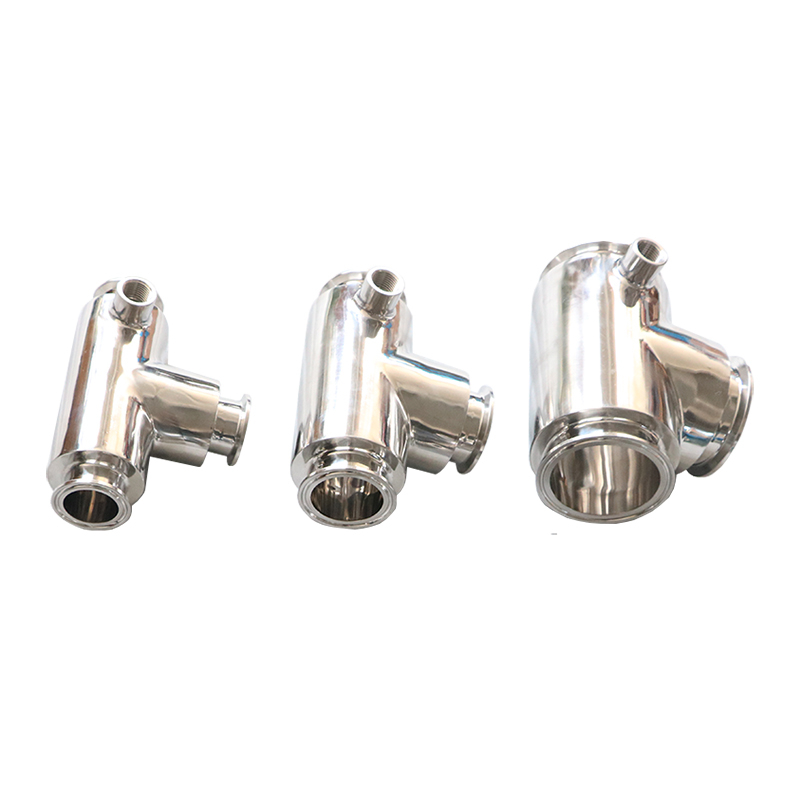

Sanitary Stainless Steel Jacketed Tee

Mirror polished stainless steel food grade Tee. Tri clamped connection. And the jacketed design is suitable for chacolate industries and etc.
Standard:
Size:
Wall Thickness:
Surface treatment:
Availability:
Quantity:
  • Sunthai

  • SS304/SS316L


Sanitary Stainless Steel Jacketed Tee

Details:



Standard:
DIN/SMS/3A/ISO/BS4825
Body Material:
stainless steel 304/316l
Size:
1.5"~12"
Thickness: 1.5mm,1.65mm,2.1mm
Max Pressure:
145PSI
Connection method:
Clamp, Welded/clamped/threaded
Polish:
Sanitary high mirror polish
Inlet&outlet:
1/4" or 3/8" or 1/2" NPT,BSP
Technics: welding/polish
Certification: CE, ISO
Warranty:
1 year

If you are interested in this product, please be free to contact us for more details. And our catalog is available.



This Sanitary Stainless Steel Jacketed Tee can be made of SS304 and SS316L, and SS304 is more often used. The jacketed design make it suiable for some special plants, such as a chocolate plant. As chocolate is easy to solidify, when producing. You could inject hot water into the sieeve to heat up the chocolate in the tube. And the tri clamp connection makes it easy for assembling and disassembling.


We manufacture different styles of jacketed pipe fittings:

  • Jacketed 90 Degree Clamped Elbow

  • Jacketed Tri Clamp Tee

  • Jacketed Tri Clamp Column

  • Stainless Steel Jacketed Flanged Tee

  • Stainless Steel Jacketed Flanged Elbow

Welcome to consult our corresponding products.
