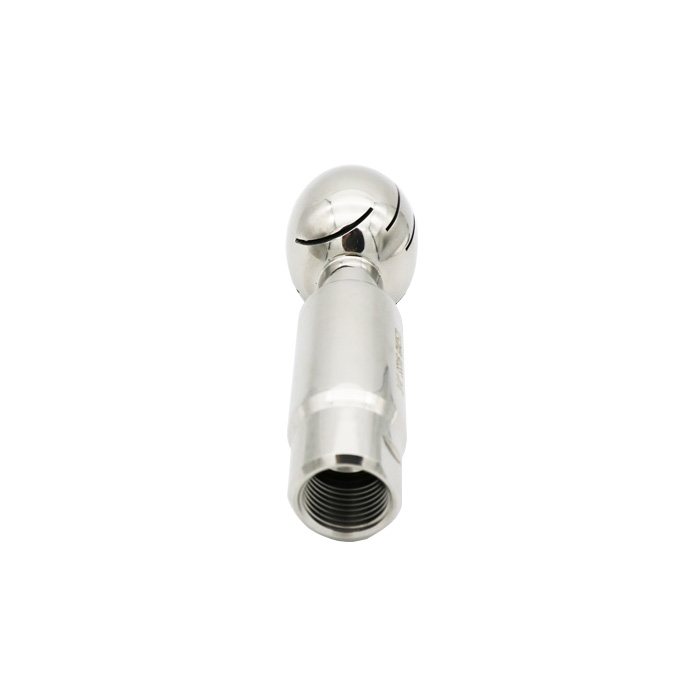

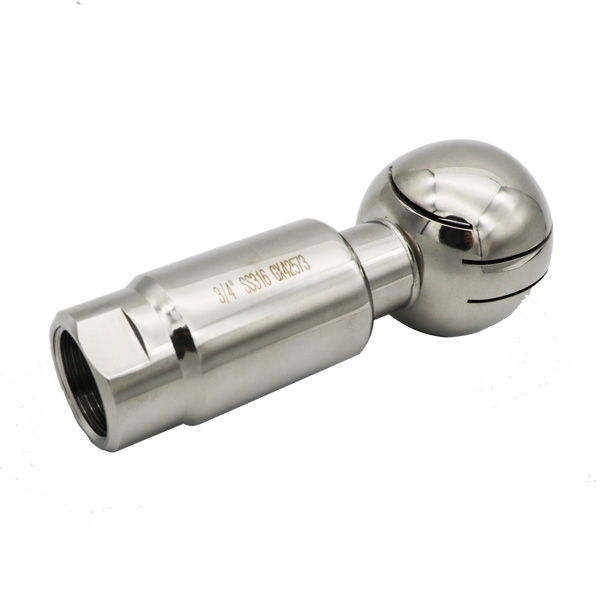

Sanitary Tank Female NPT Rotary CIP Spray Ball
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops, pharmacy |
| Standard: | 3A/SMS/DIN |
| Material: | Stainless Steel 304 or 316L |
| Ball Shape: | eliptical or spherical |
| Size: | 3/4"- 2 1/2" |
| Surface treatment: | mirror polish |
| Connections: | Clamped, threaded, weld, Clip bolted |
| Thread Type: | NPT, BSP, BSPT |
| Working pressure: | 1-3Bar |
If you are interested in this product, please be free to contact us for more details.
Features:
Max.working temperature: 95℃
Max.ambient temperature: 140℃
Moist radius: max.3meter
Datasheet:
We have three series of Sanitary Stainless Steel Cleaning Balls:
1.Static tank CIP cleaning ball: 360 degree spray completely, 180 degree,90 Deg upside or downside,the head can be round or flat

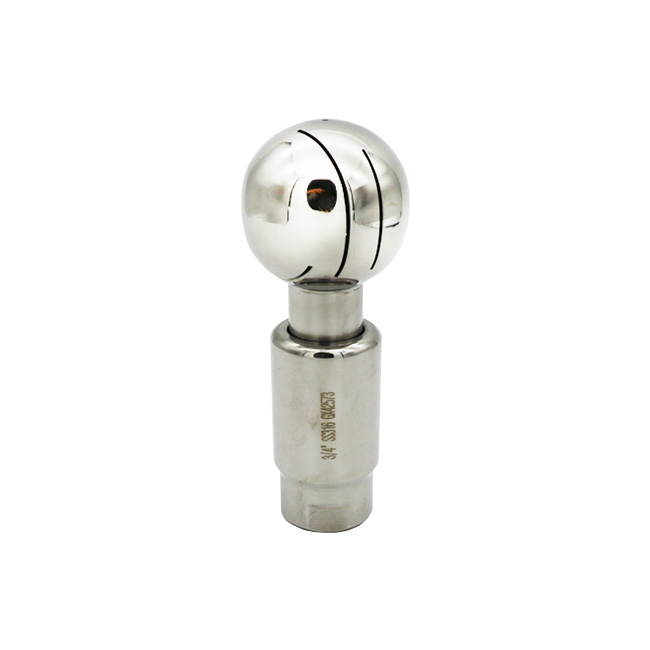

2.Rotary Spray head: the ball head shape can be sphere and elliptical.
3.Rotary cleaner: multi-position spray type. When working, it's rotating jet spray.
Working method of the spray balls:
◎The liquid applied to the upper part of the tank is running down the tank walls like a falling film.
◎The dirt particles dissolved by the detergent are rinsed off by the falling film.
◎Cleaning pre-pressure is between 1,0 – 1,5 bar at the spray ball for tanks without internal installations.
◎Cleaning pre-pressure is between 1,8 – 2,5 bar at the spray ball for tanks with internal installations.
