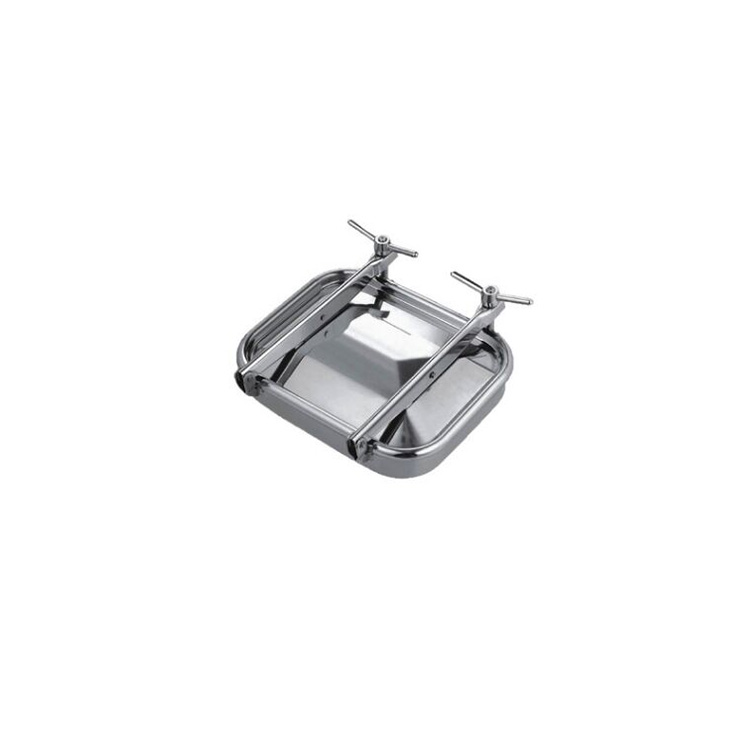

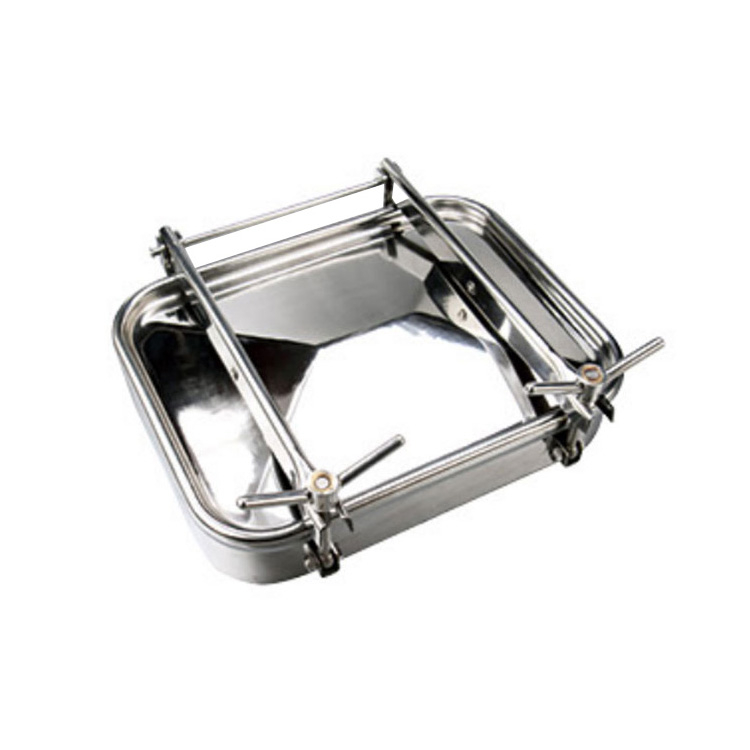

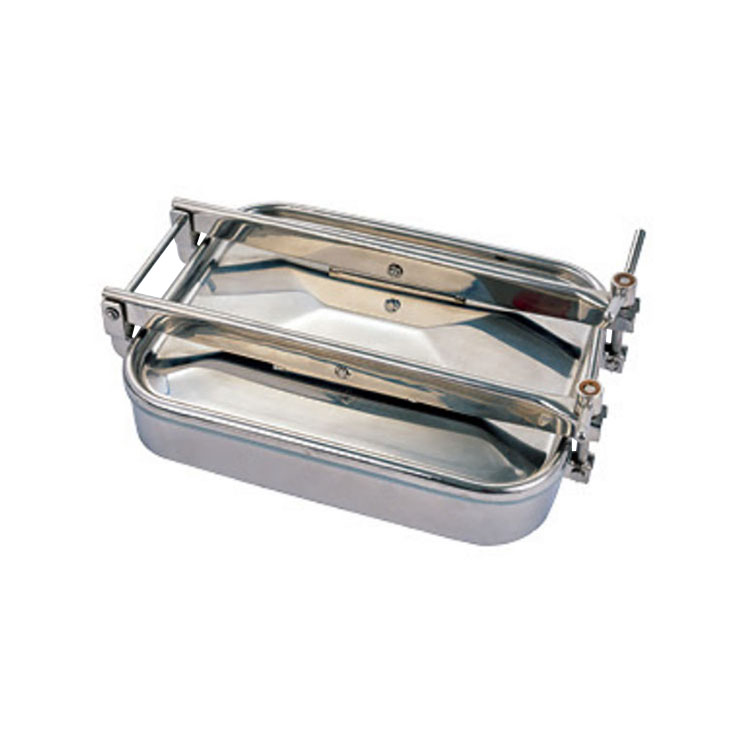

Sanitary Rectangular Tank Manhole Cover Outward Opening

​Rectangular manways are commonly side mounted in mash tuns to facilitate the removal of grain. To the safety and fire resistance, it is a safety device for protecting the storage tank, and is especially suitable for the vaulted atmospheric pressure tank with the nitrogen storage capped material.
Availability:
Quantity:
  • MCF05
  • SUNTHAI
  • SS304/SS316

Rectangular manways,Square mahole covers are commonly side mounted in mash tuns to facilitate the removal of grain. To the safety and fire resistance, it is a safety device for protecting the storage tank, and is especially suitable for the vaulted atmospheric pressure tank with the nitrogen storage capped material.

Stainless steel part SS304/SS316
Gasket Silicone,NBR,EPDM,Viton
Surface finish Mirror polish,Matt finish Ra≤0.8μm/320Grit
Max Pressure: 1Bar
Handle Stainless steel spanner type,handle wheel,

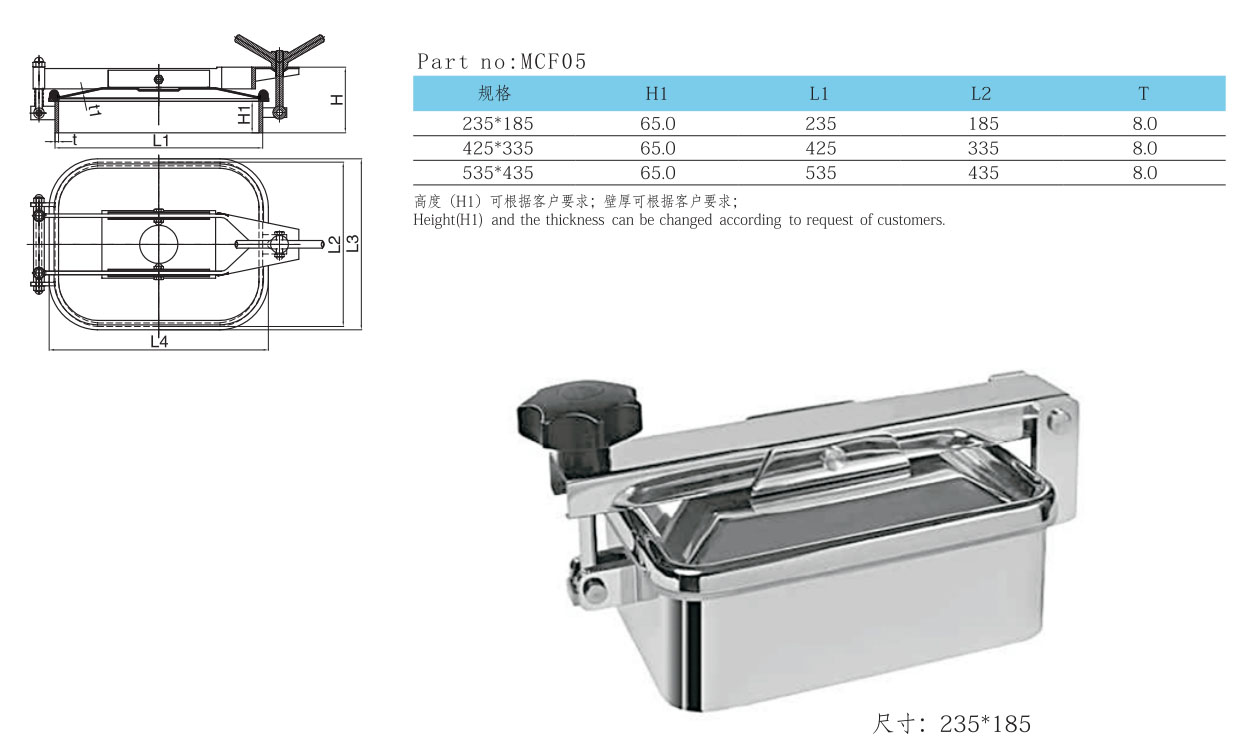

Height and neck thickness can be customized

tank cover for handle

manway with viewing

square manhole
