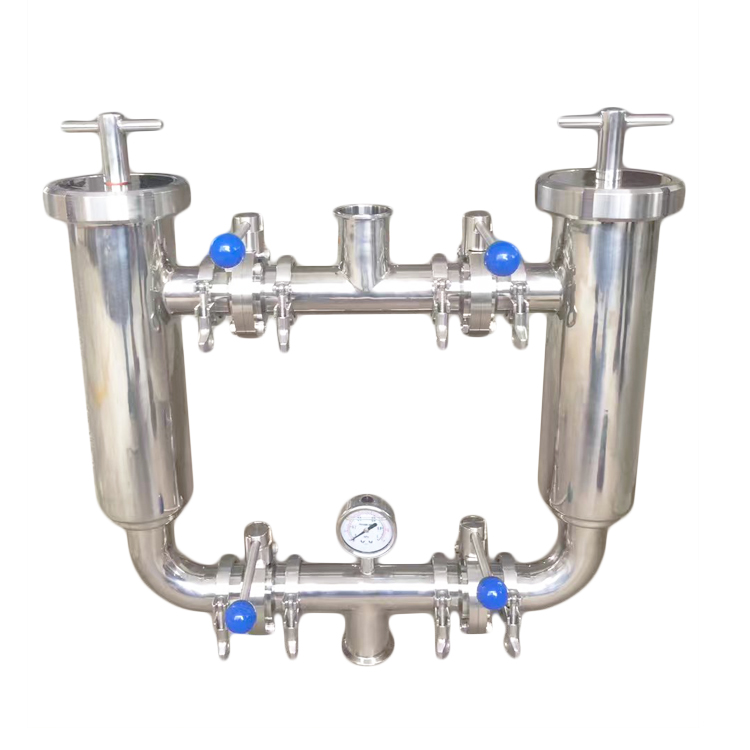

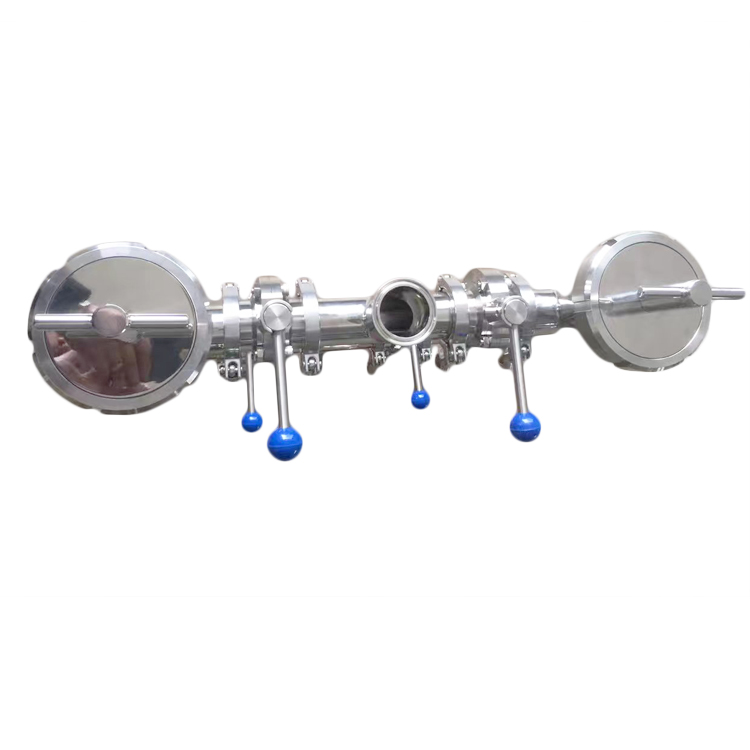

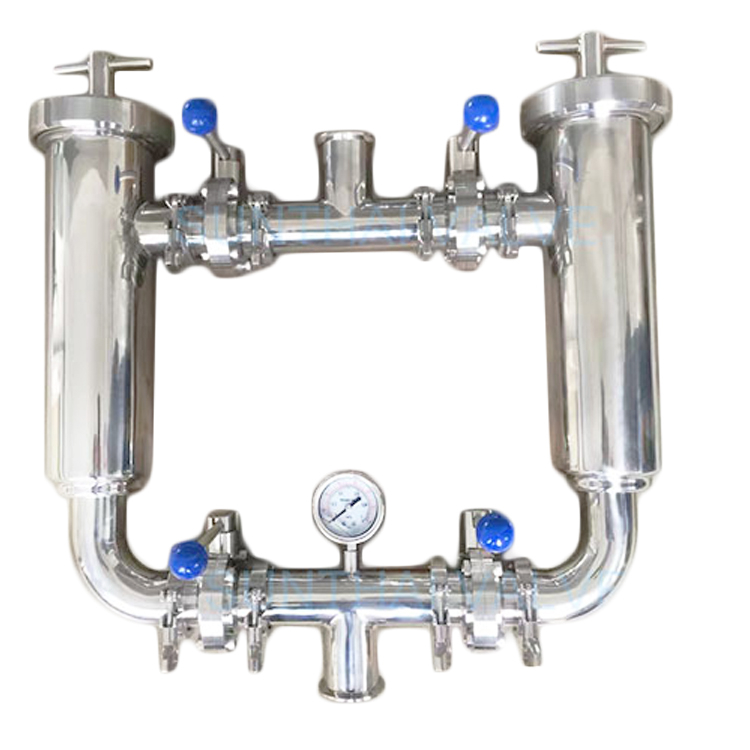

Hygienic Duplex Pipeline Filter Strainer with pressure gauge

Duplex filter assemblies are suitable for long-term continuous production, reduce production cost and improve the working efficiency. Sanitary duplex filter assemblies enables the pipeline produce purified liquids, it is widely used in the equipment of Brewery, Winery, Beverage, Milk, Biopharmaceutical etc.

Quantity:
  • SUNTHAI
  • SS304/SS316L

This kind of duplex filters is applied to eliminate the invisible impurity substance from dairy, beverage and plulps. So as to purify the liquids. The two filters can run alternatively and continually. The showed is angle type, straight filter is available, customized is available, such as with pressure gauge etc.

Specifications:
Size:1″-4″/DN25-DN100
Pressure Guage is provided on client’s request.
Connection: Clamped, Male, Welded.
Max pressure: 10Bar/145PSI
Working tempressure: -10℃ to 120 ℃(EPDM)
Gasket: EPDM/silicon/viton meet ( FDA 177.2600)
Screen:30-300meshes
Screen Hole:0.5mm-2mm
Filter type:Angle type or inline type

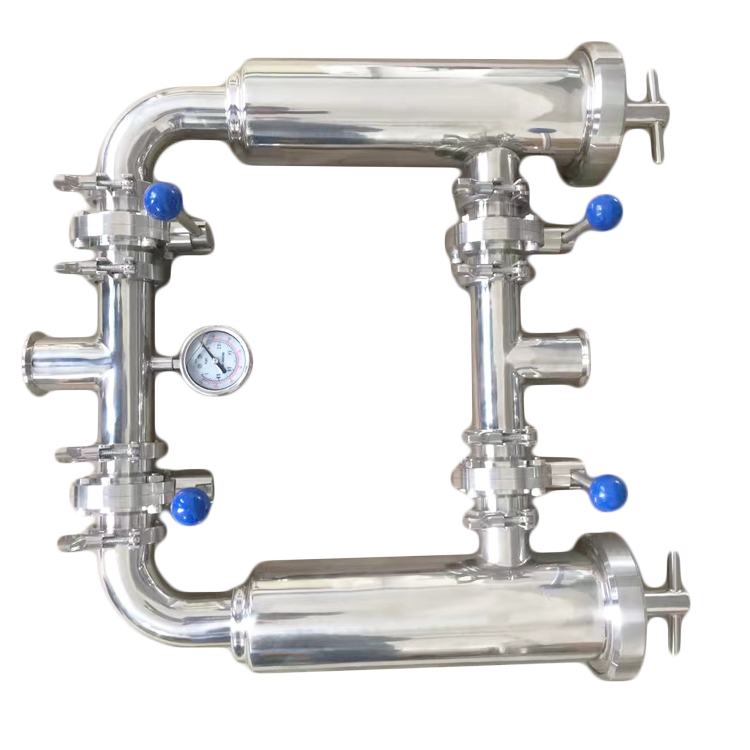

Sanitary Stainless Steel Duplex Filter

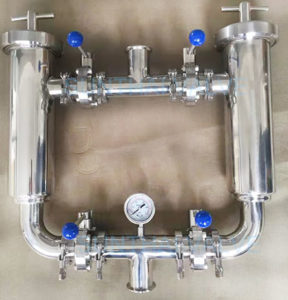

Sanitary Stainless Steel Duplex Filter

The sanitary stainless steel strainers series include inline straight filter,90 degree angle type(side entry port) strainer,Y type filter,Cartridge filter housing,tank breather filter.Duplex filter,Muti-bag filtering,Lenticular Filter Housing
