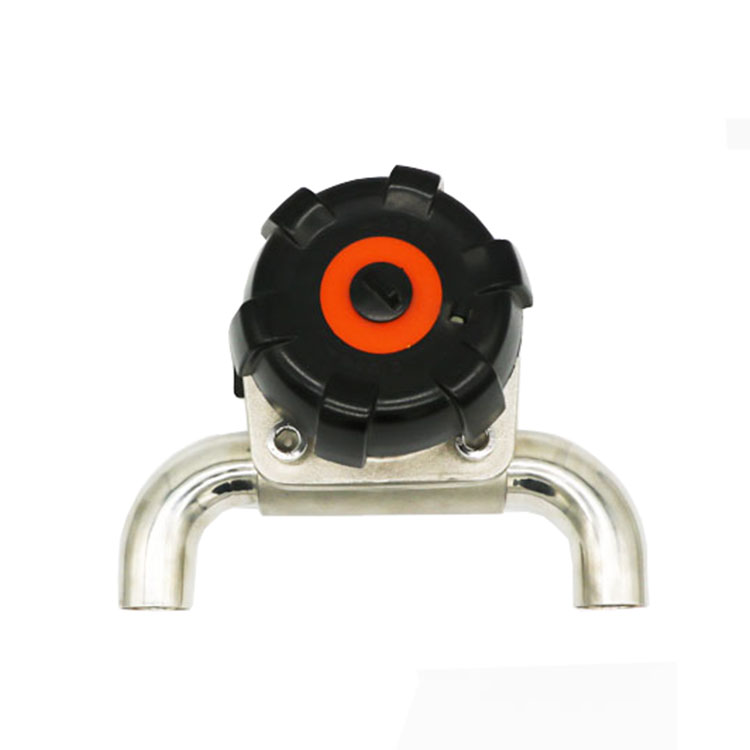

Sanitary 3 way U-Type Clamped Diaphragm Valve
Control mode: | Manual Type & Pneumatic Type |
Size : | 1/2",3/4",1",1.5",2" or reducing size |
Operation : | Normal Open & Normal Close design |
Connection type: | Weld,triclamp |
Working temp : | ASSEMBLING Diaphragm EPDM(-40 C -150 C0 PTFE/EPDM(-10 C-150 C) |
Working pressure: | max 10 Bar |
Surface finish | OD Sand Blasted /ID mirror polished. ID Ra<0.8um.ID C Ra<0.5um(SF1) or E/P Ra0.3um(SF4) can be requirement |
Sanitary 3 way U-Type Clamped Diaphragm Valve.
The valve body is zero dead volume designed so there is low turbulence and contamination free.
Ultra-pure and sterile diaphragm valves are suitable to use for food, beverade, dairy , biotech, pharmacy industries.
Sanitary 3 way U-Type Clamped Diaphragm Valve
Control mode: | Manual Type & Pneumatic Type |
Size : | 1/2",3/4",1",1.5",2" or reducing size |
Operation : | Normal Open & Normal Close design |
Connection type: | Weld,triclamp |
Working temp : | ASSEMBLING Diaphragm EPDM(-40 C -150 C0 PTFE/EPDM(-10 C-150 C) |
Working pressure: | max 10 Bar |
Surface finish | OD Sand Blasted /ID mirror polished. ID Ra<0.8um.ID C Ra<0.5um(SF1) or E/P Ra0.3um(SF4) can be requirement |
Sanitary 3 way U-Type Clamped Diaphragm Valve.
The valve body is zero dead volume designed so there is low turbulence and contamination free.
Ultra-pure and sterile diaphragm valves are suitable to use for food, beverade, dairy , biotech, pharmacy industries.
