Stainless Steel 3PC Ball Valve 1000WOG NPT female

Quantity:

Description

Stainless Steel 3PC Ball Valve 1000WOG NPT female

STAINLESS STEEL HEAVY DUTY FULL PORT 3 PIECE BALL VALVE – 1,000 PSI (WOG)Features:
Valve body: SS316L, SS304,CF8M/CF8

100% air tested under water at 80-100 psi
Temperature range (PTFE) -20F to 350F
With lock on handle,ISO 5211 Mounting Pad
Sizes 1/4″ – 4″/DN8-DN100
Max temperature:-25°C to 180°C
Seat:PTFE
bi-directional flow
Medium:Water, Oil, Gas
Connection end:BSP female,BPT female,SOCKET WELD
Lockable device,ISO mouting pad are optional
The Stainless Steel 3PC Ball Valve 1000WOG NPT female can be operated by Aluminum actuator,electric actuator

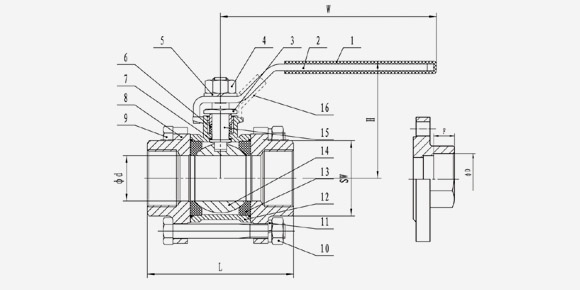

3-pc ball valve drawing

3-pc ball valve drawing

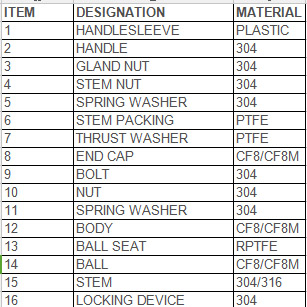

stainless steel 3 piece ball valve part list

stainless steel 3 piece ball valve part list

The types of Industrial ball valves that SUNTHAI can supply are:1 pc ball valve,2 pc ball valve,3 pc ball valve.3 way ball valve,flanged ball valves.Bibcock Ball Valve.Also we supply many other screwed valves,such as check valve,gate valve,globe valve,Strainers.etc
