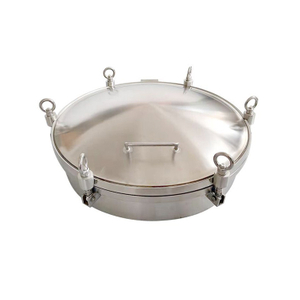

Stainless Steel Round Manhole Cover for Storage Tank Lid

Manhole covers are welded on tanks and vessels for the purpose of man or man's handle to clean the inside of tank.widely used in the sanitary applications such as wine, beverages, dairy and food processing.Round manways are simply designed to be an access port for pressurized brewing systems.

Quantity:
  • MCF03
  • SUNTHAI
  • SS304/SS316

Stainless Steel Round Manhole Cover for Storage Tank Lid

Features:
Material:AISI304(1.4301)/316L(1.4404)
Size:200mm-600mm
Height: 100mm,120mm,150mm(can be customized to client’s request)
Gasket:EPDM,NBR,SILICONN,FPM accordance with FDA177.1600

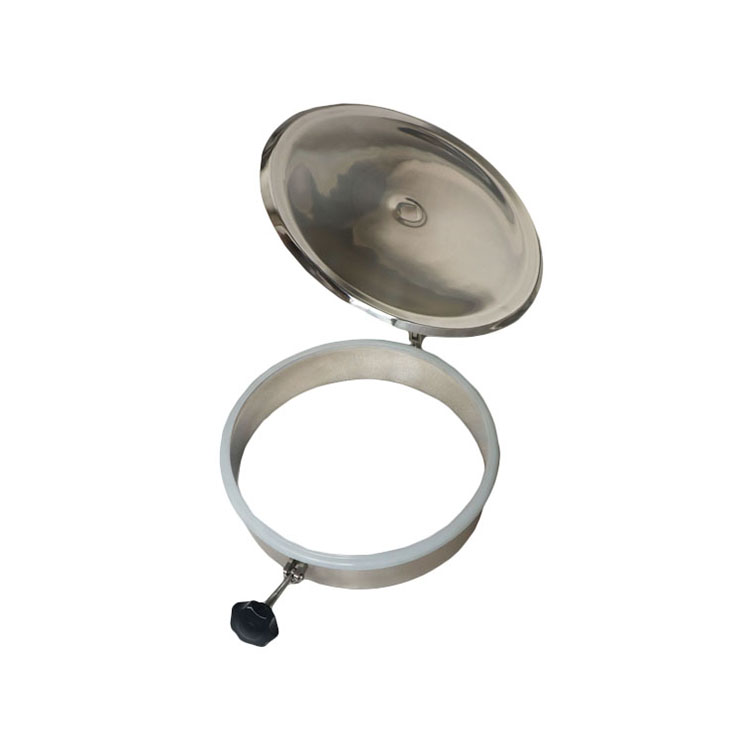

Outward opening manway

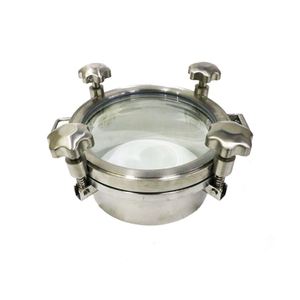

Plastic hand wheel or stainless steel hand wheel

Surface Roughness: Ra≤0.8μm
Finish: Mirror polish,Matt finish
Max Pressure:0.1Bar

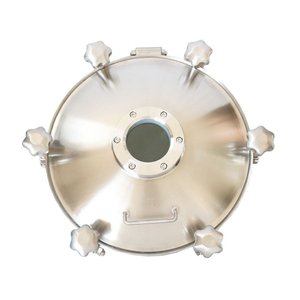

Round Manhole Cover is installed on the top or side of tanks&vessels.It is a path for hand or man going into the containers to do cleaning or maintainace.The tank manhole covers are optional with pressure or without pressure.Also flanged sight glass or union sight glass for viewing can be equipped on manholes.
Sunthai have oval manway,circular tank lid,rectangular manhole cover.Stainless steel Oval manway cover.

oval manhole
