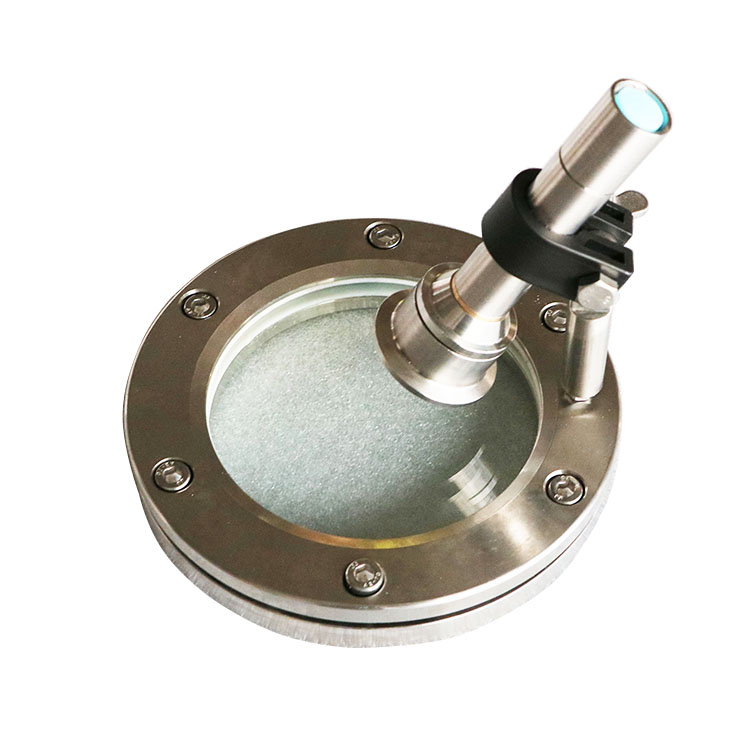

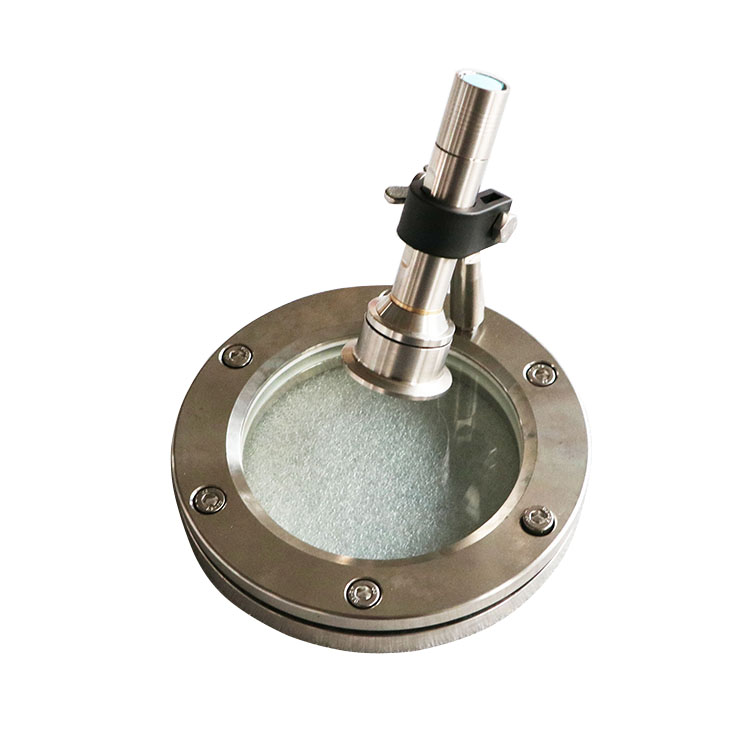

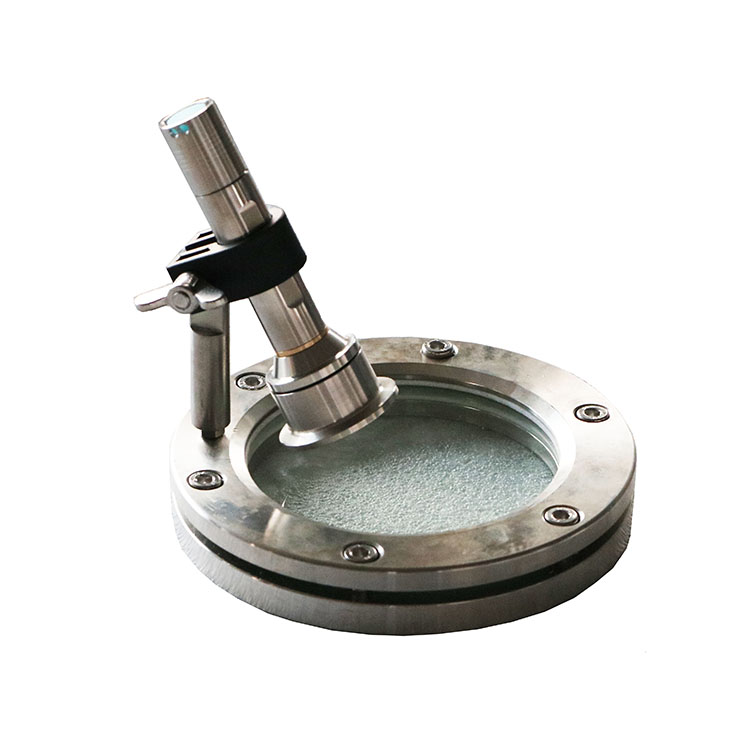

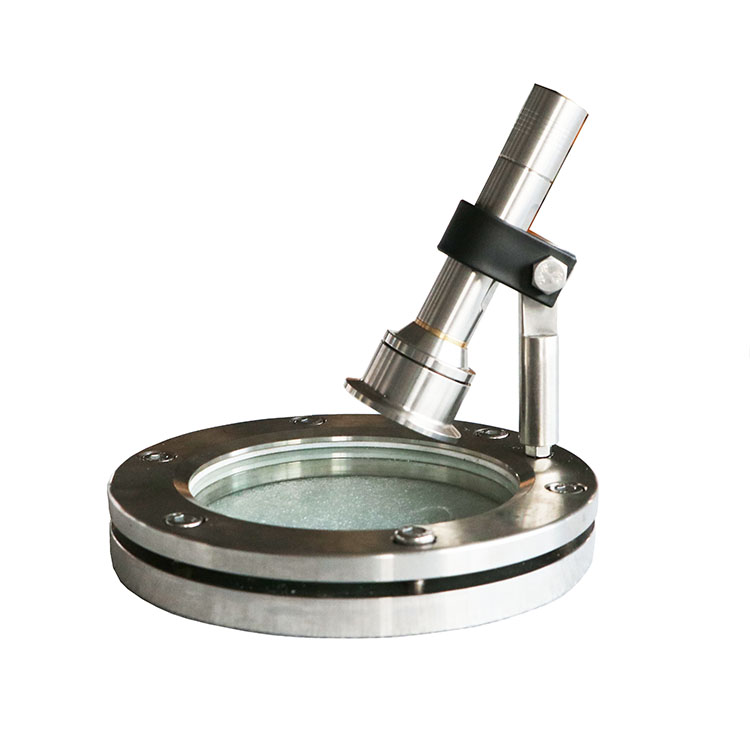

DIN11851 sanitary flanged sight glass with light indicator

Sanitary Flanged Sight Glass is 360degree full angle observation.it is comprised of stainless steel flanges and tempered glass, and assembled by stainless steel hexagon bolts. It is used to observe the flow condition in the tank or piping system. It is idea sight glass for high pressure applications
Unit Price:
Availability:
Quantity:
  • SIG06
  • SUNTHAI
  • SS304/SS316


Sanitary FLanged Sight Glass with LED lamper


Stainless steelSS304/SS316L
SealViton,PTFE,Silicone FDA177.2600
Max Pressure10Bar/145PSI
Glasstempered glass
Connectionwelded
Norms3A/SMS/DIN
Applications food processeing,beer,dairy, distillation and pharmaceutical industries


Features:

  • Full viewing

  • Explosion-Proof light

  • Can be used in vertical or horizontal position


Type option:basic flange sight glass type; flange sight glass with light DC24V;with light AC220V,110V;with wipper;with both wipper and light


Power:cable power supply AC110V-220V,DC 24V or wireless power supply,one charging can use 2-3 months(depending on the frequency)


flanged sight glass
