1/2 LB Closed Loop Extractor

1/2lb closed loop extractor with a dry ice column, two spools with hemi cap, the collection tank is connected with a splatter platter.
Max Pressure:
Connection:
Surface treatment:
Seal:
Availability:
Quantity:
  • Sunthai Extractor

  • Stainless Steel 304

1/2 LB Closed Loop Extractor

Details:

Application:
Food & Beverage Factory, CBD, BHO extraction
Warranty:1 Year
Body Material:
SS304
Max Pressure:
145PSI
Connection method:
High pressure clamp

Surface treatment:

Mirror Polish
Seal:
Tri clamp FKM gasket, FKM gasket with screen
Solvent:
Butane, Propane, Ethanol
Column size:
1.5"x12"

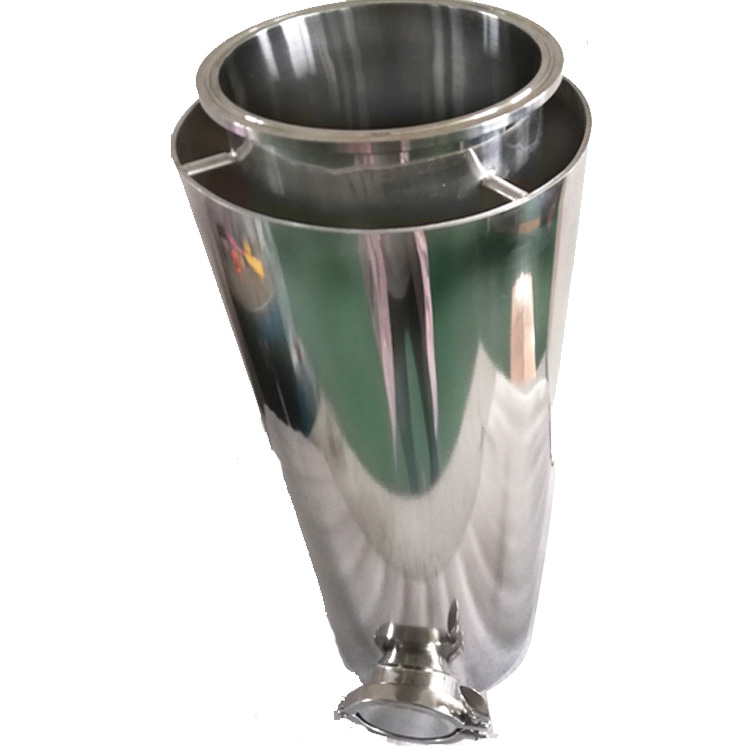

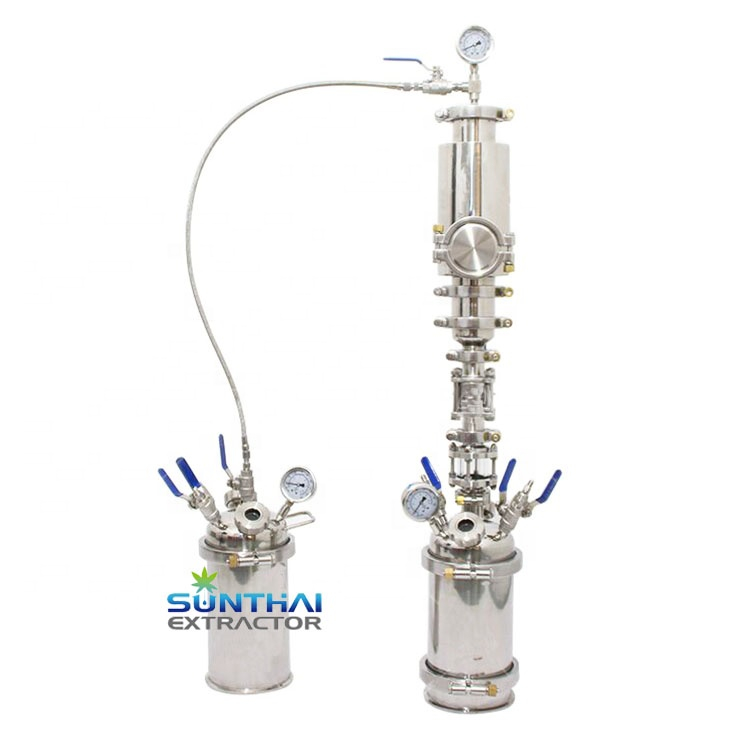

This 1/2LB Closed Loop Extractor has a 1.5"x12" dry ice column, a 6"x6" collection tank connected with a 6"x2" splatter platter, and a 6"x8" recovery tank. The drain port on the dewaxing column is connected with a end cap, this design can help you to empty the sieeve easily. The end caps on the tanks are dome, while flat caps are also available.


If you are interested in this product, please be free to contact us for more details.
