​6"X3" Fully Jacketed Splatter Platters

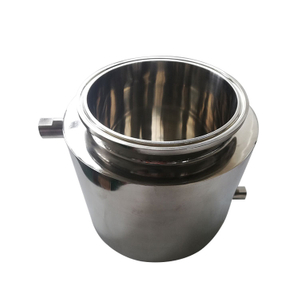

​6"X3" Fully Jacketed Splatter Platters with 2 xMNPT fittings on the jacket to connect a recirculating heater/chiller.It is used as collection pot for our 1lb closed loop extractor
  • Sunthaiextractor
  • SS304

Fully Jacketed splatter platters are a huge step up from normal splatter platters by providing the user a more efficient recovery of their solvent without having to move or lift the extractor into a hot water bath. These jacketed splatter platters allow the circulation of water through the outer jacket through two MNPT or FNPT ports on each side of the splatter platter.This 6"X3" jacketed shatter is used as collection pot for our 1lb closed loop extractor

Stainless steel SS304
Polish High Mirror Polish
Common Base Diameter 4",6",8",10",12"
Depth 2"-12"
Connection type Tri clamp(High pressure clamps and Viton Gasket are recommended)
Port FNPT/MNPT.1/4",3/8",1/2"


Jacket,non jacketed

Handles for easy carrying

With wheel-caster for big platter

Round base or flat bottom base

3/8" MNPT or 1/2” or 1/4" port on outer jacketed Section

With  Spout on bottom

Wall thickness:3mm,5mm

1lb extractor
