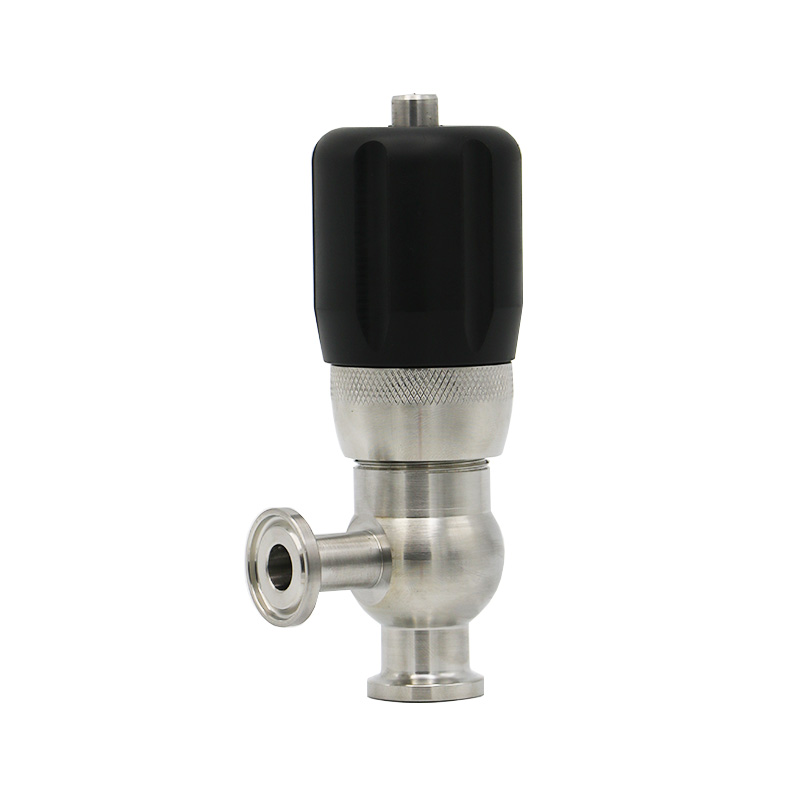

Sanitary Mini Pressure Overflow Safety Valve with TC End 25.4mm

Safety valve is used to protect pipeline from over pressurization. When pressure exceeds to the certain setting pressure value, valve plug will lift up and release pressure through side port. The valve will remain open until the pipeline pressure reduces to under setting value.
Standard:
Size:
Seal:
Power:
Quantity:
  • SFV02
  • Sunthai
  • SS304/SS316L

Sanitary Mini Pressure Overflow Safety Valve with TC End 25.4mm

Details:

Media:food, beer, beverage, wine, pharma
Valve Body Material:SS304 or SS316L
Seal:PTFE, Silicone, EPDM, FKM
Max Pressure:10 Bar
Max. Working Temperature:120 degree C (EPDM)
Triclamp size:3/8", DN10
connection:clamp, weld, thread
Standard:DIN/3A/SMS
Power:Manual
Customized support:OEM, ODM
Warranty:1 year
Certification:ISO, CE
Wheel type:round wheel
If you are interested in this product, please be free to contact us for more details.


Operating principle:
Normally the valve is closed.The specific pressure is setted by adjusting the spring pressure nut. When pressure in the pipelines is higher than the setting value, the valve will open automatically for liquid flowing out, in this way, pressure in the pipeline is released.


Features:

  • Pressure ranges: 0-3bar, 0-6bar, 0-8bar, 0-10bar (by changing the spring).

  • The specific pressure is set by adjusting the spring pressure nut.

  • Seat gasket replacement in less than munites.

  • Without removing the valve from the line and no tools required.

  • With sanitary and safe design, Sanitary Pressure Relief Overflow valve with Tri-clamp End can avoid operation danger and equipment failure caused by exceed pressure.
