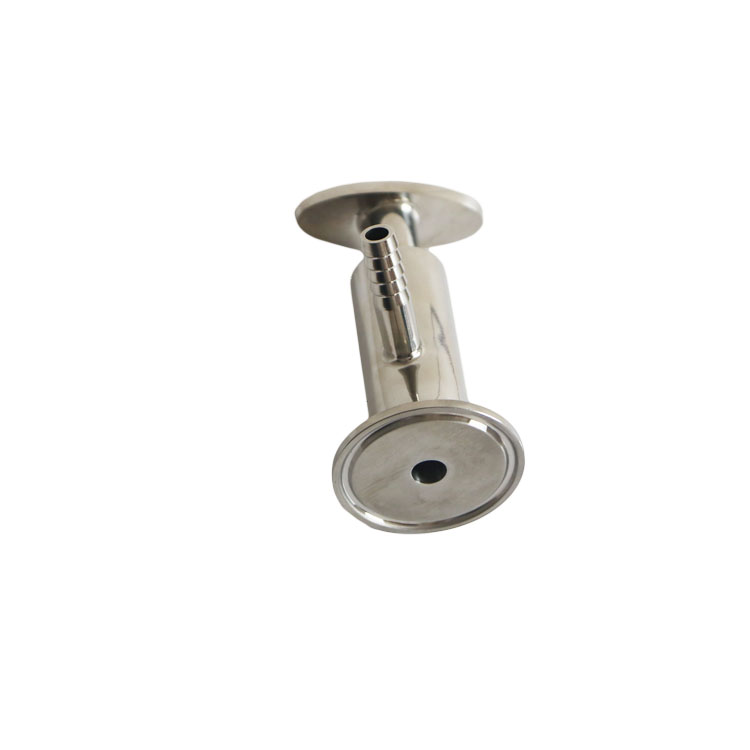

Sanitary Stainless Steel Sampling Cock Valve with Tri-clamp End
Wheel type: | round wheel, ellopse wheel |
Valve Body Material: | SS304 or SS316 |
Seal Material: | PTFE, Silicone, EPDM, FKM |
Max. Working Pressure: | 10 Bar |
Temperature range: | 0 to 150℃ |
Norminal tube size: | 1/2" - 1.5" |
Power: | Manual |
Temperature: | -10℃/50℉ to 120℃/248℉ |
Media: | food, beer, beverage, wine, pharm |
Connection: | Threaded, welded, tri-clamped, union |
If you are interested in this product, please be free to contact us for more details.
They are mainly used to tane samples from tank, vessel, or pipelines. They can also be assembled at the bottom of tank or pipeline to discharge remains.
Working Principle:
When turn the hand wheel clockwise, the valve shaft and seal rise up. At this time, valve is open for
sampling. When turn the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the
valve is closed.

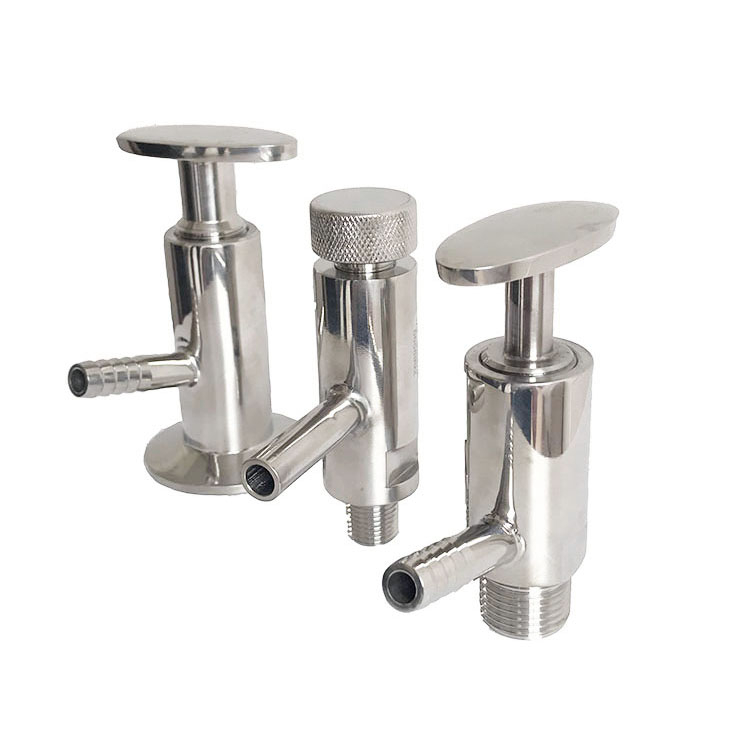

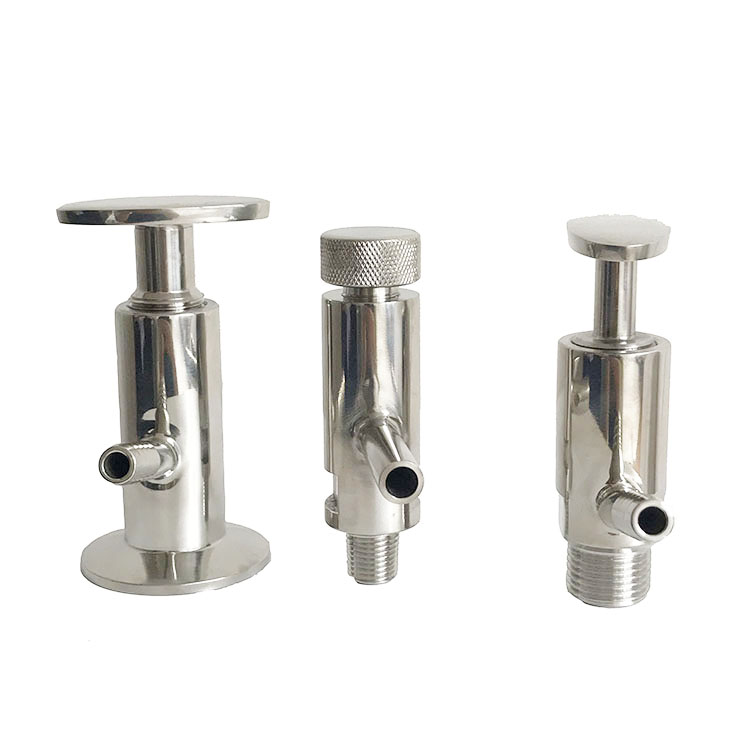

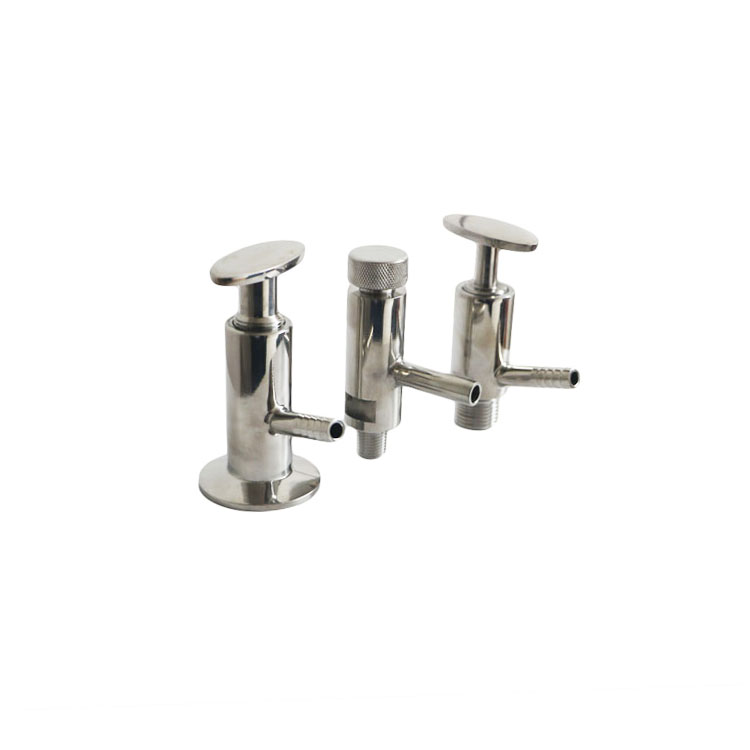

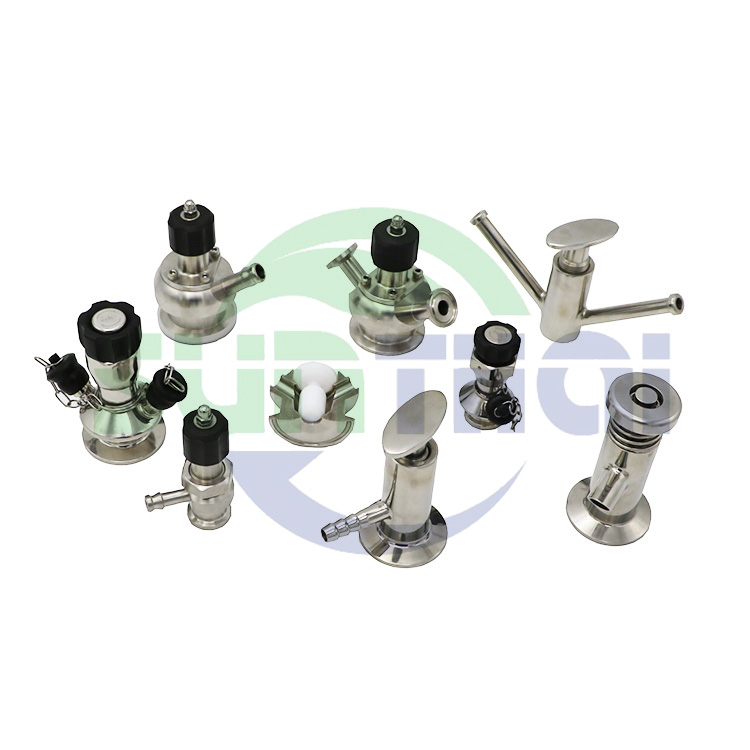

Sunthai’s sampling valves series: Manual clamp sample cock,Threaded sample valve, Yogurt sampling valve, Hygienic pneumatic aseptic sampling cock valve, Sanitary Stainless Steel Sampling Cock Valve with Tri-clamp end.
