Material: | |
---|---|
Size: | |
Max Pressure: | |
Working Temperature: | |
Availability: | |
Quantity: | |
Sunthai
Stainless Steel

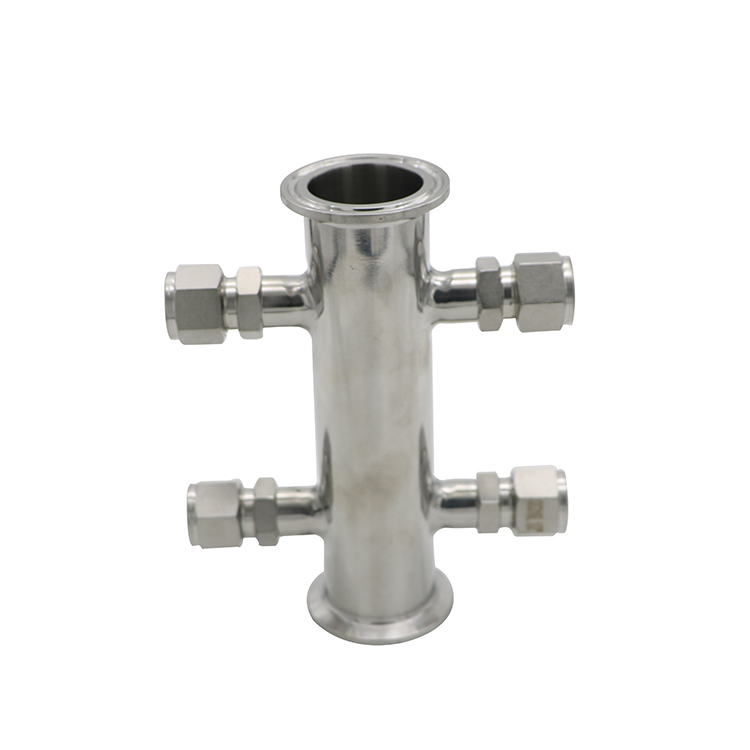

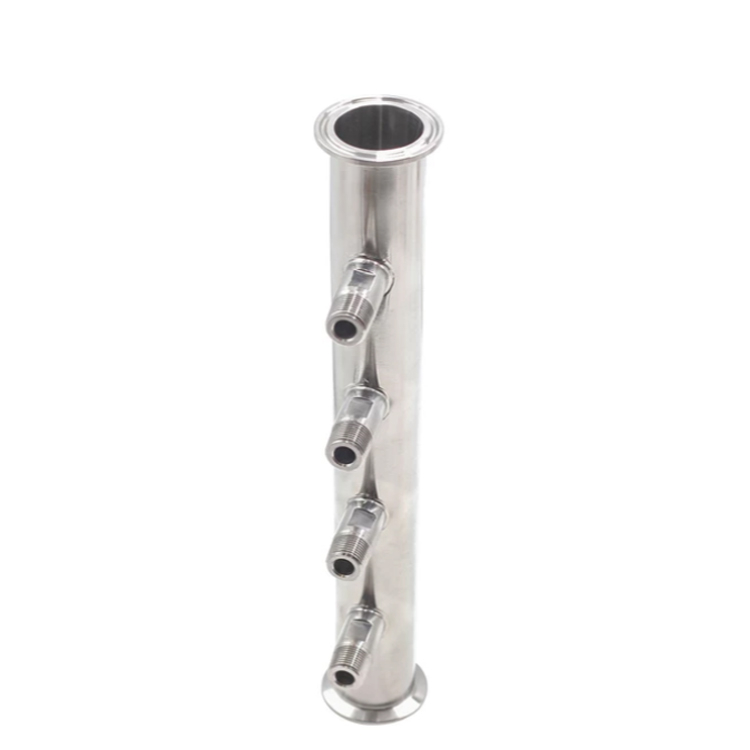

Threaded Stainless Steel Sanitary Manifold
Details:
Technics: | Casting |
Connection: | Clamp, Thread, Compression Adapter |
Shape: | Equal |
Head Code: | Round |
Size: | Customized Size |
Surface treatment: | Mirror Polished |
Our catalog and samples are available.
Manifolds are used in many industries to separate flows to a number of distinct process lines. Manifolds are a more economical solution than multiple tees, and more compact than multiple crosses. The immediate disadvantage of a manifold is that all of the ports on the manifold have a same direction. So that additional elbows or bends will be needed to redirect flow.

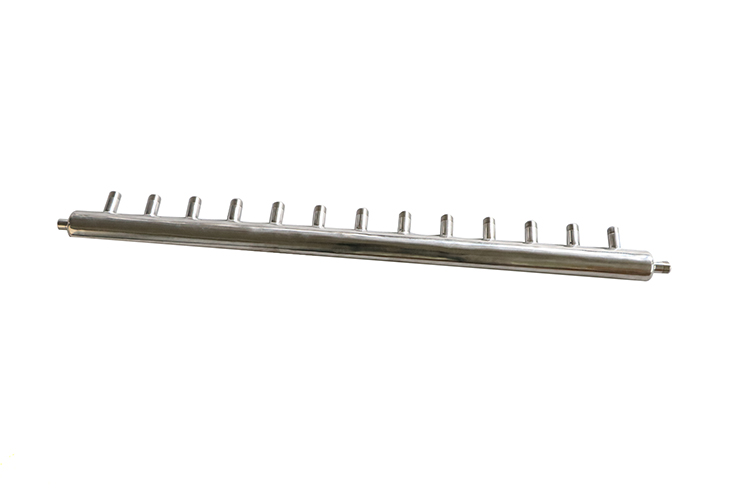

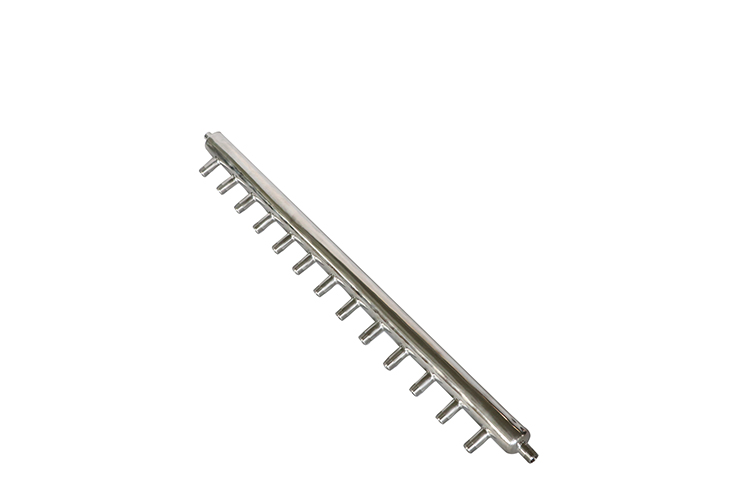

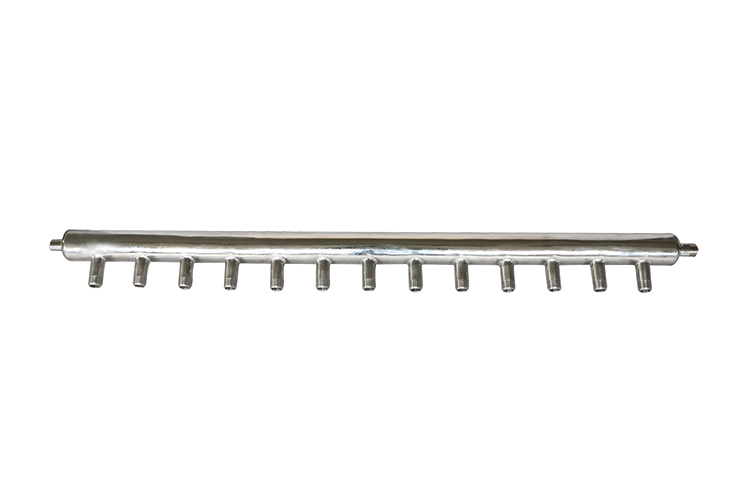

The ports can on the same side of the manifold, and can on the diferent sides of the manifold:
As for the connection types, there are three types:
tri-clamped compression fittings thread
