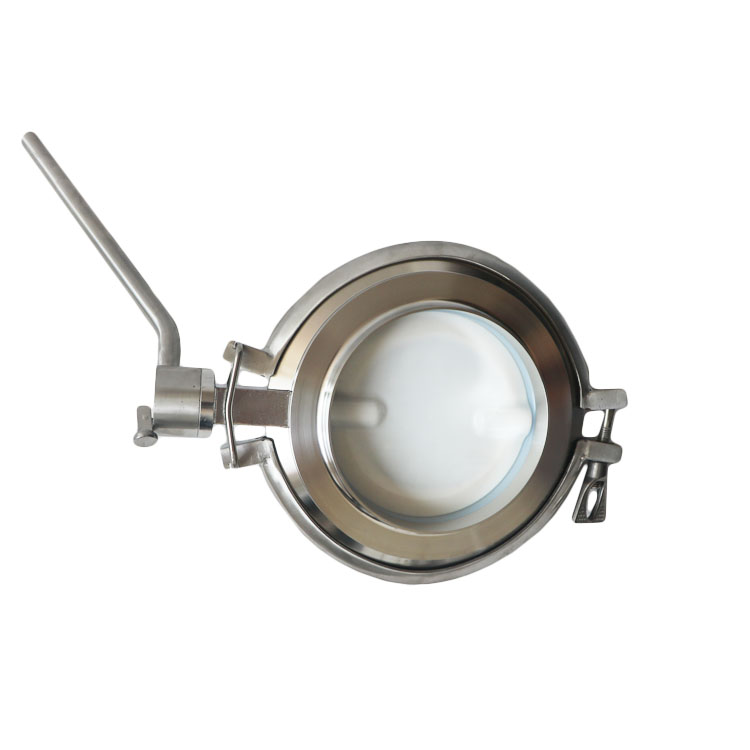

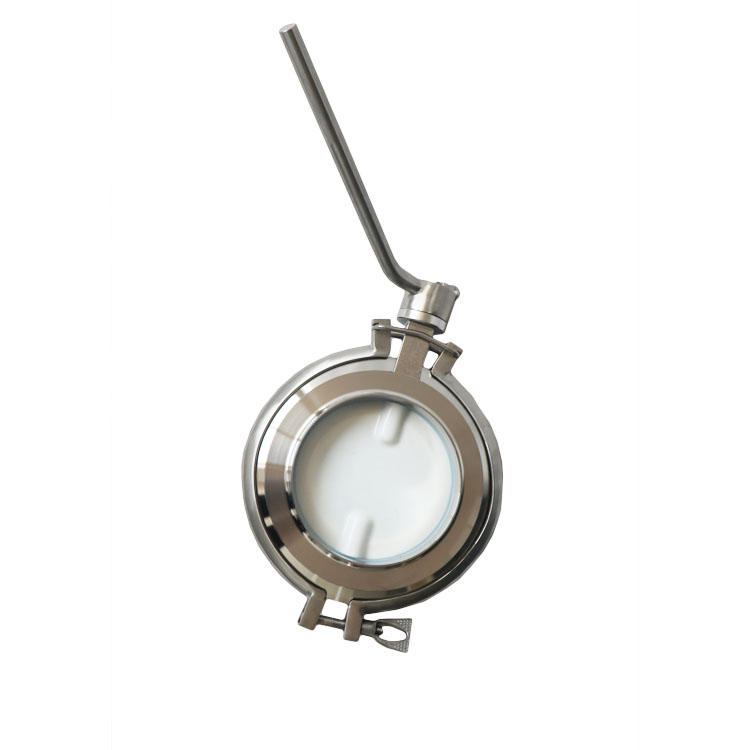

Hygienic Welded Powder Tight Butterfly Valves Wafer Tri Clamp connection-Can be operated by manual handle or Pneumatic actuated by aluminum actuator
Size : 4″ – 12″(DN100-DN300)
Body Materials: Stainless Steel 304 or 316L/1.4301,1.4404
Seat Materials: Silicone.
Disc:made from forged SS304 or SS316
Connections/discharge collars:Butt welded,clamped
The valve vane is available in two configurations:
1.Stainless steel disc,designed for powder use, provides an air tight seal in the closed position for complete containment.
2.A flexible silicone coated disc minimises product damage during interruption and isolation
of capsule or tablet flow
The valve body can is clamped around the vane by specially designed clamp.Simple to assemble and dismantle for easy and thorough cleaning,
Hygienic Welded Powder Tight Butterfly Valves Wafer Tri Clamp connection is usually installed at the bottom of tank for power or grain
DN300 Pneumatic butterfly valves for powder dispensing system
