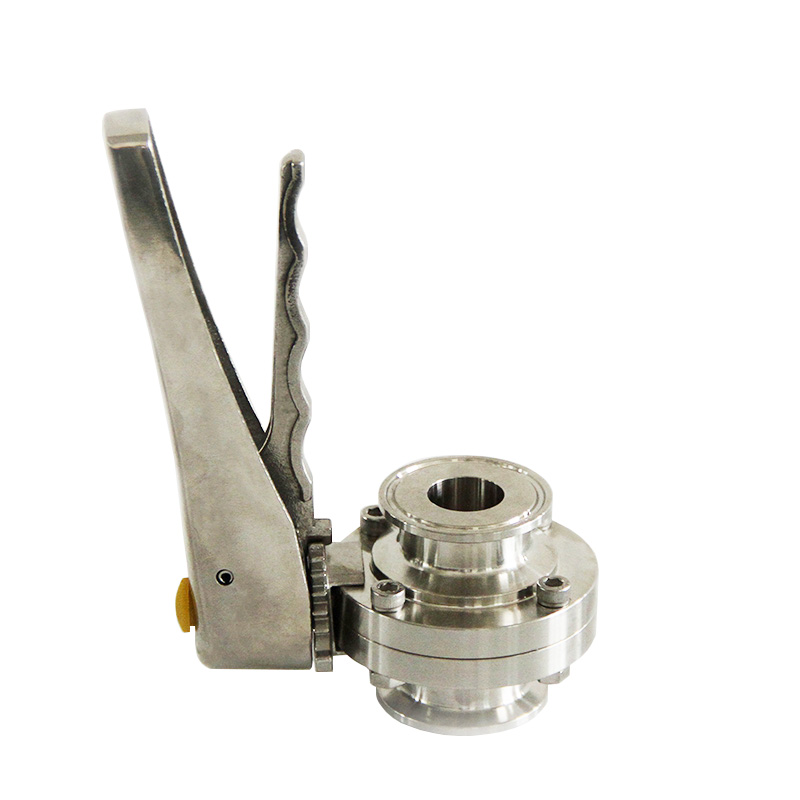

Sanitary Tri Clamp Butterfly Valve with Mirror Polished Trigger Handle

This hygienic butterfly valve featured compact and robust design, whether its manual or automatically actuated, performs under most arduous duties giving low pressure losses and perfect isolation.Applied in food, processing, beverage, dairy, wine making, chemical, cosmetic and oil making.Suitable for CIP / SIS in-line cleaning

Quantity:
  • SUNTHAI
  • SS304/SS316L

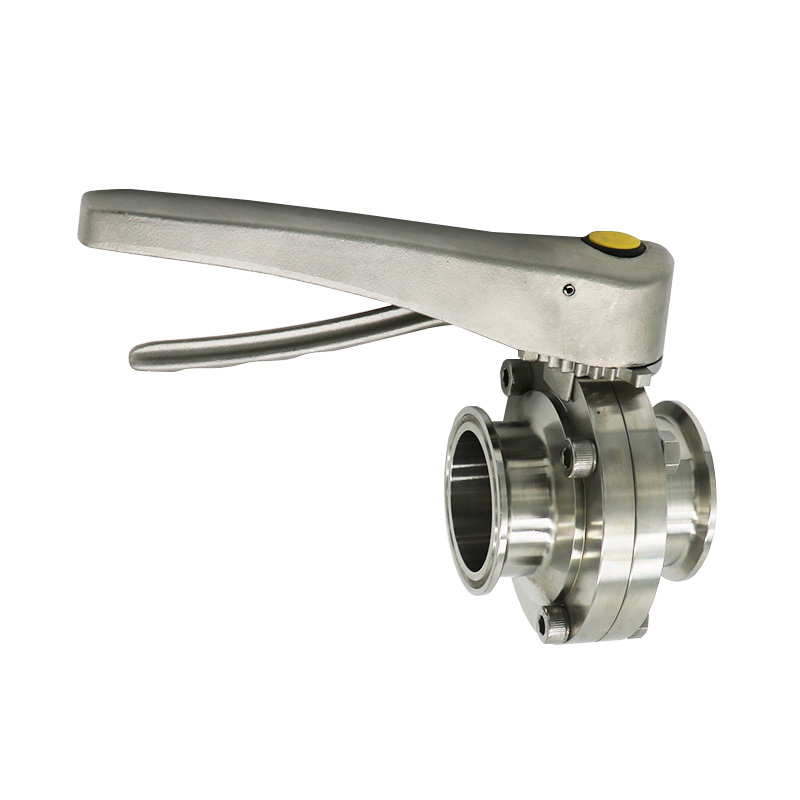

Sanitary Tri Clamp Butterfly Valve with Mirror Polished Trigger Handle

The manual butterfly valves are featured in low cost, easy maintenance, and simple structure. They are good choice for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical,Chemical industries

Size:  DN15--DN250,1/2"-10"
Stainless steel parts AISI304/304L,316/316L(Forged)
Gaskets EPDM,SILICONE,NBR,VITON with FDA certificate
Connection:  Welding, Clamp, Thread, Single-Welding, Single Thread ,Flanged
Standard:  DIN, SMS, 3A, ISO, IDF, RJT

Manual handle, pneumatic actuator and electric actuator can be exchangeable with each other
Handles types
Pulling Handle – 2/3/4 position
Square Pull Handle – 2/3/4 position
Multi-position Plastic Handle – Adjustment 15°  12 position

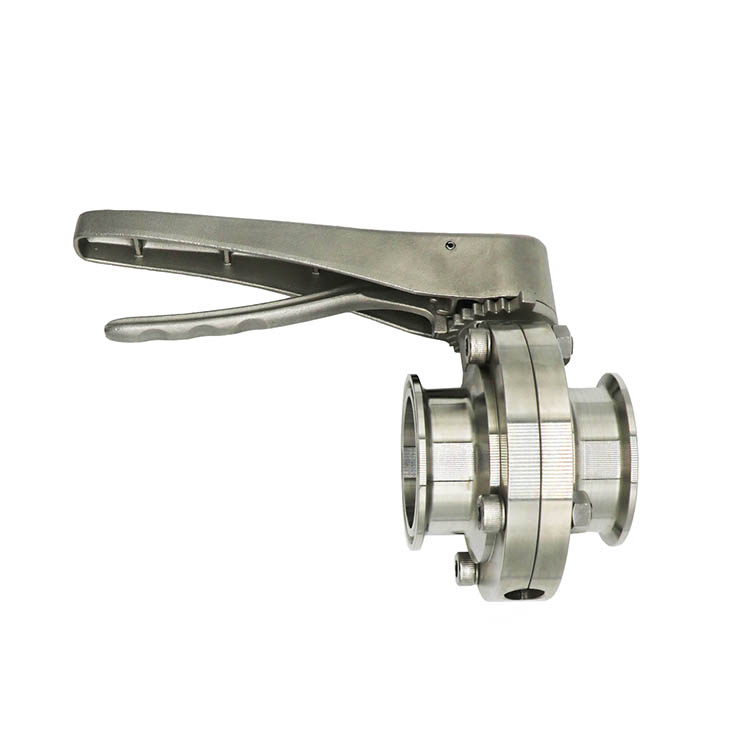

Stainless Steel triggle Handle – Adjustment 15°  12 position
butterfly valves handle type

Configurations of connection ends
Valve body can be interchangeable with any type of connection
sanitary butterfly valve connection ends

 Static seal temperatures

Gasket Properties EPDM VITON
Heat resistant Excellent (275°F) Excellent (400°F)
Cold resistant Good-Excellent (-20°F) Good-Excellent (-30°F)
Steam Good Excellent
Abrasion-resistant Good-Excellent  Good
Alkali Good Poor-Good
Acid resistance Good-Excellent  Good
Vegetable oil Good Excellent
Petroleum oil Poor Excellent
Oxonia Good-Excellent  Excellent
Ozone Good-Excellent

Excellent
