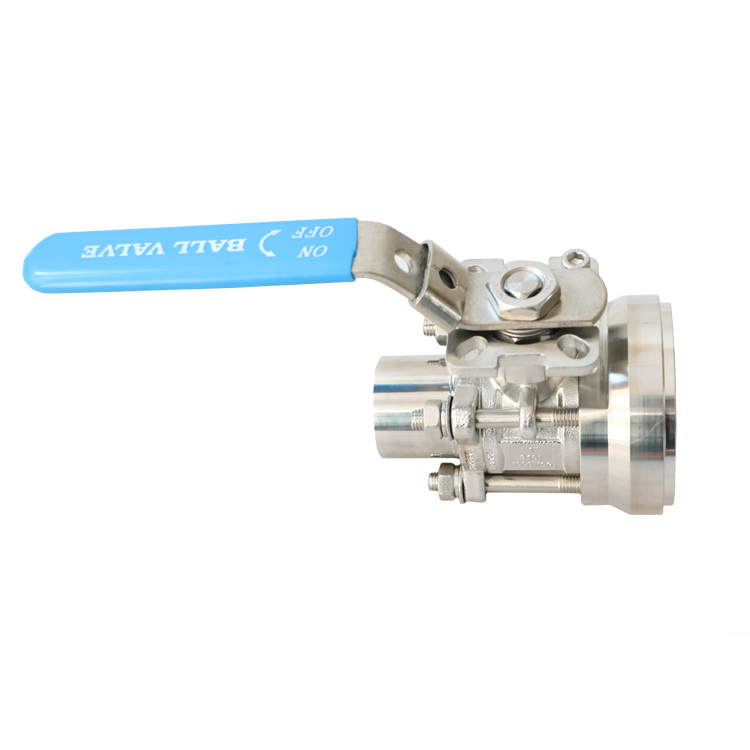

Hygienic Stainless Steel Manual Tank Bottom Ball Valve

Sanitary manual type tank bottom ball valve is designed for pressure vessels and tanks for dicharging and draining. Fully PTFE encapsulated ball core and self-sealing compensation design promise high pressure, high temperature resistance, small torque and long service life. It meets CIP / SIP cleaning and sterilization, ideal for most sanitary systems like biopharmaceutical service, food and beverage, dairy, chemical, etc.
Availability:
Quantity:
  • SUNTHAI

  • Stainless Steel

Hygienic Stainless Steel Manual Tank Bottom Ball Valve


Features:

Application:pharmaceutic,food and beverage,chemical industries etc

Valve body: SS316L, SS304, 1.4401, 1.4404
Valve body connections:TC,Welded,threaded.flanged
PTFE steam seats available for high temperature applications.Gasket materials complies with FDA 177.2600.
Cavity Filled seat
Working pressure to 1000 PSI WOG
100% air tested under water at 80-100 psi
Temperature range (PTFE) -20F to 350F
With lock on handle,ISO 5211 Mounting Pad
Full Port
Sizes 1″ – 4″/DN25-DN100
Standard of DIN, SMS, ISO, IDF, BPE

Options:
I. Pneumatic/Electrical Actuator
II. Solenoid Valve
III. Limit Switch Box
IV. Positioner


The types of ball valves that SUNTHAI can supply are: Hygienic Stainless Steel Manual Tank Bottom Ball Valve, 3-pc sanitary ball valve, 2 way ball valve, 3 way ball valve, portable direct way, butterfly type ball valve, pneumatic ball valve. srewed ball valves for industrial applications.

The valves can be manual operated,automatically controled by honrizontal aluminum actuator or electric actuator
