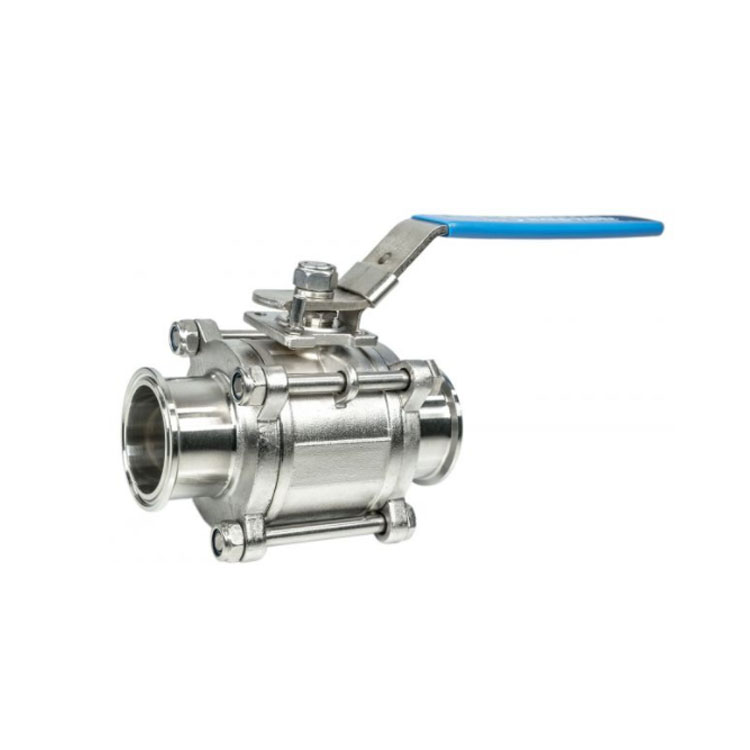

Sanitary 3-Piece Manual Tri-clamp Non Resort Ball Valve

Availability:
Quantity:
  • SUNTHAI

  • Stainless steel 304

Sanitary 3-Piece Manual tri-clamp Ball Valve with ENCAPSULATED SEAT

Features:
Valve body: SS316L, SS304, 1.4401, 1.4404
Valve body connected with heavy duty clamp
Valve body is renewable and interchangeable to other connections.TC,Welded,threaded
Small operated torque.
Easily disassemble without special tools.
PTFE steam seats available for high temperature applications.Gasket materials complies with FDA 177.2600.
Cavity Filled seat
Working pressure to 1000 PSI WOG
100% air tested under water at 80-100 psi
Temperature range (PTFE) -20F to 350F
With lock on handle,ISO 5211 Mounting Pad
Full Port
Sizes 1/2″ – 4″/DN15-DN100
Standard of DIN, SMS, ISO, IDF, BPE
The types of ball valves that SUNTHAI can supply are:2 way ball valve,3 way ball valve,portable direct way,butterfly type ball valve,srewed ball valves for industrial applications.
3-pc sanitary ball valve parts Part list

3-pc sanitary ball valve parts

NO NAME OF PARTS MATERIALS OPTION QTY
1 BODY A351 Gr. CF8M A351 Gr. CF8 1
2 CONNECTION A351 Gr. CF8M A351 Gr. CF8M 2
3 BALL SS 316 TFM1600 4
4 SEAT PTFE PTFE 2
5 GASKET PTFE PTFE 2
6 BOLT SS 304 SS 304 4
7 NUT SS 304 SS 304 4
8 STEM SS316 SS316 1
9 THRUST WASHER PTFE PTFE 1
10 o-ring VITON VITON 1
11 STEM PACKING PTFE TFM 1 SET
12 GLAND WASHER SS 304 SS 304 1
13 DISC WASHER SS 301 SS 301 2
14 NUT STOPPER SS 304 SS 304 1
15 STEM NUT SS 304 SS 304 1
16 SPACE WASHER SS 304 SS 304 1
17 HANDLE NUT SS 304 SS 304 1
18 STOP PIN SS 304 SS 304 1
19 HANDLE SS 304 SS 304 1
20 SLEEVE PP PP 1
21 SET BOLT SS 304 SS 304 1
PTFE SEAT FOR SANITARY 3-PC BALL VALVE

SPARE PARTS OF SANITARY 3-PC BALL VALVE
