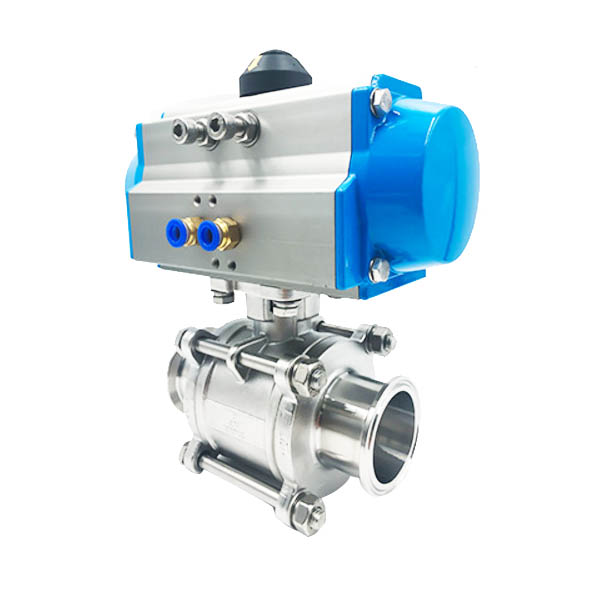

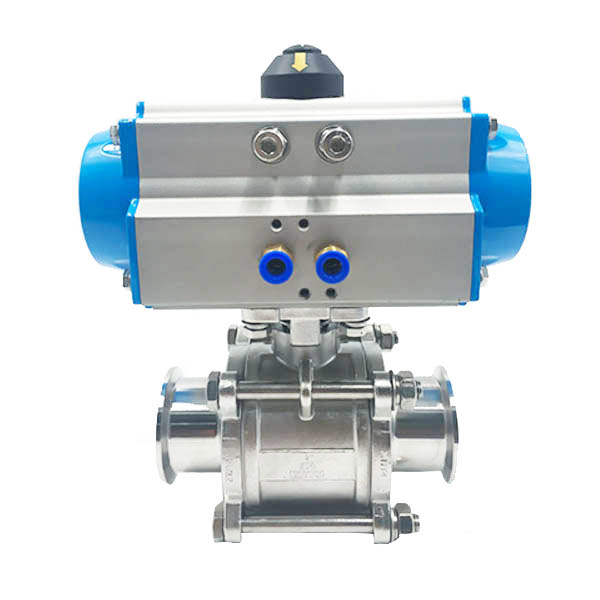

Pneumatic Sanitary 3-Piece Clamp Ball Valve With Aluminum Actuator


Sanitary 3-Piece Clamp Ball Valve With Aluminum Actuator(Air to Air or Air to Spring)

The pneumatic 3-Piece Clamp Ball Valves are used in pharmaceutic,food and beverage,chemical industries etc
Valve body: SS316L, SS304, 1.4401, 1.4404
Valve body connections”TC,Welded,threaded
PTFE steam seats available for high temperature applications.Gasket materials complies with FDA 177.2600.
Cavity Filled seat
Working pressure to 1000 PSI WOG
100% air tested under water at 80-100 psi
Temperature range (PTFE) -20F to 350F
With lock on handle,ISO 5211 Mounting Pad
Full Port
Sizes 1/2″ – 4″/DN15-DN100
Standard of DIN, SMS, ISO, IDF, BPE

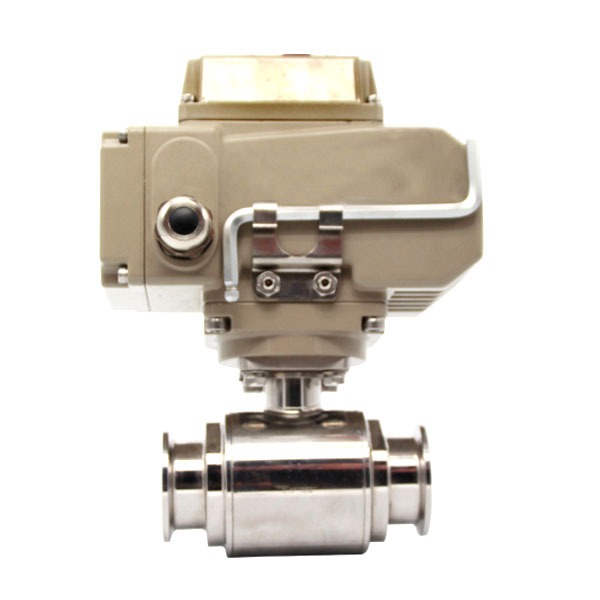

I. Pneumatic/Electrical Actuator
II. Solenoid Valve

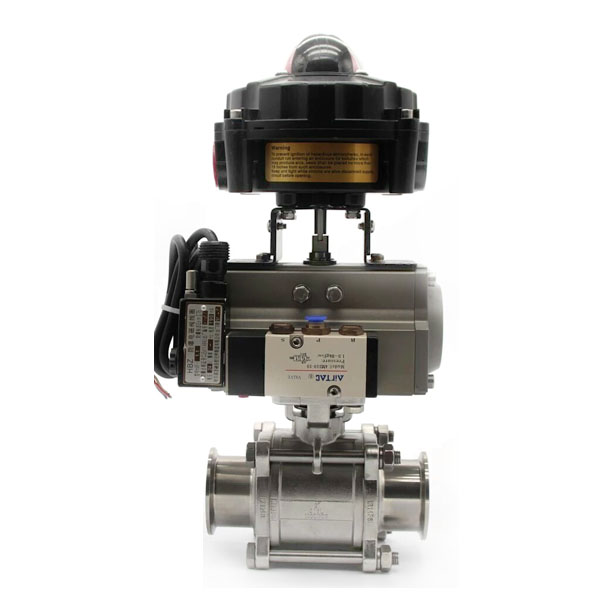

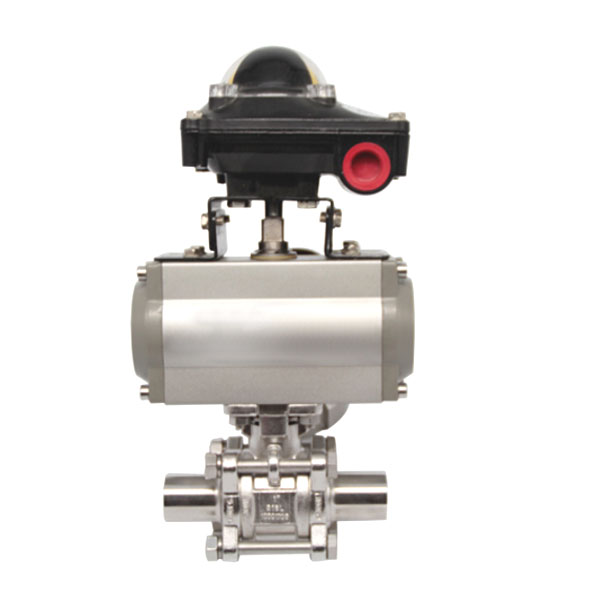

III. Limit Switch Box
IV. Positioner

The types of ball valves that SUNTHAI can supply are:3-pc sanitary ball valve,2 way ball valve,3 way ball valve,portable direct way,butterfly type ball valve,srewed ball valves for industrial applications.The valves can be manual operated,automatically controled by honrizontal aluminum actuator or electric actuator
