sanitary direct way ball valve with clamped ends

Availability:
Quantity:
  • BAV03

  • SUNTHAI

  • SS304/SS316

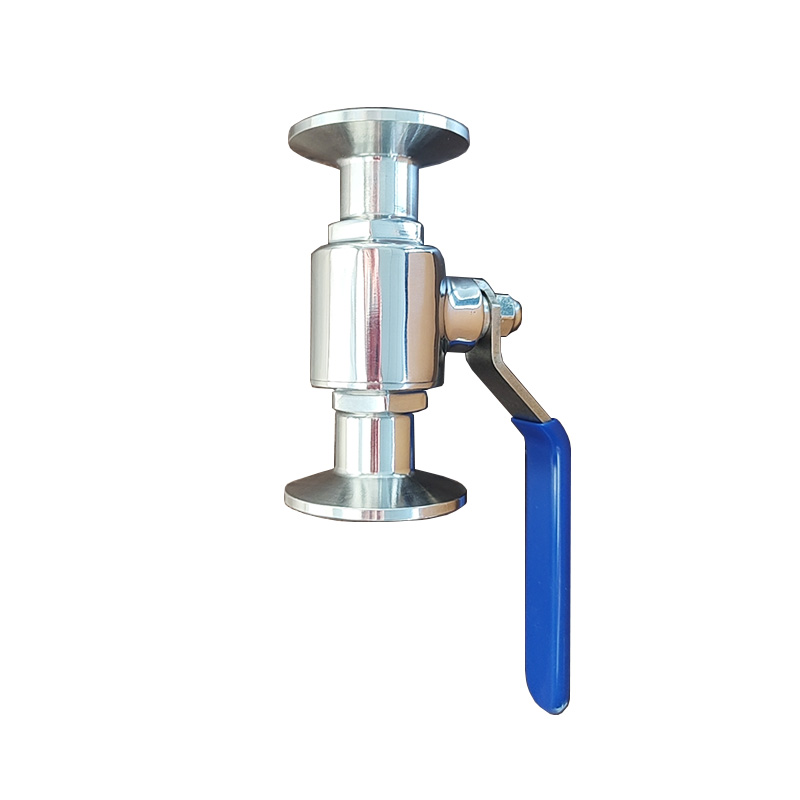

Sanitary direct way Ball Valve with tri-clamp end for homebrew

Features:
Valve body: SS316L, SS304, 1.4401, 1.4404
Valve body is renewable and interchangeable to other connections.TC,Welded,threaded
Small operated torque.
Easily disassemble without special tools.
PTFE steam seats available for high temperature applications.Gasket materials complies with FDA 177.2600.

Sizes 1/2″ – 4″/DN15-DN100
Temperature: -20C-120 C
Max Pressure: 10 Bar
Norms: 3A, DIN, SMS, ISO, IDF
Sanitary direct way ball valve is smaller and lighter than other types of ball valves.So it is very cost-effective.It is can be both manaully operated and automatically controlled by aluminum actuator

The types of ball valves that SUNTHAI can supply are:2 way ball valve,3 way ball valve,sanitary direct way ball valve,butterfly type ball valve,srewed ball valves for industrial applications.


stainless sanitary clamped ball valve

 sanitary 2 way ball valve

stainless sanitary clamped ball valve
