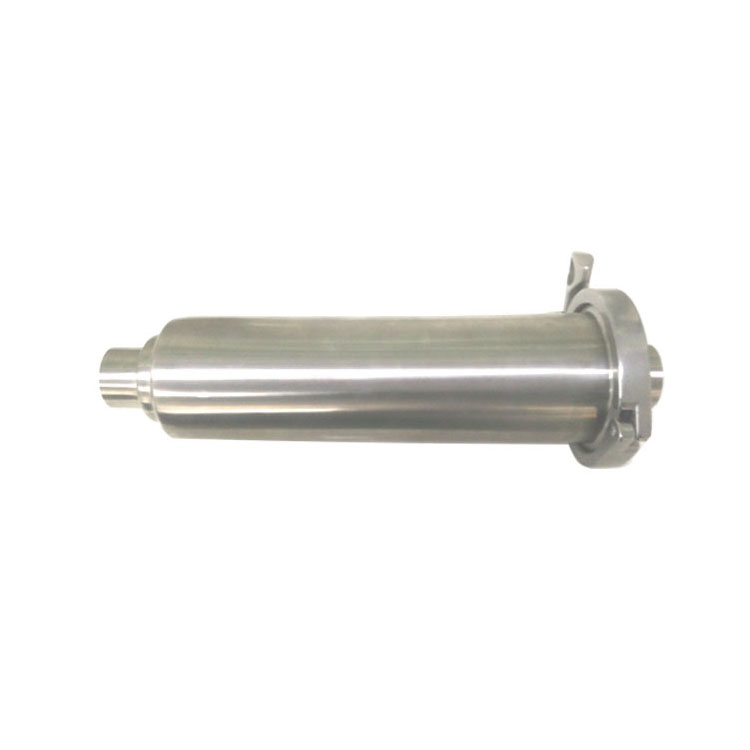

Sanitary Inline Stainless Steel Straight Filter Equipment

Sanitary Filter is used to eliminate particulates from pipelines,so as to protect pumps,meters and some other equipment. When liquids flow through the screen,impurity can be held up. And then pure liquids come out through the outlet. It is easy to clean,you just draw out the filter screen.And put it back after cleaning,it is a very convenient process

Quantity:
  • SUNTHAI
  • SS304/SS316L

Sanitary Inline Stainless Steel Straight Filter Equipment is to ensure proper straining and increase productivity.When using Sanitary Filter, you must break a process line for cleaning
Sanitary Inline Stainless Steel Straight Filter can be fitted with stainless steel perforated basket,mesh screen overlays,sheet wedge wire
Features:
Stainless Steel parts: SS304,SS316L
Size: 1”-4”/DN25-DN100
Connection ends: weld,clamped,Threaded,union/nut
Seal: EPDM,silicone
Inside mirror polished to Ra≤0.4μm,Outside can be mirror polish or Satin polish to 180 grit(Ra ≤0.6µm)
Perforated hole diameter:0.5-3mm
Sreen mesh size & microns: 30-200mesh
Max working pressure:0.6MPa / 1.0MPa
Working temperature: -20℃ to +135℃


Sanitary Inline Stainless Steel Straight Filter with TC end

The sanitary stainless steel strainers series include inline straight filter,90 degree angle type(side entry port) strainer,Y type filter,Cartridge filter housing,tank breather filter.Duplex filter,Muti-bag filtering,Lenticular Filter Housing
