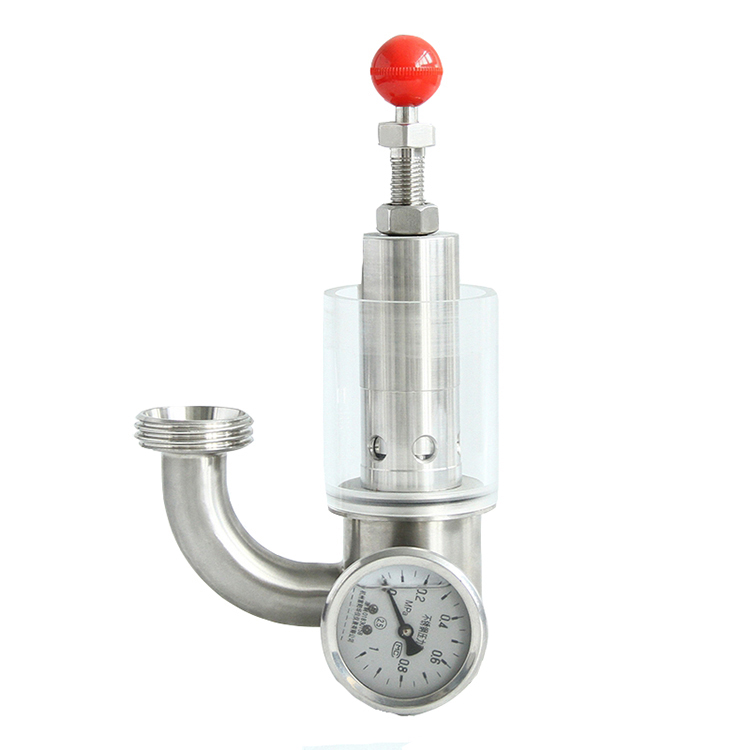

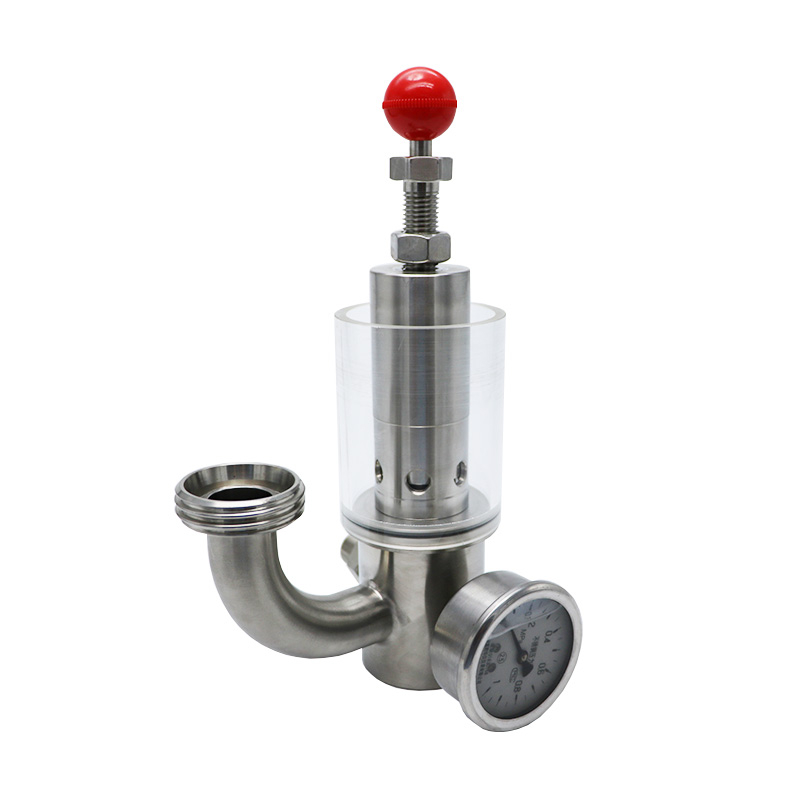

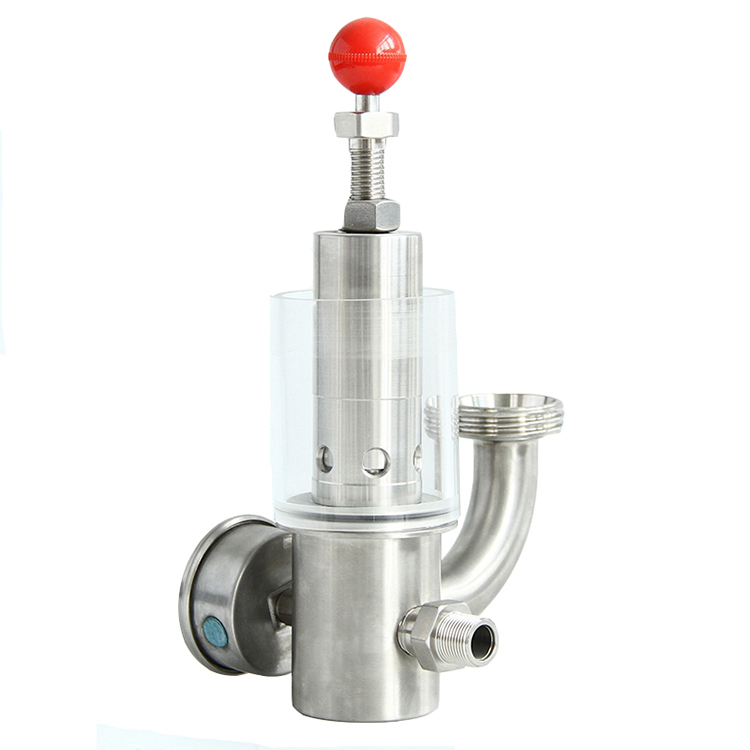

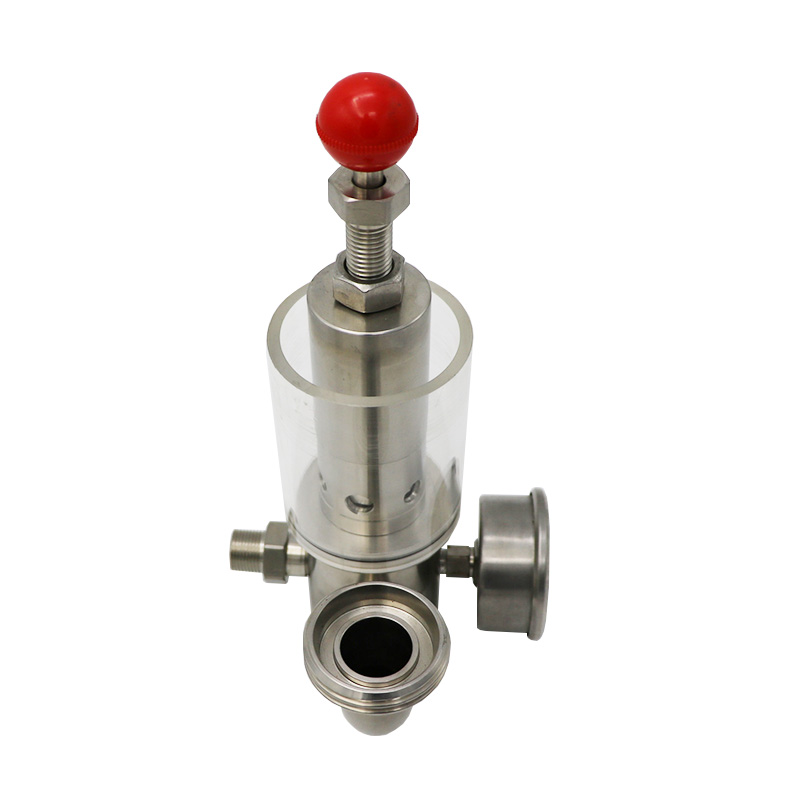

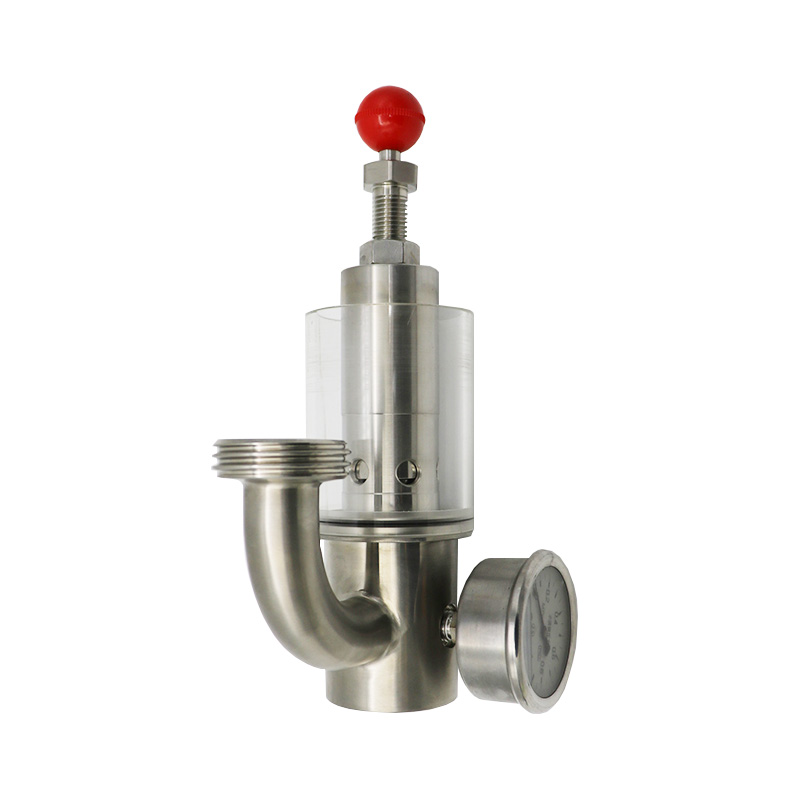

Sanitary Safety Exhaust Valve with Pressure Gauge for Fermentation Tank

Quantity:

Sanitary Safety Exhaust Valve with Pressure Gauge for Fermentation Tank is a self-acting device,or could be manually operated to exhaust air out of tanks.With pressure gauge options,precise pressure value can be monitored.
Wenzhou SUNTHAI Valve Co., Ltd. specializes in producing various of valves for beer fermentation tanks,such as sanitary safety valves,Air release Valve,Pressure overflow valves,rebreathing valve,Exhaust valve with gauge,Sampling valves,Vent valve,Vacuume valve and other high precision valves.
Features:
Size: 1”-1.5”, DN25-DN40
Tube arm size:0.5″-4″
Adjustable pressure range:0-1Mpa
Wetted Stainless Steel part are in SS304/SS316
End port:clamped,welded,threaded,RJT flat face for CIP.Nut/liner
Norms:DIN,SMS.3A.ISO,RJT
Material of gasket: EPDM NBR FPM.
High tempered glass for viewing
Installation:supposed to be installed laterally
Max. temperature 120℃ (EPDM) .
Standard Working Pressure:14.5PSI(1 Bar).Or adjust to given pressure before dispatching
Surface finish: Sand blasting, or mirror polished
Operating:Manual
