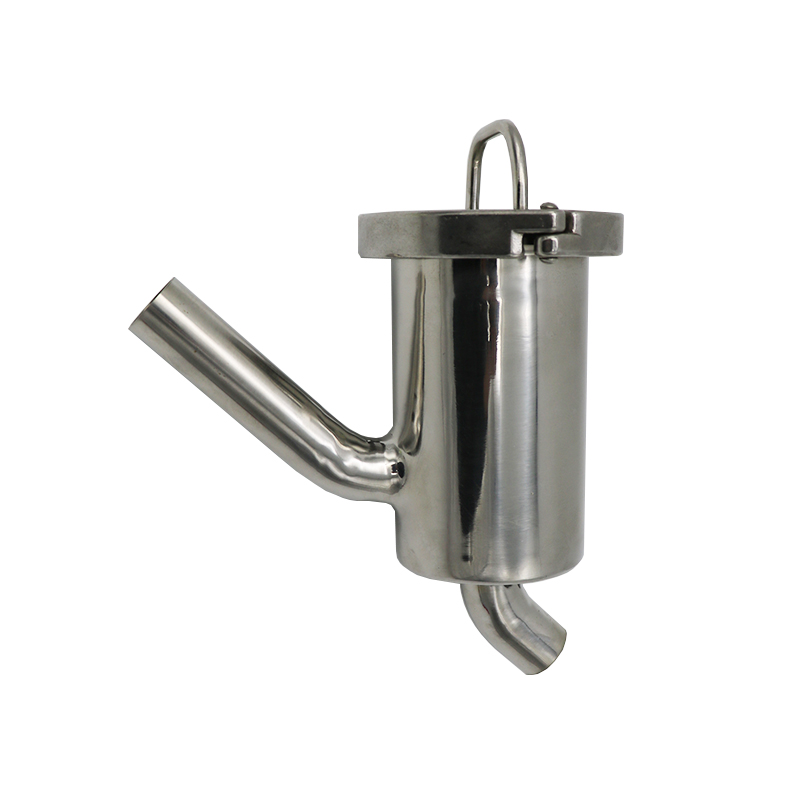

Sanitary Stainless Steel Y Type Filter Strainer with Ferrule End Cap

Sanitary Y Strainer name after the shape that looks like a “Y”, by filtering the impurities in the process. Sanitary Y strainer enables the pipeline produce purified liquids, it is widely used in the equipment of Brewery, Beverage, Biopharmaceutical etc.
  • F04
  • SS304/SS316L

Sanitary Stainless Steel Y type Filter Strainer with Ferrule End Cap can be fitted with stainless steel perforated basket,mesh screen,sheet wedge wire

Stainless Steel parts: SS304,SS316L
Size: 1”-4”/DN25-DN100
Connection ends: weld,clamped,Threaded,union/nut
Seal: EPDM,silicone
Inside mirror polished to Ra≤0.4μm,Outside can be mirror polish or Satin polish to 180 grit(Ra ≤0.6µm)
Perforated hole diameter:0.5-3mm
Sreen mesh size & microns: 30-200mesh
Max working pressure:0.6MPa / 1.0MPa
Working temperature: -20℃ to +135℃

The sanitary stainless steel strainers series include inline straight filter,90 degree angle type(side entry port) strainer,Y type filter,Cartridge filter housing,tank breather filter.Duplex filter,Muti-bag filtering,Lenticular Filter Housing

3 inch y filter

hygienic stainless steel strainers for beverage,dairy
