Sunthai
SS304/SS316L

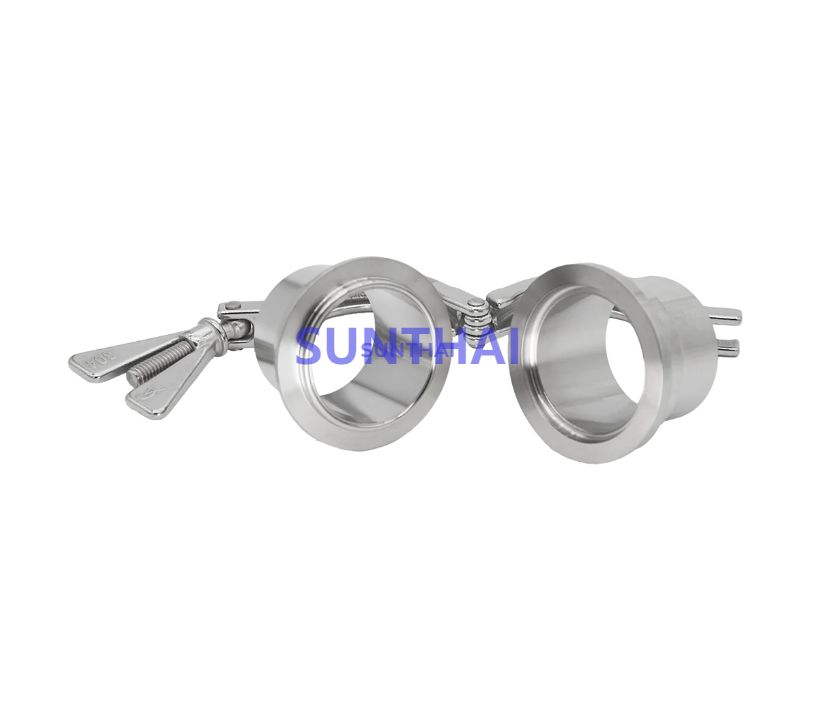

DIN 11864-3 Clamp couplings
Details:
| Body Material: | SS304(1.4301)/SS316L(1.4404) |
| Max Working Pressure: | 10 bar |
Standard: | DIN11864, DIN11853, ISO |
| Connection: | clamped |
| Shape: | Equal |
| Parts list: | ferrule,gasket,single pin clamp or double pin clamp |
| Surface treatment: | CNC machined Ra<0.6μm |
| Applications: | DIN11864-3 clamp couplings used in clean and hygienic process installations. These stainless steel fittings are suitable for food and dairy systems. |
If you are interested in this product, please be free to contact us for more details.

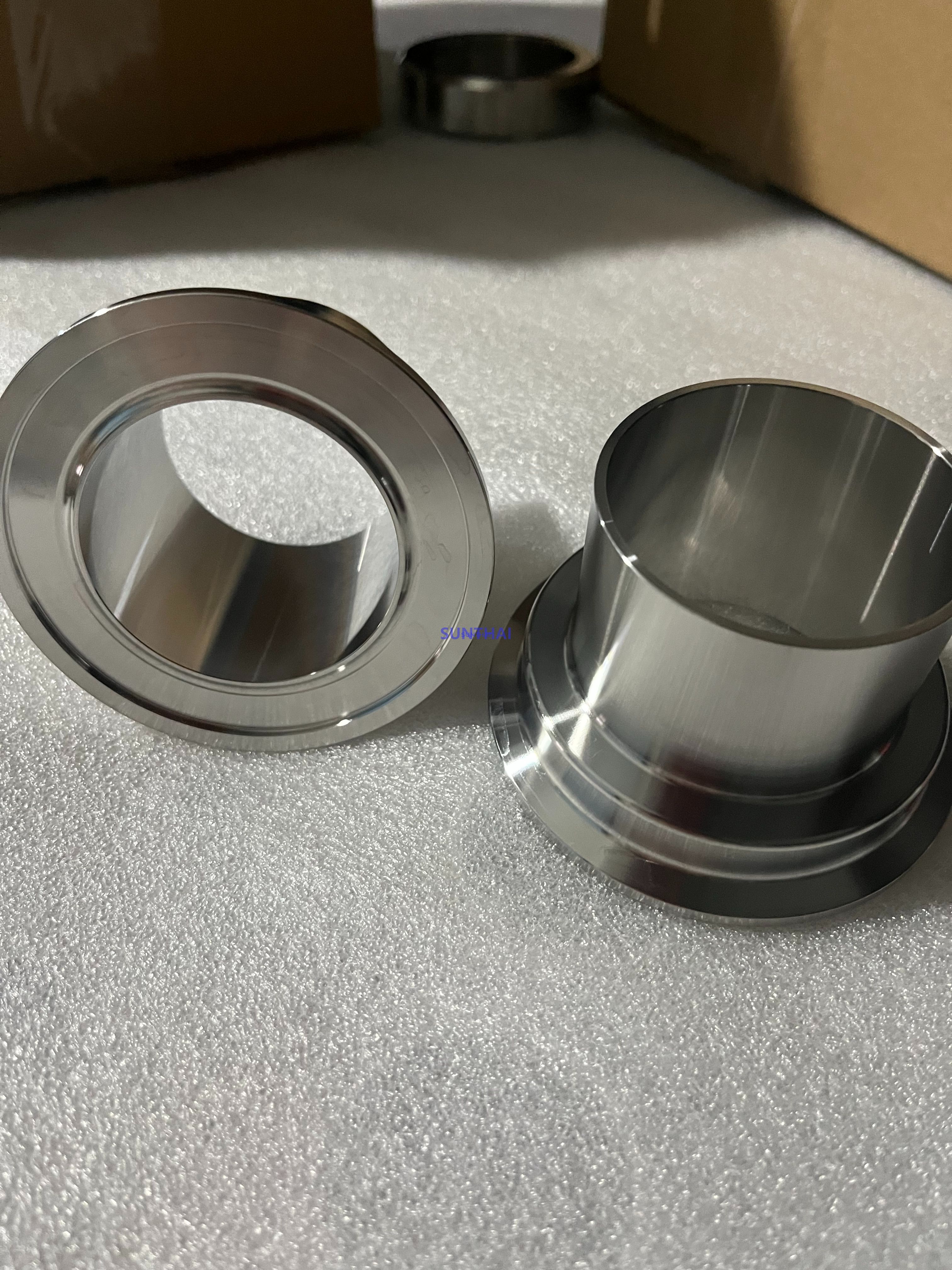

The German standards DIN 11864‑3 and DIN 11853‑3 define stainless steel clamp fittings for aseptic and hygienic applications. Type 3 refers specifically to aseptic clamp connections (tri‑clamp compatible), while Form A denotes an integral O‑ring groove (O‑section) machined directly into the ferrule. The seal is positioned between the male and female ferrules, ensuring a dead‑leg‑free, cleanable joint.
These fittings are widely used in:
Pharmaceutical sterile processing (WFI, SIP/CIP skids)
Biotechnology & fermentation
Chemical industry with high purity requirements
Aseptic food and cosmetic lines

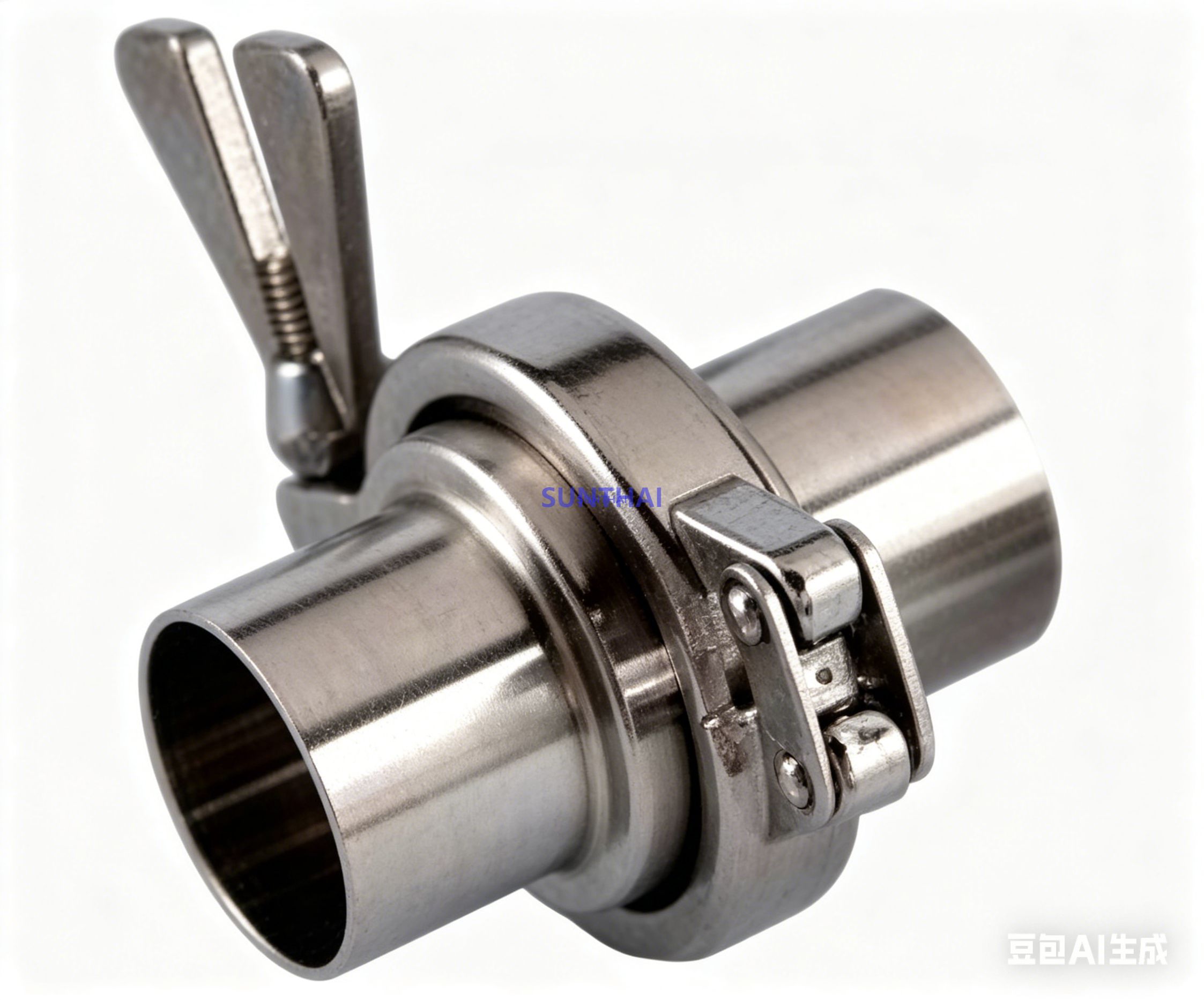

Standards: DIN 11864‑3 (aseptic, long weld end) and DIN 11853‑3 (hygienic, short weld end)
Type: Form A (O‑ring groove, O‑section)
Material: Stainless steel 316L (1.4404 / 1.4435)
Size range: DN 10 to DN 100
Manufacturing origin: Made in Europe – full traceability
Surface finish: Ra ≤ 0.8 μm internal (H3), optional higher grades
Sealing compatibility: EPDM, VITON.SILICONE.
✅ European manufacturing – consistent quality & short lead times
✅ Full DN range from 10 to 100 mm
✅ Compatible with both DIN 11864‑3 (aseptic) and DIN 11853‑3 (hygienic) clamp systems
✅ O‑ring groove (Form A) ensures reliable sealing without additional retainers
✅ Ideal for orbital welding (DIN 11864‑3) or manual welding (DIN 11853‑3)
We offer DIN 11864‑3 and DIN 11853‑3 Form A fittings from DN 10 to DN 100 /ISO21.3 to 3"ISO88.9– all made in Europe. Contact us for certificates, 3.1 material test reports, and custom manufacturing.
