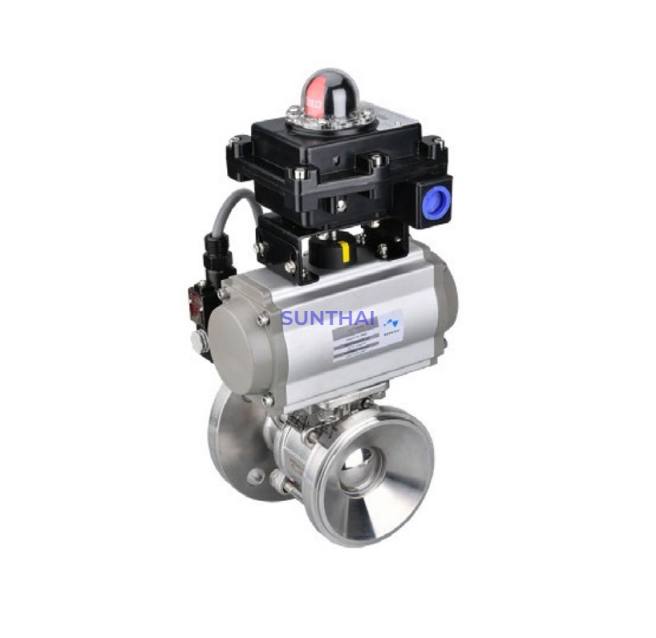

Stainless Steel Pneumatic Tank Bottom Ball Valve

Share to:

Pneumatic Tank Bottom Ball Valve

This ball valve is a tank bottom valve specifically designed for the emptying and
discharge medium from pressure vessels and tank equipment. It is featured with full cavity seat and automatically compensates design, so it can bear with high pressure and high temperature.It is applied for CIP and SIP cleaning and sterilization. It is very suitable for application in high purity process systems such as biopharmaceutical,foodand beverage, dairy, chemical and other fields.
Various actuators can be configured,such as electric,pneumatic.which can be interchanged.

Unit Price:	Contact Us For Price
Availability:

Quantity:



Inquire Add to Basket

Brand:
SUNTHAI
Material:
Stainless Steel

Product Description

Stainless Steel Pneumatic Tank Bottom Ball Valve

Max pressure	0.3～0.8Mpa
Operating Temp	－20℃～＋80℃
Double Acting	0℃～90℃
Size	DN25～DN100 & 1"～4"
Standard	DIN, ISO, SMS, etc
Material	SS304 or SS316L
Connection	Clamped, threaded, welded, flanged

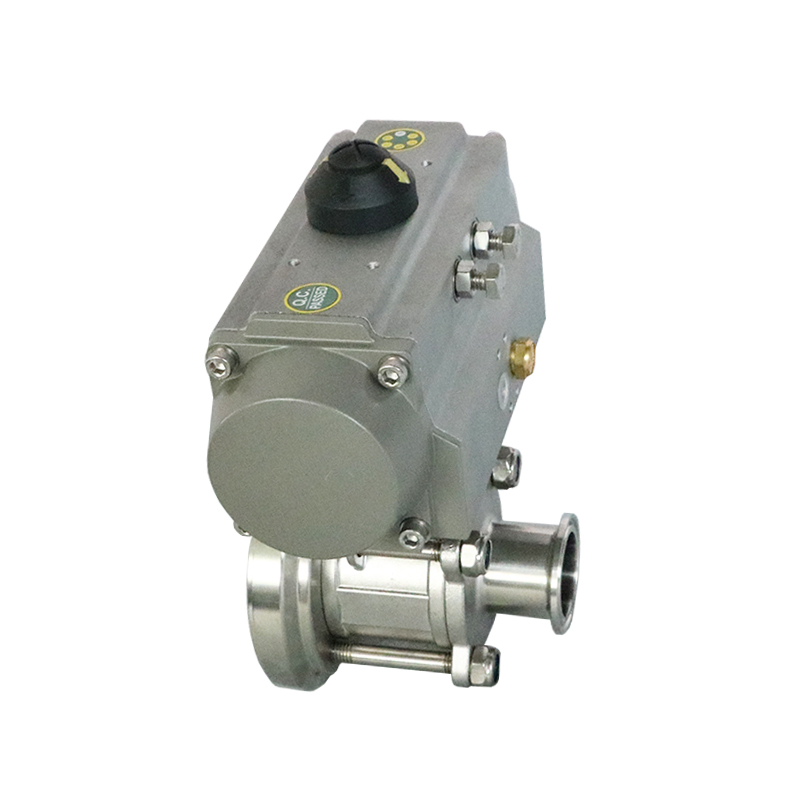

The stainless steel pneumatic tank bottom ball valves are for applications where a tank pad allows smooth flow, which results in a perfect adapter between the tank and valve. With FNPT thread, butt weld, flange, sanitary tri clamp, and tube ends, all available on the pipe side, in sizes 1" to 4".

Application:

Used in food processing ingredients can, cosmetic mix vessels, chemical mixing tank, biological reaction tank, and so on.

sanitary ball valve ball valve Packing Product Application Workshop
