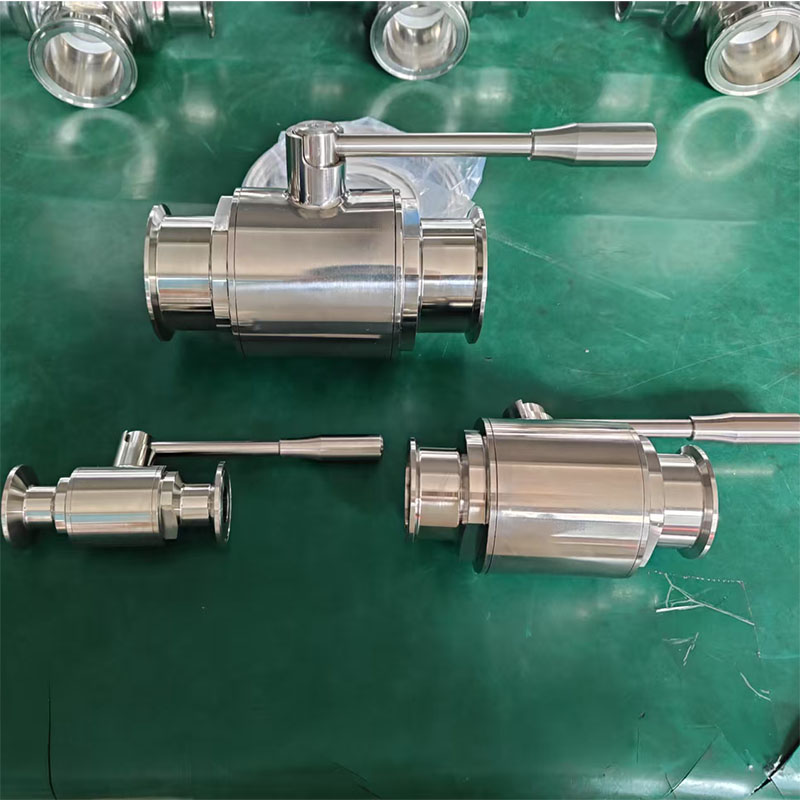

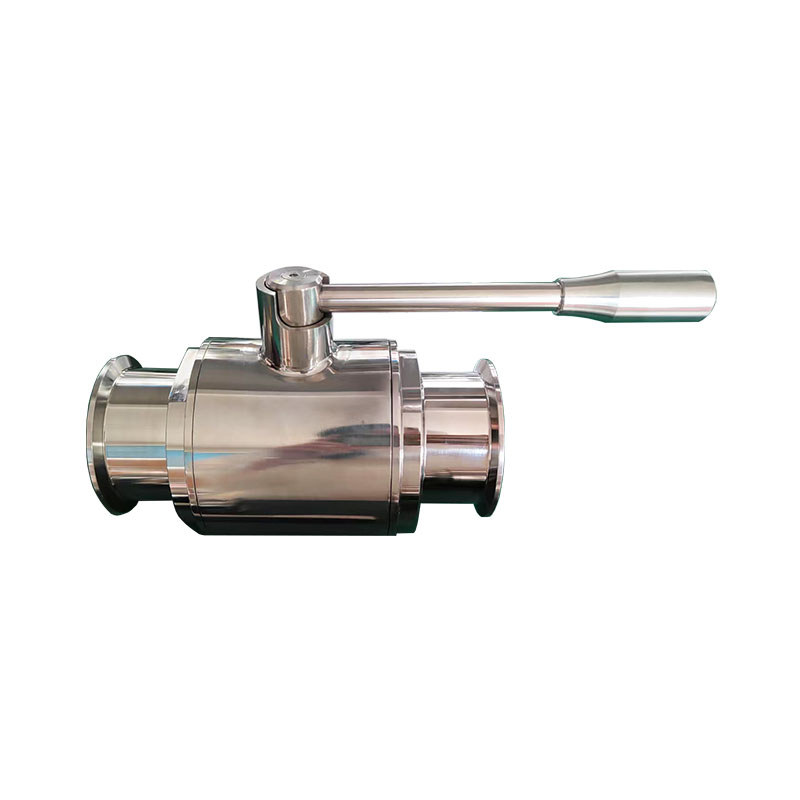

Sanitary Stainless Steel Direct 2 Way Ball Valve

Sanitary direct way ball valve is operated manually by 180° rotary handle.The valve is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design makes it an optimum choice for viscous and particulate liquids

Quantity:
  • BAV06
  • SUNTHAI
  • SS304/SS316

Sanitary Manual 2 way Tri Clamp full port Ball Valve

Sizes: 1/2" to 4" (DN15-DN100)

End connection: tri-clamp / tri-clamp.female,male,welded

Body & Disc: AISI 304 or 316L, (EN1.4301/EN1.4404)

Seat: Cavity Filled Teflon (PTFE) + EPDM/VMQ (Silicone)/Viton (FPM) Gaskets, FDA.

Max. working pressure: 145psi (10bar)

Temperature range: 14°F ~ 248°F (-10°C ~ 120°C) as default, higher available upon request.

Operation: Manual Handle,pneumatic actuator

●Free of maintenance

●Compact design, small and light

● Small operating torque

hygienic direct way ball valve for winedirect way ball valve
