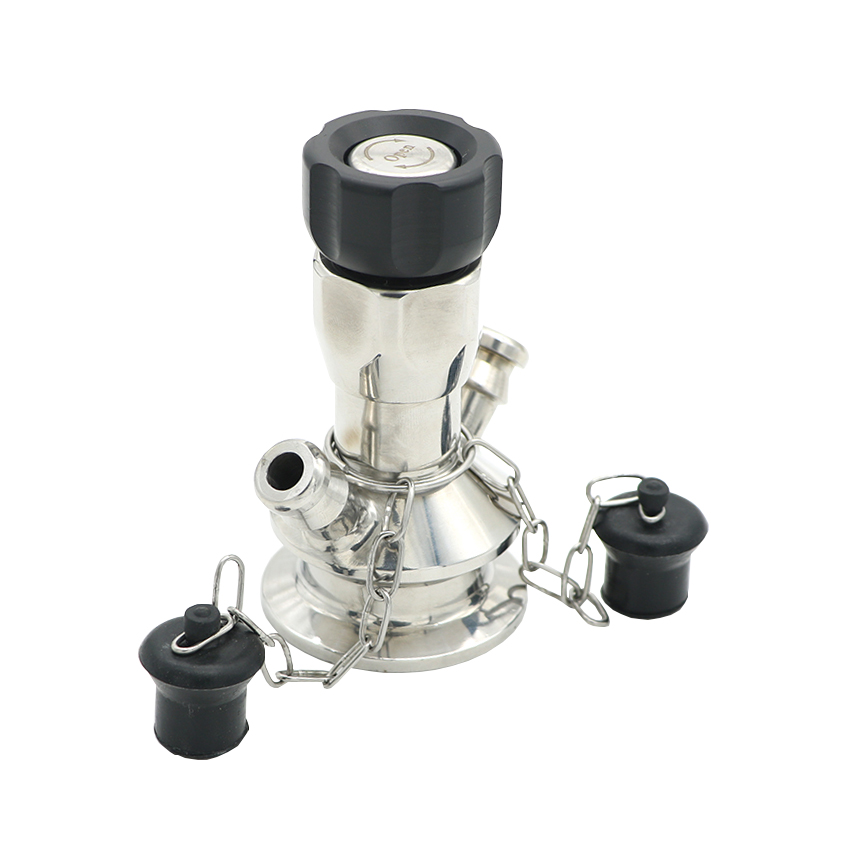

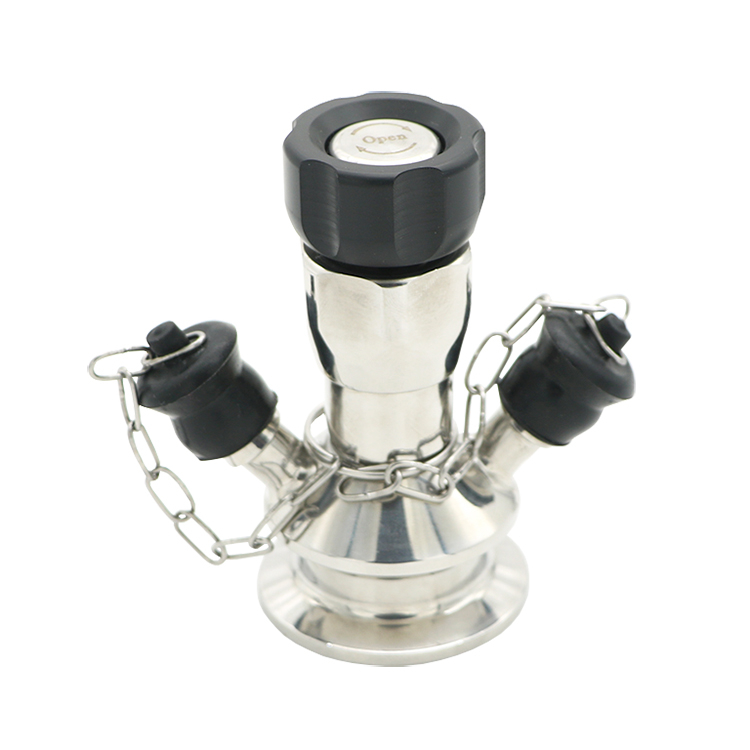

Aseptic Sampling Valve with Tri-Clamp Automatic Return Type
Aseptic Sampling Valve with Tri-Clamp Automatic Return Type are widely applied to get sample from pot body or pipeline under aseptic condition,and can conduct sterilization treatment before and after each sampling.So as to prevent the secondary pollution.
Steam or alcohol can be used for in situ-sterilization.
Diaphragm replace the seal ring structure.no dead ends,more through sterilization
Outfall increased so that dirt can removed in time after the sterilizaton
Adjustable sampling can achieve a lot of samplng and micro-sampling.
The valve comes with a mini tri-clamp connections on in-/outlets. Valve heads come with diffrent operations and membranes.
Working Principle:
(adjustable valve) or by activating the lever (on/off valve)
Valve open: Sampling
The manual valve is opened by rotating top wheel.Its stem and diaphragm are then retracted, allowing liquid to pass.
Valve close: Sterilizing
Using reverse procedure the built-in spring shut off the valve, keeping the channel between the hose pieces open for sterilization. If using steam a small pressure relief valve (optional) on the outlet is recommended.
Features:
Connections: thread(BSP/NPT), clamped, weld
Size: 3/4″, 1/2″
Temperature: -10℃ to 120℃ /14°F to 248°F
Body material: AISI304/316L
Gasket:Silicone,EPDM with FDA 177.2600
Operating: manual or pneumatic
Internal surface finish: Ra 0.4μm
Max. pressure: 10bar(valve close)
Max. pressure: 5bar for silicone(valve open)
10bar for stainless steel part(valve open)
TIPS:Gasket is suggested to be replaced after 100 times sterilization.
Packaging: Individually packed with bubble plastic bag or wrapped,then in carton,finally with plywood case or pallet
Delivery Port: Shanghai Port or Ningbo Port.
Shipment Terms: FOB, CFR, CIF, EX-WORKS
Minimum Order: 1Set
Delivery Lead Time: 7 days after order is comfirmed.
Export Market: European,North America.Latin America, Southeast Asia, MID East,etc
