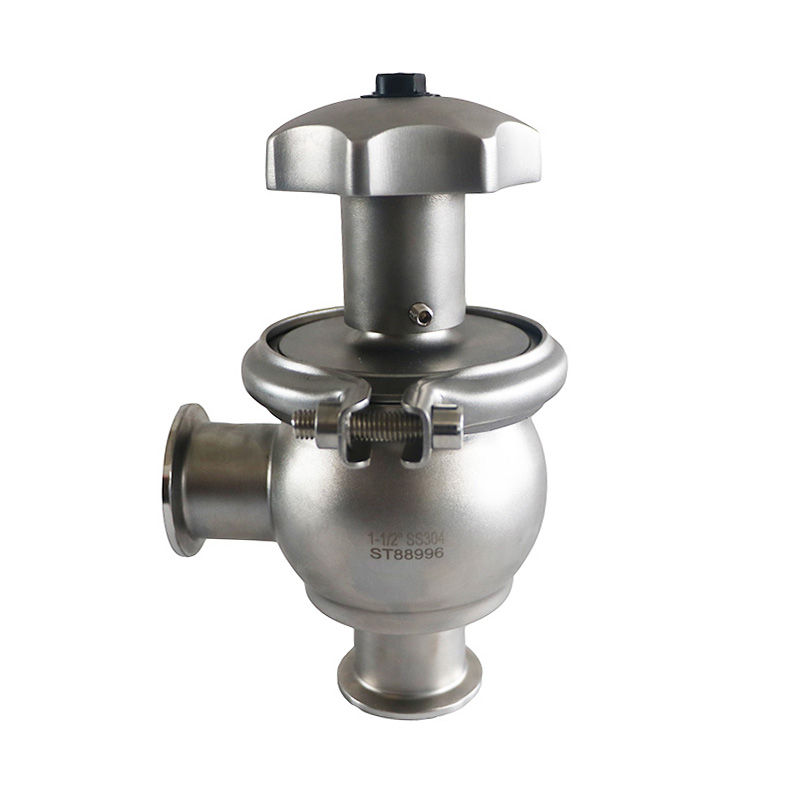

Sanitary Manual Flow Regulating Seat Valve

Sanitary flow control single seat valve for hygienic applications. Its main function involves regulating flow, controlling pressure.Proportional pneumatically actuated valve designed for flow control in installations in the dairy and food processing industries, beverage production, pharmaceutical and fine chemicals industries.
  • SS304/SS316L

Sanitary Manual Flow Regulating Seat Valve,widely used for food, beverage, water, dairy, pharmacy, chemical, pharmaceutical industry, etc
Flow diversion valve body &plug are made from precision casting
Stainless steel parts: AISI304/SS316L
FDA approved gaskets in silicone, EPDM, viton, PTFE
End ports: butt welded,Tri clamped,threaded
Inner surface finish is Ra≤0.6μm to meet the requirement of food industries
Max. Pressure:8bar
Switches position sensors are optional
C top control unit or positioner is also optional
Standard series:24V/DC,110-220V/AC
Actuator span life:more than 500 thousands times
Seal span life:more than 100 thousands times
Normally closed valve is the default version.Normally closed and normally open are interchangeable by rotating the pneumatic cylinder 180°.

Simple to change the structure and low maintenance cost
Cost-efficient leakage protection
Flexible valve body combinations
Ultimate in easy cleaning, low maintenance design
Low spare part cost
The valve is compact, durable and easy to operate

Manual Regulating flow control Valve

Manual Regulating flow control Valve

Sunthai also manufacture manual flow divertion valves,sanitary butterfly valve, sanitary ball valve, sanitary diaphragm valve, sanitary regulating control valve,Tank bottom valves, pressure reducing valve.Please contact us to get the latest products specifications
