Automatically Controlled Sanitary Ball Valve With SS Actuator

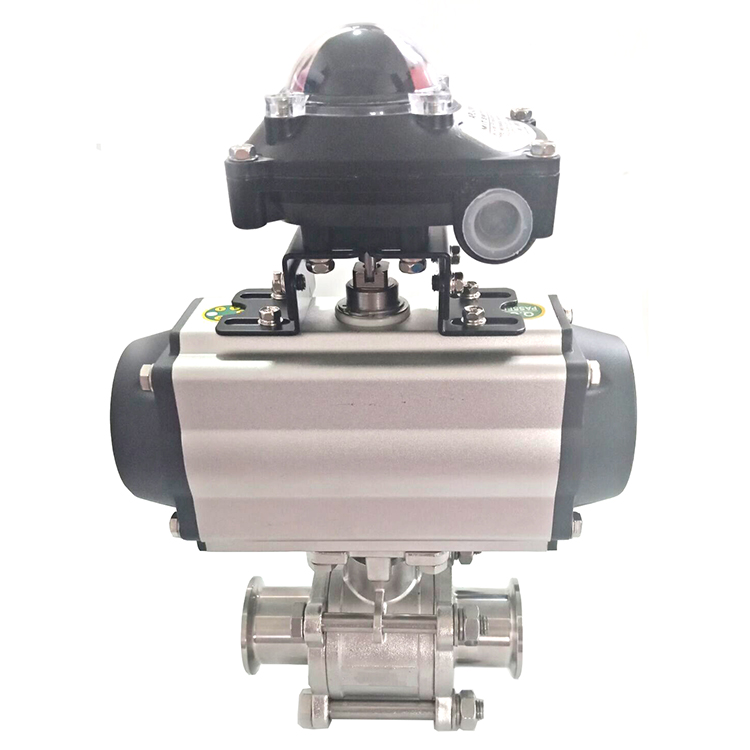

Pneumatic sanitary stainless steel 3pc ball valve has stainless steel pneumatic actuator.
Standard:
Gasket:
Size:
Power:
Quantity:
  • Sunthai
  • SS304/SS316L

Automatically Controlled Sanitary Ball Valve With SS Actuator

Details:

Valve body: SS316L, SS304, 1.4401, 1.4404
Connection:Tri Clamped, Welded, Threaded
Max pressure:1000 PSI/WOG
Standard:DIN, SMS, ISO, IDF, BPE
Size:1/2″ – 4″/DN15-DN100
Temperature range (PTFE):-20F to 350F

The pneumatic 3-Piece Clamp Ball Valves are used in pharmaceutic,food and beverage, chemical industries, and etc.


Features:

  • PTFE steam seats available for high temperature applications.

  • Cavity Filled seat

  • 100% air tested under water at 80-100 psi

  • With lock on handle,ISO 5211 Mounting Pad

  • Full Port


Options:
I. Pneumatic/Electrical Actuator
II. Solenoid Valve
III. Limit Switch Box
IV. Positioner
