Double TC Rotating CIP Spray Ball

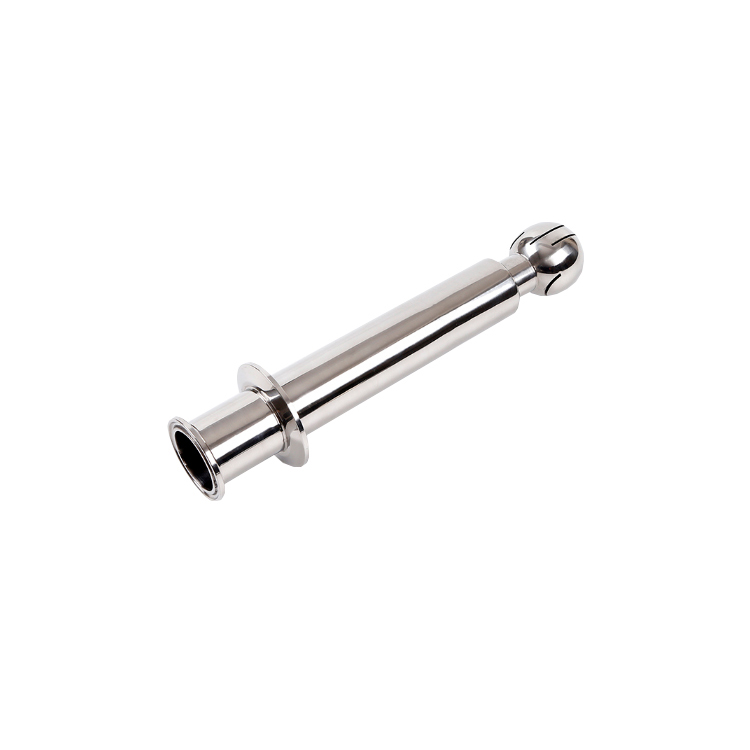

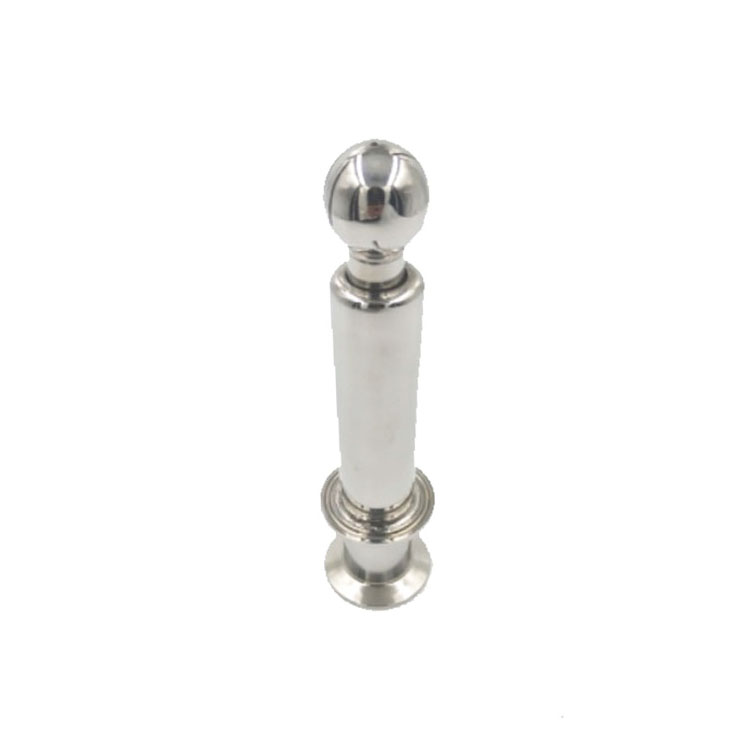

Rotating CIP Spray Ball Double TC-Rotating CIP Spray Ball 1.5″ Tri Clover Compatible tri clamp Inlet, welded in a 3″ Tri Clover Compatible Tri Clamp Cap.
Features:
Size:1.5″x2″ and 1.5″x2.5″,1.5″x3″

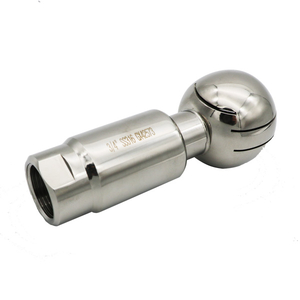

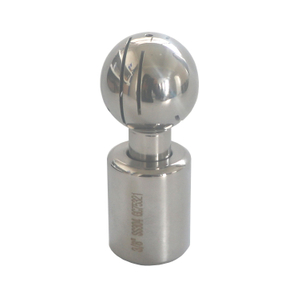

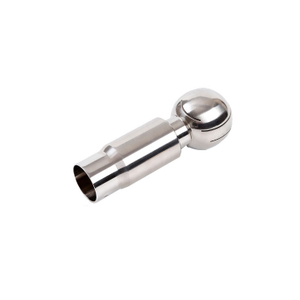

Connections:Welded,bolted with pin,clamped,threaded(NPT,BSP)
SS grade:SS304, SS316L
Mirror Polished inside and Satin finished outside to meet food requirements
Norms:DIN,SMS,3A,ISO
Working pressure:1-3Bar
Max.working temperature:95℃
Max.ambient temperature:140℃
Moist radius:max.3meter
Inject cleaning radius:max.effective radius 2M
We have three series of Sanitary Stainless Steel Cleaning Balls:
1.Static tank CIP cleaning ball: 360 degree spray completely, 180 degree,90 Deg upside or downside,the head can be round or flat
2.Rotary Spray head: the ball head shape can be sphere and elliptical.
3.Rotary cleaner: multi-position spray type. When working, it’s rotating jet spray.
Working method of the Rotating CIP Spray Ball Double TC:
◎The liquid applied to the upper part of the tank is running down the tank walls like a falling film.
◎The dirt particles dissolved by the detergent are rinsed off by the falling film.
◎Cleaning pre-pressure is between 1,0 – 1,5 bar at the spray ball for tanks without internal installations.
◎Cleaning pre-pressure is between 1,8 – 2,5 bar at the spray ball for tanks with internal installations.
